7 | Automate™ Programming Instructions | ARC™ Venetian Tilt Motor ROLLEASE ACMEDA
3.1 Motor State Test
3 P1 BUTTON FUNCTIONS
Hold P1
Activate Pairing
Mode
Motor Response
Approx.
Approx.
P1
Press
Condition Function Achieved
Visual
Feedback
Audible
Feedback
Function Described
Short
Press
then
Release
(<2 sec)
If limit is NOT set None No Action None No Action
If limits are set
Operational control
of motor, run to
limit. Stop if running
Motor runs None
Operational control
of motor after pairing
and limit setting is
completed first time
If motor is in
“Sleep Mode” &
limits are set
(Refer to Sec.10)
Wake and control
Motor
wakes and
runs in a
direction
None
Motor is restored from
Sleep mode and RF
control is active
This table describes the function of a short P1 button press/release(<2 seconds) depending on current motor
configuration.
3.2 Motor Configuration Options
The P1 Button is utilized to administer motor configuration as described below and beginning in Section 4.

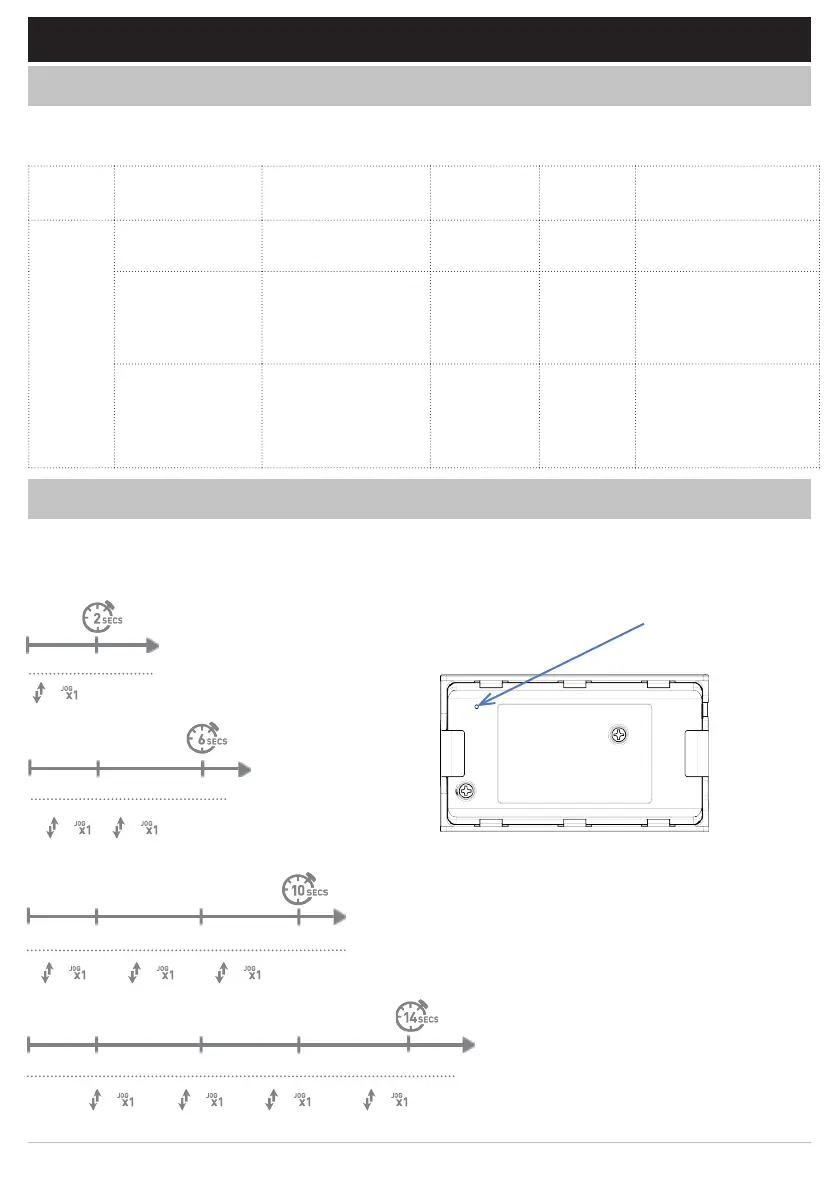

Sleep Mode
Approx.
Motor Response
Reverse
Direction
P1
Motor Response
Motor Response
RELEASE P1
RELEASE P1
RELEASE P1
Settings
Approx.
Reset To Factory
