RollSeal SW 100 User Manual

Part No. 4801-5329 Rev 3-09 SW 100 Sidewall Curtain System Page 11
WHITE
Conduit to Controller
WHITE

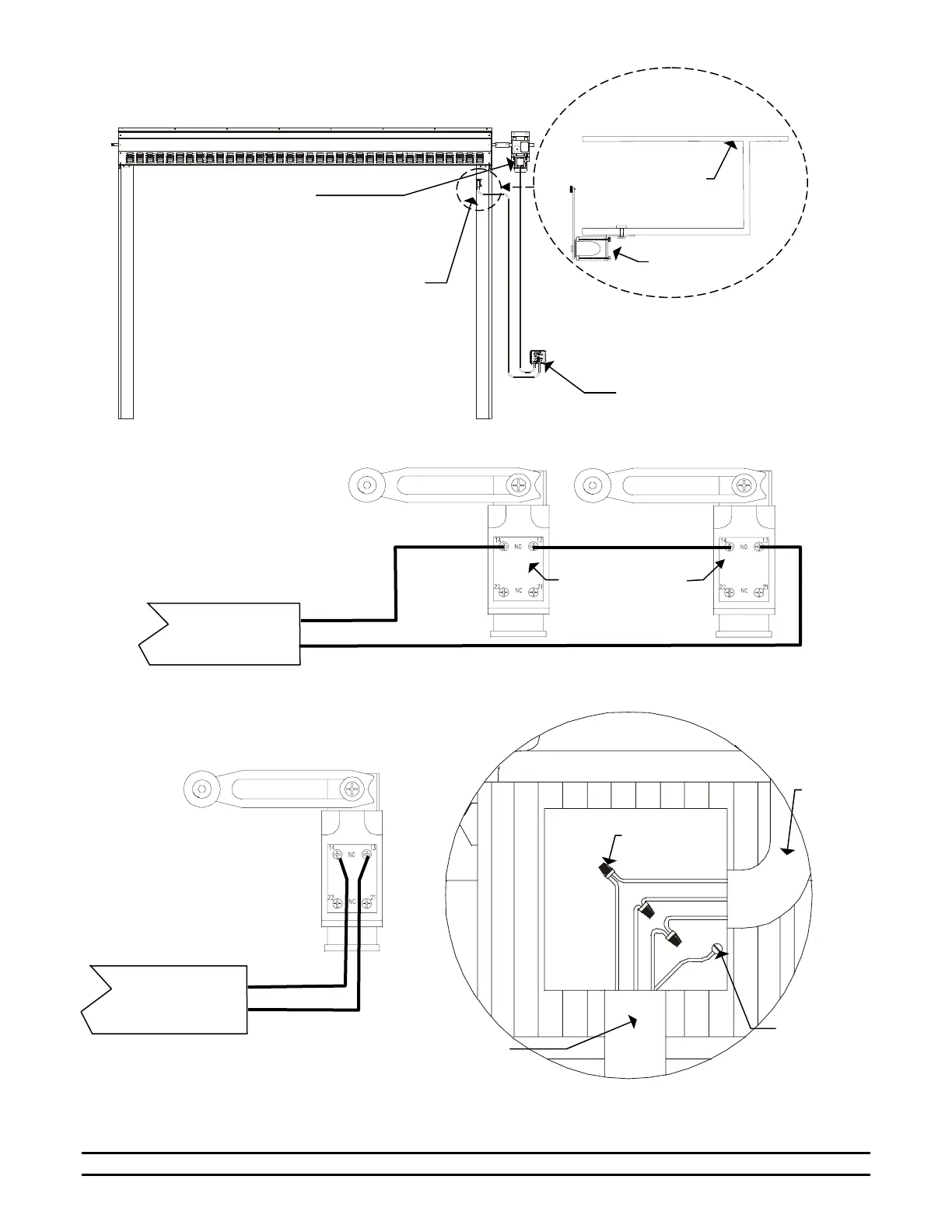

Single Safety Switch Wiring Diagram
Figure 10 – SW 100 Door Wiring Diagram
WHITE
Conduit to Controller
WHITE
Double Safety Switch Wiring Diagram
Single Safety Switch Mounting
(View from top of track)
8. Wiring Diagram
Control Box
(See Diagram Next Page)
Safety Switch
(See Diagrams Below
and Right)
Motor Junction Bo
x
(See Diagram
Below)
Motor Junction Box Wiring Diagram
BLACK
WHITE
RED
BLACK
WHITE
RED
Connect green
wire to ground
lug on motor
Conduit to
Controlle
r
Conduit from
Limit Switches
Wire Nut
GREEN
Safety Switch
Track
Safety Switches
on doors driven
by the same
motor
