Part No. 4801-5329 Rev 3-09 SW 100 Sidewall Curtain System Page 6
6. Drive Configuration Examples

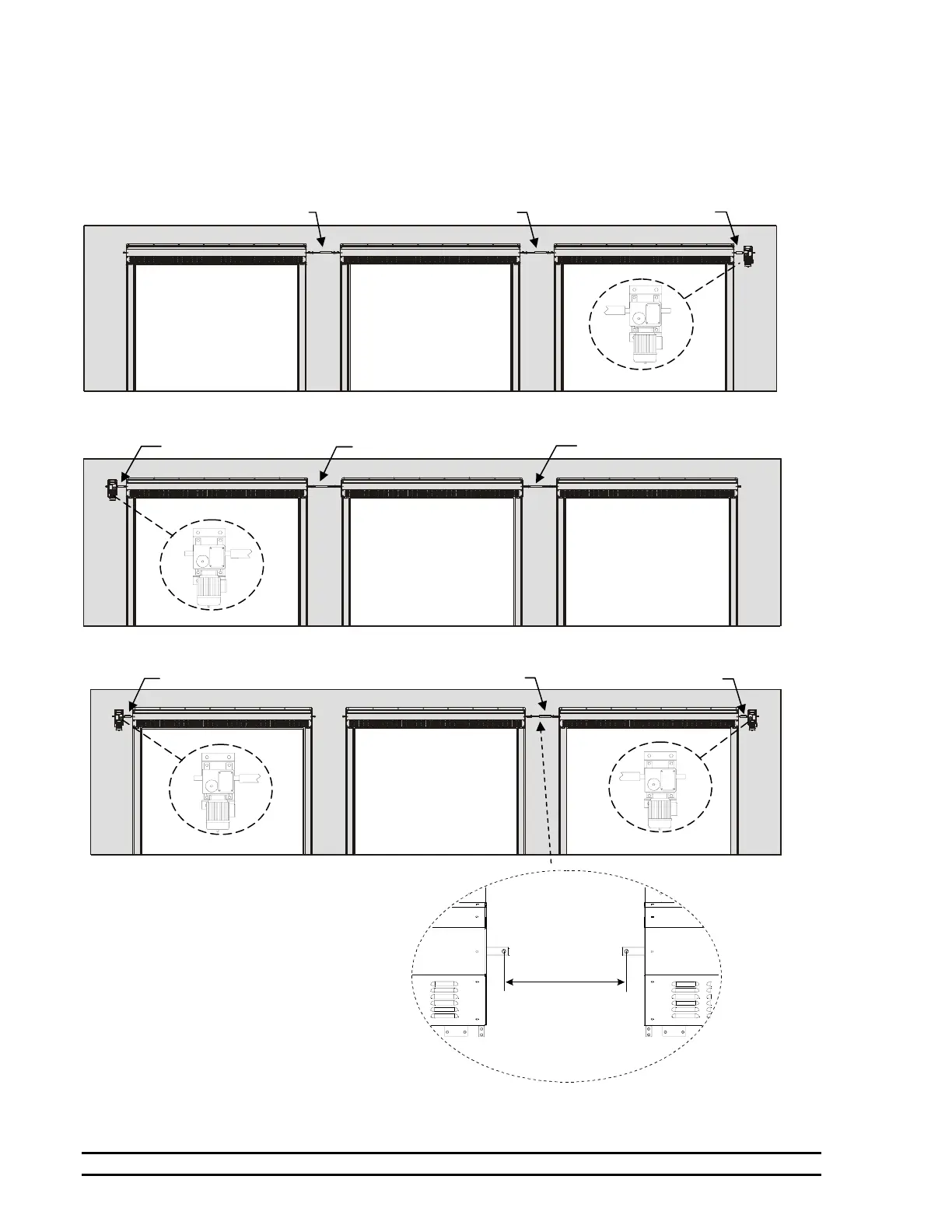

Shown below are some examples of drive configurations that are available by utilizing a single motor drive and
telescoping couplings. Example 1 shows three doors being driven from a single right mounted motor drive. A
maximum of three doors can be driven from a single motor. Example 2 uses a left mounted motor to drive all three
doors. In Example 3, the left door operates independently from the middle and right doors, which operate together
from a single drive.
Motor Drive Example 2 - All three doors driven from single Left Mounted Drive
Motor Coupling
Telescoping Coupling
Telescoping Coupling
Motor Drive Example 3 - Left Mount drives single Door, Right Mount drives two doors.
Motor Coupling
Telescoping Coupling
Motor Coupling
Motor Drive Example 1 - All three doors driven from single Right Mounted Drive
Motor Coupling
Telescoping Coupling
Telescoping Coupling
The distance
between the
two holes in the
shafts must be
between 23
and 28 inches
for a standard
coupling.
! CAUTION !
If the Telescopic Shaft is too
short, DO NOT MODIFY THE
SHAFT.
This will cause unsafe
operation. Use the 0411-
10550 Shaft Extender.
