Part No. 4801-5329 Rev 3-09 SW 100 Sidewall Curtain System Page 12
From Track Mounted
Safet
Switch
BLACK
RED
WHITE
GREEN
WHITE
WHITE
From Motor
Junction Box
Input Power

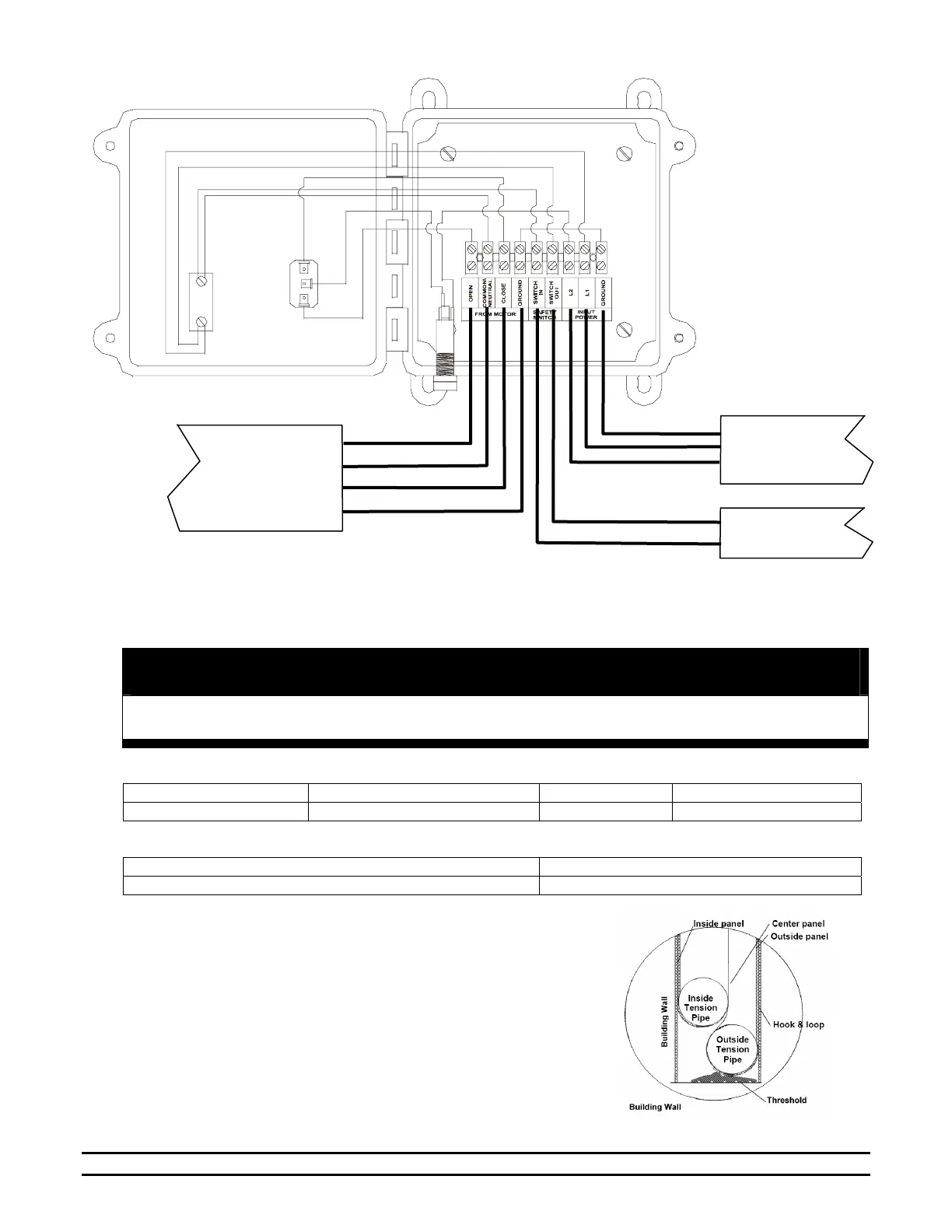

Controller Wiring Diagram
9. SEALEASE Threshold Installation instructions
Tools Required
Tape Measure Utility Knife Pencil Grease Pencil (white)
Cordlless Drill w/Clutch Tapcon Concrete Drill Bit Hammer Drill
Materials Provided
Rubber Threshold (100') rolls Bostic Chem Caulk
¼" x 2 ¼" Tapcon Phillips Flat Head Concrete Anchors 3/16" x 4 ½" Tapcon Concrete Drill Bit
1. With RollSeal door open, center threshold between the door track.
Trim to length with utility knife. The “hump” side should be on the
inside of the door. See Detail A.
2. Lower the door on top of the threshold’s 2-inch levelstrip. Push the 45°
hump against the back of the bottom of the door.
3. With the pencil, mark the inside edge of the threshold on the floor the
full length of the threshold. (Form one door jamb to the other.)
4. Carefully raise the door (without moving the threshold) and mark the
outside edge of the threshold along the length of the door.
CAUTION!
Install Threshold only on clean, dry surfaces.
Detail A
