- Gradient Alarm: The module sends a notification of exceeding the specified gradient (change rate)
of the temperature outside the specified value defined in the field .... [° C / min].

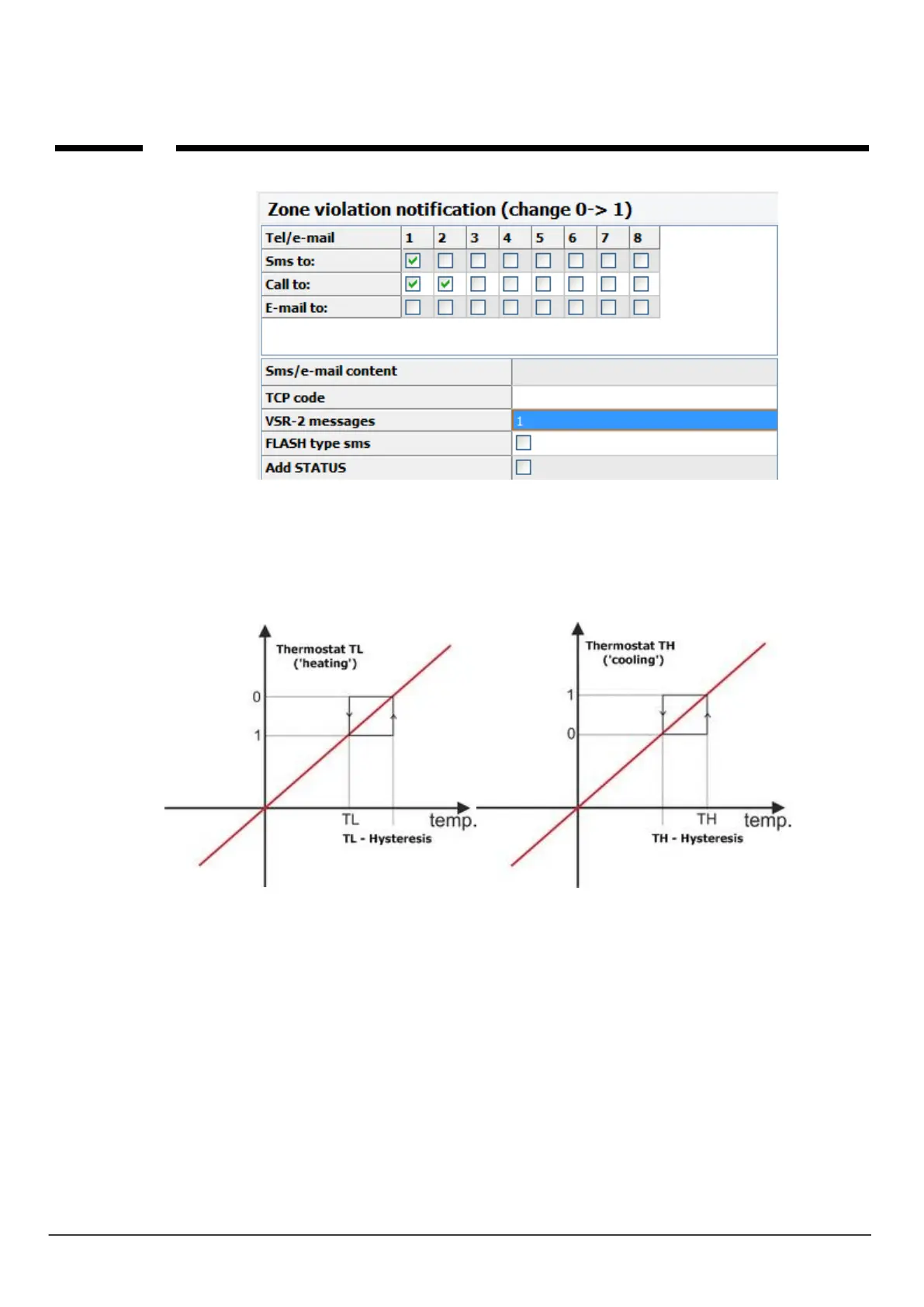

- Hysteresis: Temperature difference for lower and upper switching thresholds.
Example: if the setpoint a = 30 [ºC] and b = 20 [ºC] and the hysteresis is set to 2 [ºC], the module
switches on when the temperature falls below 18 [ºC] and switches off the heat when the temperature
rises above 32 [° C].
COMMENTS:
The "Thermostat" control must be based on the functions available in "LogicProcessor".
- Temperature sensor failure: Notification of failure / defect of the temperature sensor sent to the
system user. Possible notification options: Same as for alarms over temperature.
- Memory save value interval: time period between recording of subsequent temperature values to
event memory in the module. Minimum time: 1 [min], max interval: 1440 [min]
Example in LogicProcessor:
The application allows the module to switch on when the temperature rises above 28 ° C. It switches
off when the temperature falls below 15 ° C. C.
TSR-xx sensor is connected to T1 input, output O4 controls pump via RM85 relay.
