Page 14

Installation and commissioning

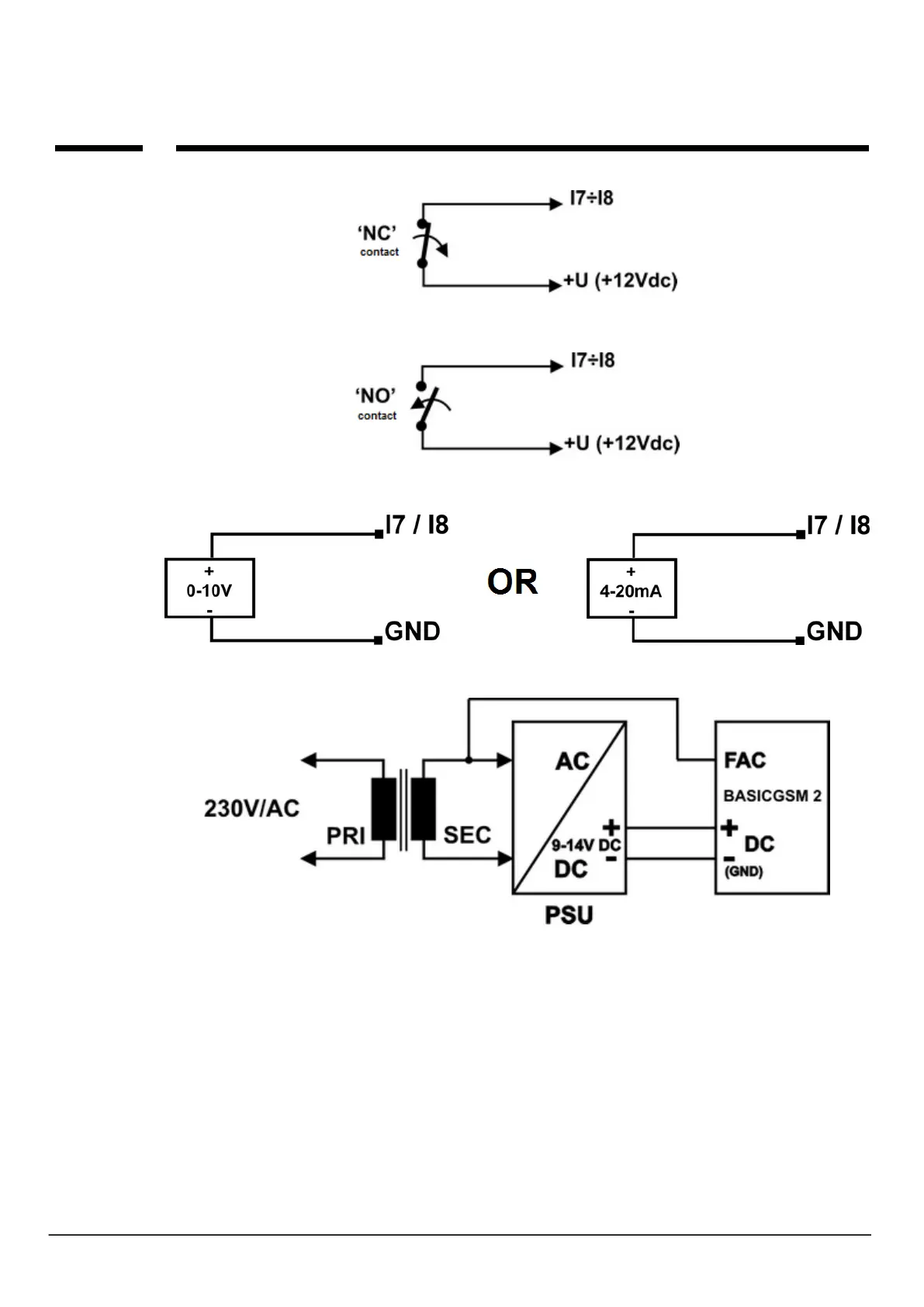

Input (I7, I8) in the configuration NC, software configurable (BasicGSM Manager).

Input (I7, I8) in the configuration: NO, configurable software (BasicGSM Manager).

Input I7 / I8 to connect a voltage or current source.

FAC input for AC voltage control (on isolation transformer).

Connecting devices to the outputs.

The module has outputs allowing control and signaling.

O1 - relay output - 1A @ 30VDC
