Program logic:

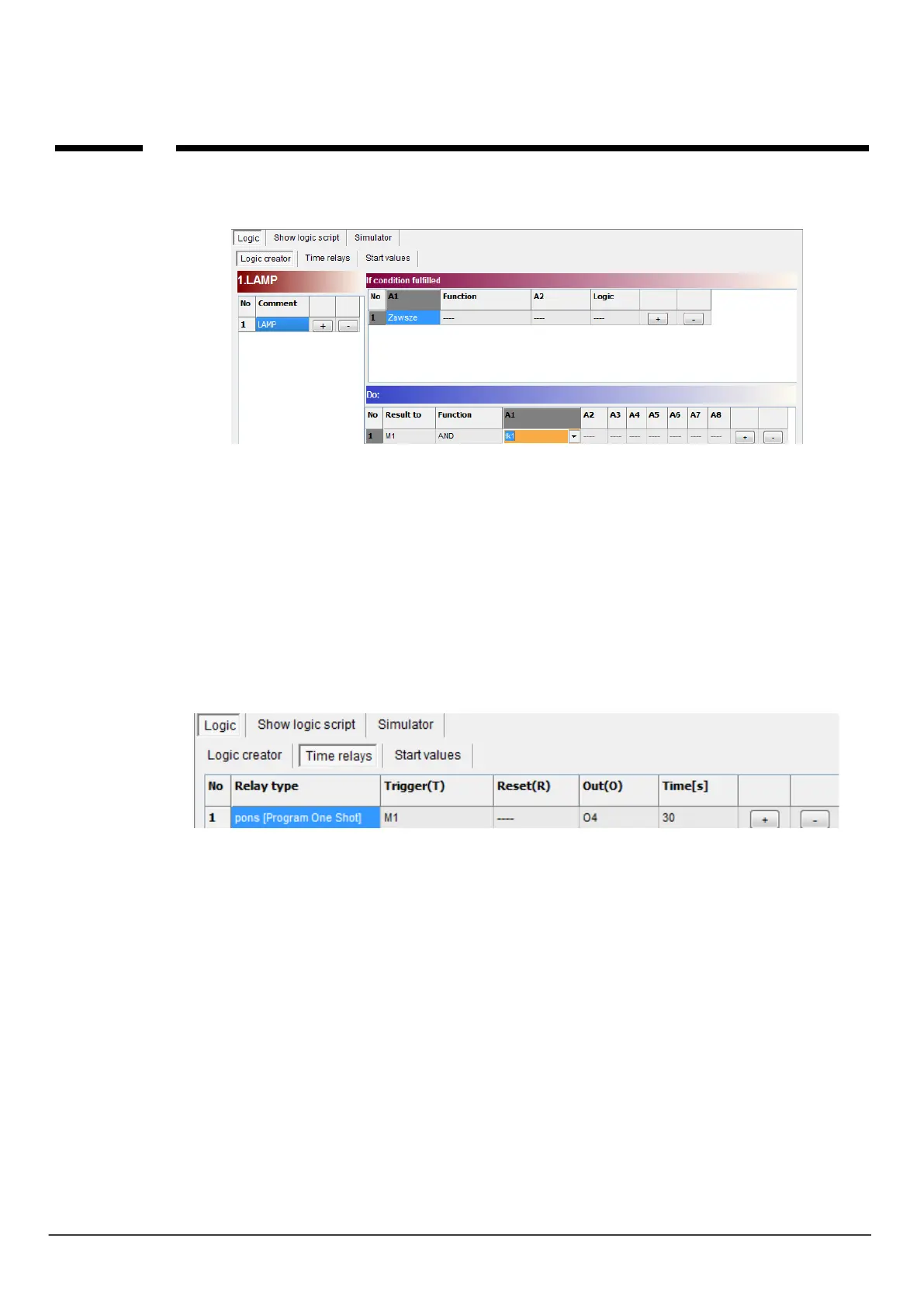

Description of logic operation in module LogicProcessor:
The variable M1 is set, it takes a value to 1 only when timer 1 is started (variable Tk1 = 1).and the
input will be violated (I1 = 1). Variable M1 triggers a time relay PONS for the duration30s.
Relay as output has indicated O4 (gives GND at startup) which controls relay will turn on the light. The
relay coil of RM85 must be connected to the output AUX and O4 output.
Relay timer settings witch generates a pulse of a predetermined time (PONS one shot
program).
