3.5 Adjusting the saddle angle

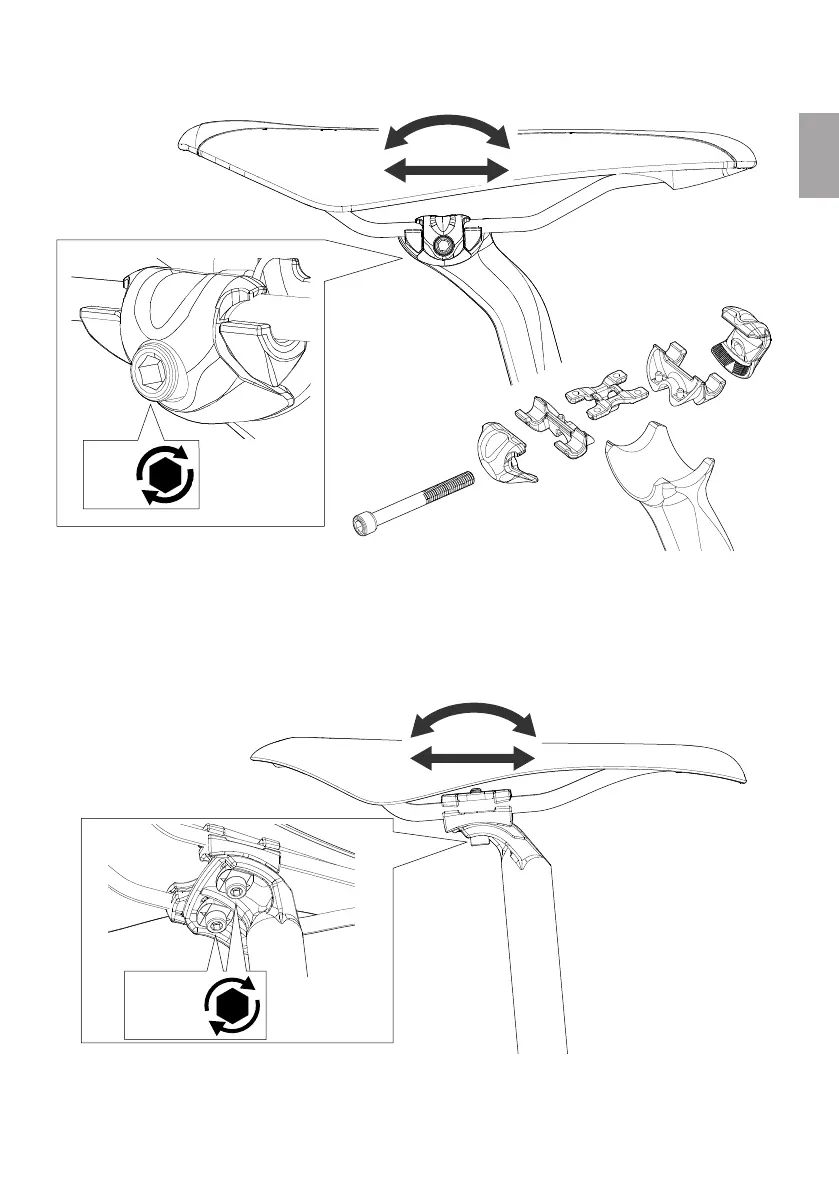

Adjusting the saddle angle on a saddle with one bolt clamp
5
12 Nm
1. Loosen the clamp bolt by about 2 turns. ATTENTION: Do not unscrew the clamping screw completely!
2. Adjust the position and angle of the saddle according to your preferences.
3. Tighten the clamp bolt to a torque of 12 Nm.
Adjusting the saddle angle on a saddle with two bolt clamps
1. Loosen both clamping bolts.
2. Adjust the position and angle of the saddle according to your preferences.
3. Tighten the clamp bolts to a torque of 9 to 10 Nm.
5
9 - 10 Nm
