3.6 Mounting the luggage racks or mudguards
1
2
2
3
4
3
3
PROD. CODE 2294174
Luggage carrier / mudguard on the rear wheel

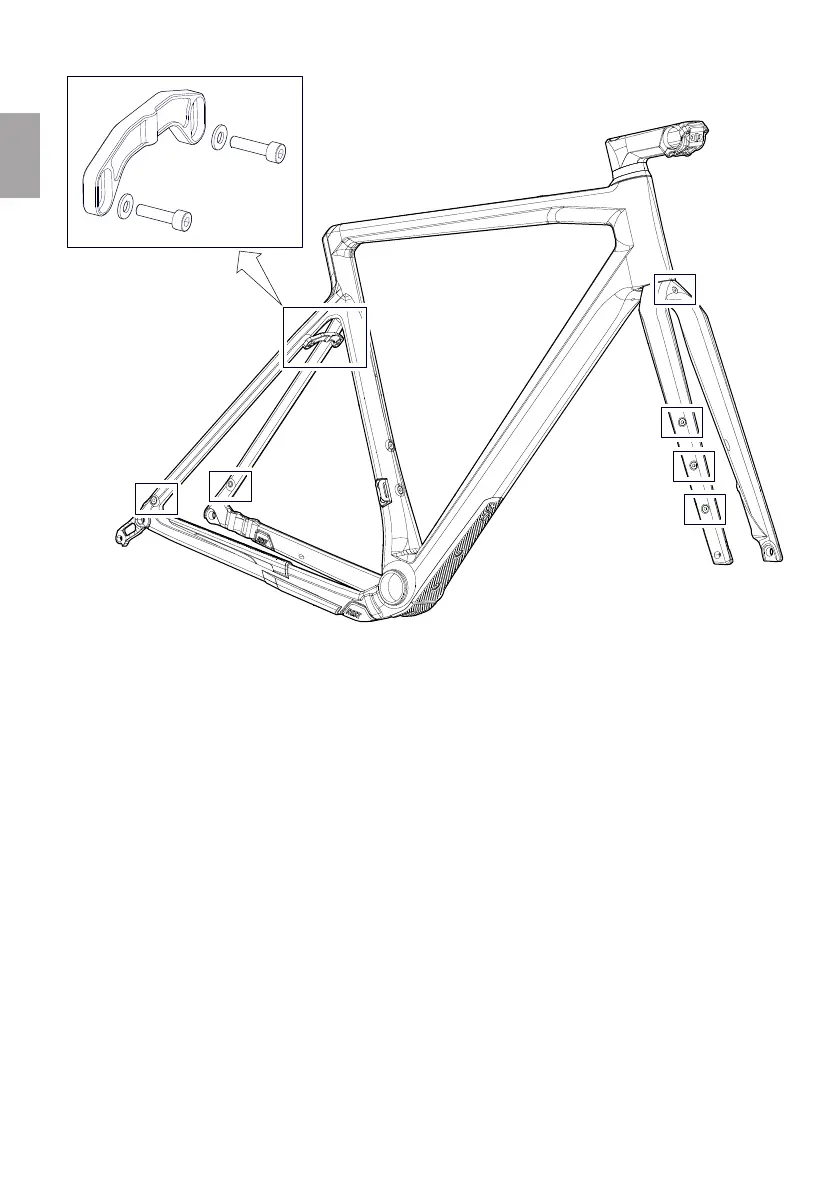

The frame of the ROSE gravel bikes has eyelets on the dropouts (2) to which a luggage rack or a mudguard can be
attached. A seat stay bridge (1) can be mounted to allow the addition of a luggage rack or mudguard on the seat
stays. The seat stay bridge is not included in the scope of delivery for bicycles that are delivered without mudguards
/ luggage racks.
The maximum load of the luggage carrier on the rear wheel must not exceed 8 kg per side!
The screws in the threaded eyelets may be tightened with a maximum torque of 2 Nm.
Luggage carrier / mudguard on the front wheel
A mudguard and/or luggage rack can be attached via the threaded eyelets on the fork (3, 4). No lowrider may be
mounted! We recommend mounting the ROSE Gravel Cage (prod. code: 2300339).
The maximum load on the fork must not exceed 3 kg per side.
The screws in the threaded eyelets may be tightened with a maximum torque of 2 Nm.
