Rosemount 8732 Series User Manual

Quick Installation Guide
00825-0100-4725, Rev BA
July 2003
Rosemount 8732/8700 Series
pressure.

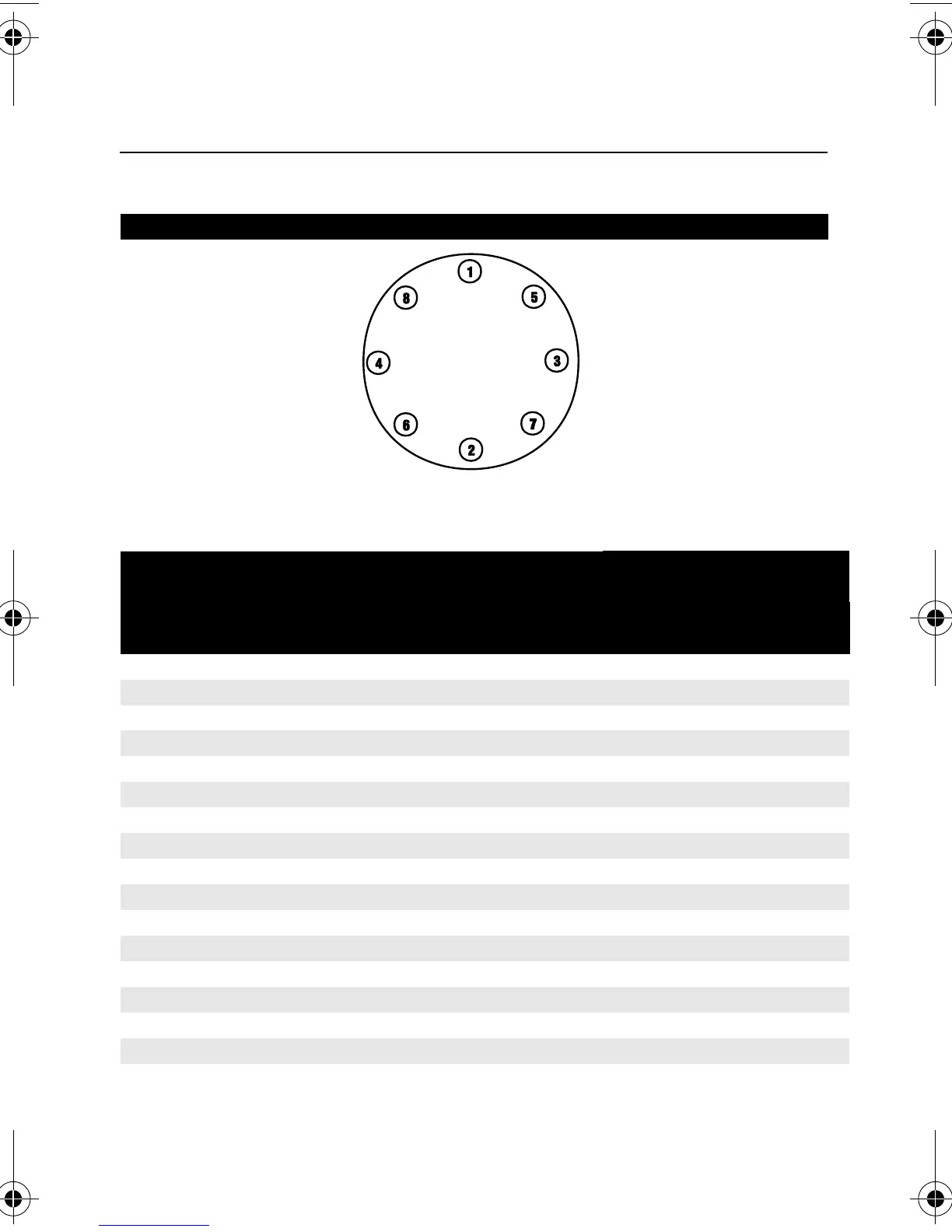

Figure 6. Flange Bolt Torquing Sequence
Table 1. Suggested Flange Bolt Torque Values for
Rosemount 8705 and 8707 High-Signal Flowtubes
Teflon/Tefzel/PFA liners
Polyurethane/Neoprene/
Linatex liner
Size
Code
Line Size
Class 150
(pound-feet)
Class 300
(pound-feet)
Class 150
(pound-feet)
Class 300
(pound-feet)
005
1
/2-inch (15 mm) 8 8 - -
010 1 inch (25 mm) 8 12 - -
015 1
1
/2 inch (40 mm) 13 25 7 18
020 2 inch (50 mm) 19 17 14 11
030 3 inch (80 mm) 34 35 23 23
040 4 inch (100 mm) 26 50 17 32
060 6 inch (150mm) 45 50 30 37
080 8 inch (200 mm) 60 82 42 55
100 10 inch (250 mm) 55 80 40 70
120 12 inch (300 mm) 65 125 55 105
140 14 inch (350 mm) 85 110 70 95
160 16 inch (400 mm) 85 160 65 140
180 18 inch (450 mm) 120 170 95 150
200 20 inch (500 mm) 110 175 90 150
240 24 inch (600 mm) 165 280 140 250
300 30 inch (750 mm) 195 415 165 375
360 36 inch (900 mm) 280 575 245 525
8742f_01a.eps
8-bolt
4725_revBA_qig.fm Page 11 Thursday, July 3, 2003 12:47 PM

Rosemount 8732 Series Specifications

General

Category	Measuring Instruments
Diagnostics	Yes
Measurement Type	Volumetric Flow
Output	4-20 mA, HART
Enclosure Rating	NEMA 4X, IP66
Communication Protocol	HART, FOUNDATION Fieldbus, Modbus
Product Type	Transmitter
Enclosure	Stainless Steel
Process Connection	Flanged
Material	Stainless Steel
Certifications	ATEX, IECEx, CSA, FM
Power Supply	11 to 42.4 VDC
Flow Range	0.04 to 12 m/s (0.13 to 39 ft/s)
