AC-225x-B Panel Setup

14 AC-225x-B Series Hardware Installation and User Manual

3.1 Inputs Wiring – Non-Supervised Inputs

Figure 3 presents a detailed view of the non-supervised inputs and their

connection options.

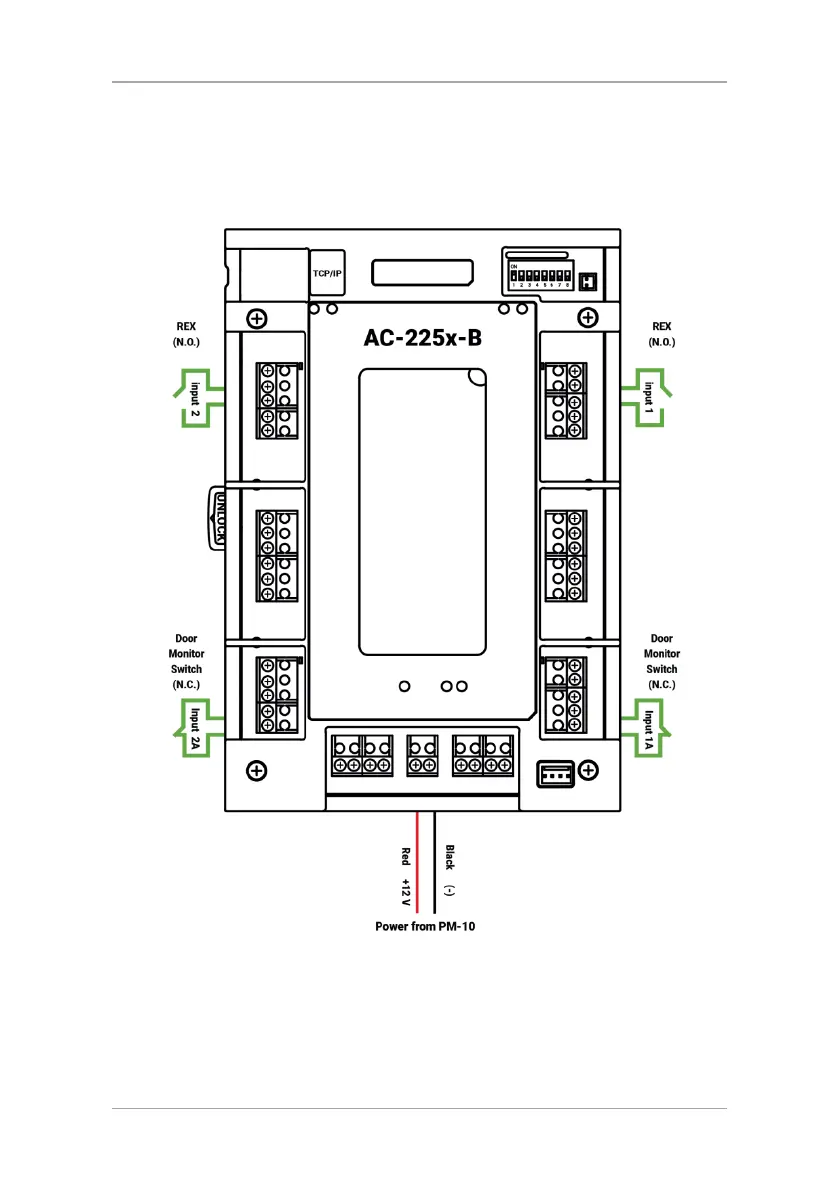

Figure 3: Inputs Wiring – Non-supervised Inputs

3.2 Inputs Wiring – Supervised Inputs

When wiring the AC-225x for supervised inputs, resistors should be placed on the

input switch and not on the terminal block.

For further details, see Chapter 4.
