AC-225x-B Panel Setup

AC-225x-B Series Hardware Installation and User Manual 15

3.3 Outputs Wiring

Figure 4 and Figure 5 illustrate wiring for two main types of 12 VDC electrical

release mechanisms. Other electrical devices can be switched using the voltage

free relay contacts.

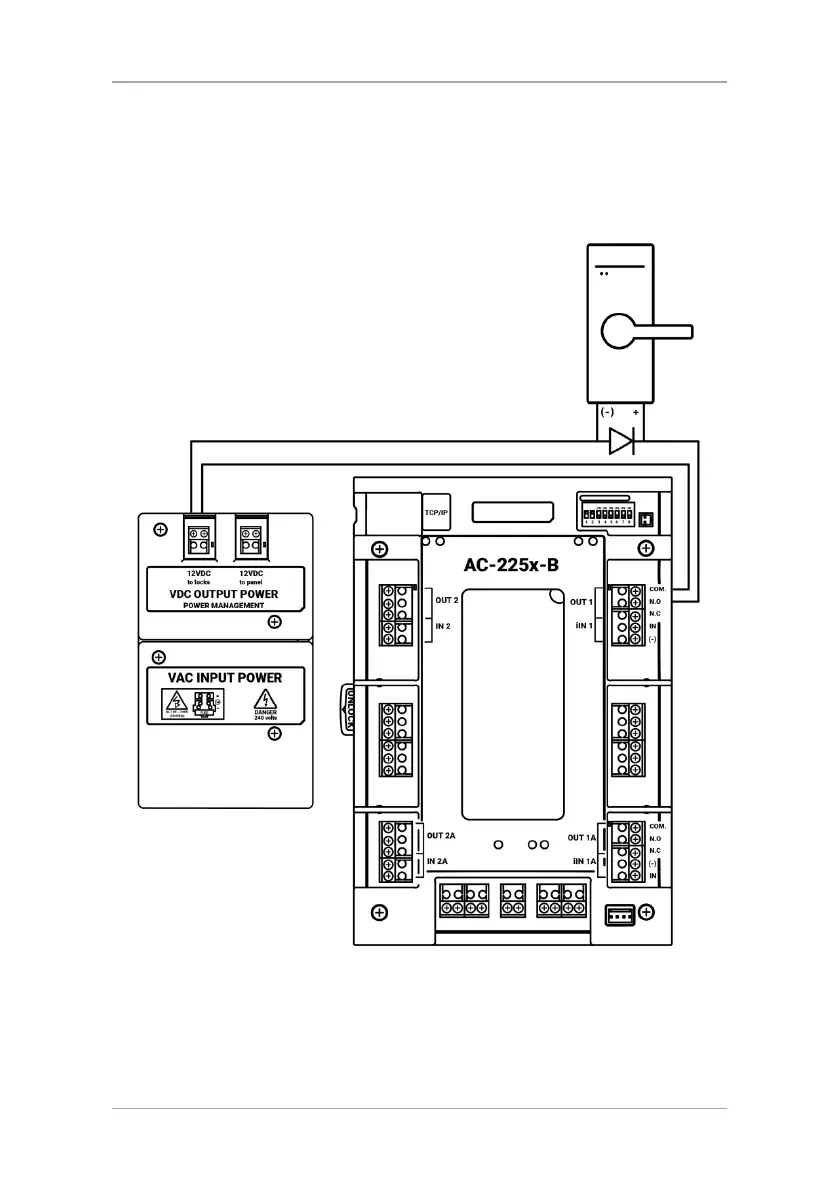

Figure 4: Door Lock – Failed Close
