AC-225x-B Panel Setup

18 AC-225x-B Series Hardware Installation and User Manual

3.5 AC-225x-B Wiring Communications

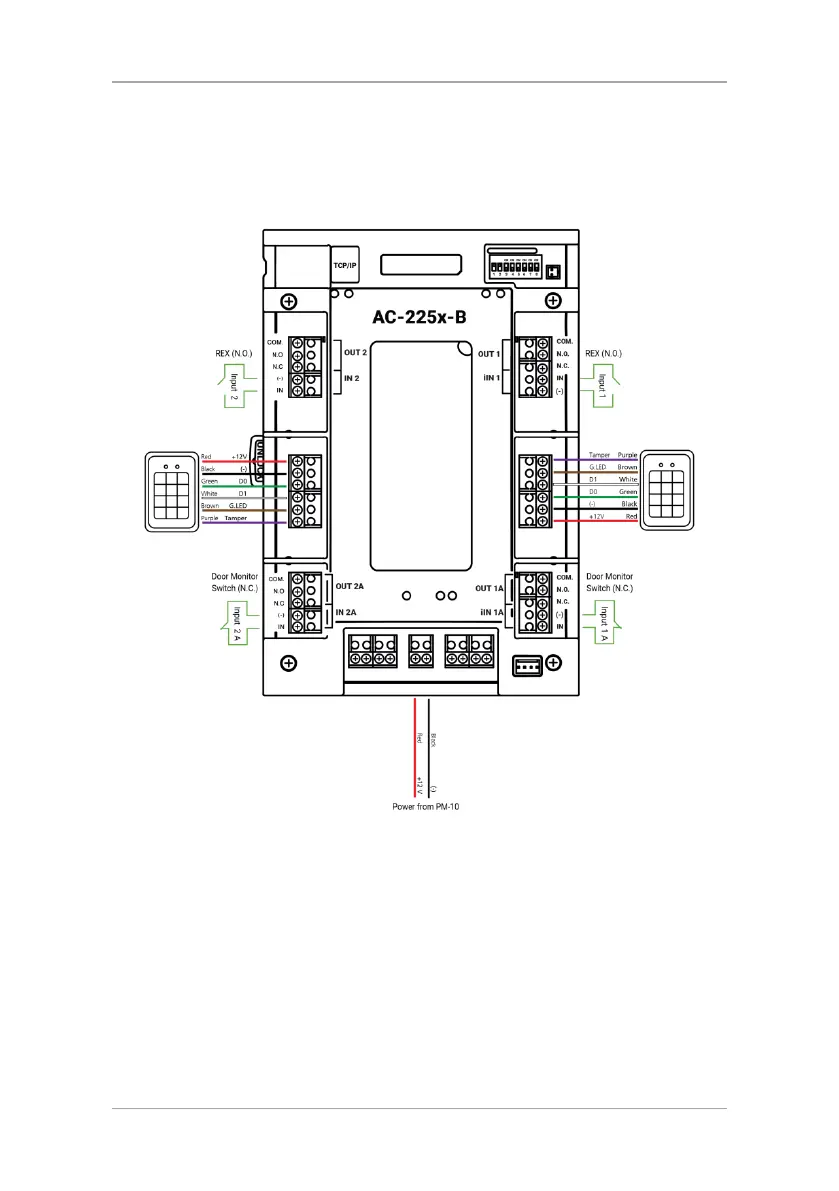

Figure 7 presents a detailed view of the access control panel with all it wiring

communications.

Figure 7: AC-225x-B Wiring Communications
