AC-225x-B Panel Setup

AC-225x-B Series Hardware Installation and User Manual 17

3.4 Power Supply

Figure 6 illustrates wiring between the PM-10 power management board and the

AC-225x-B. Make sure the connection polarity is correct, (+) to (+) and (-) to (-).

Connect the power to the input power terminals of the control panel. It is

recommended to add a 12 VDC lead acid backup battery (requires the ME-1015

Power Management Enclosure) to have uninterrupted operation in case main

power supply fails. A 12 V, 7 AH battery provides 3 hours of backup operation.

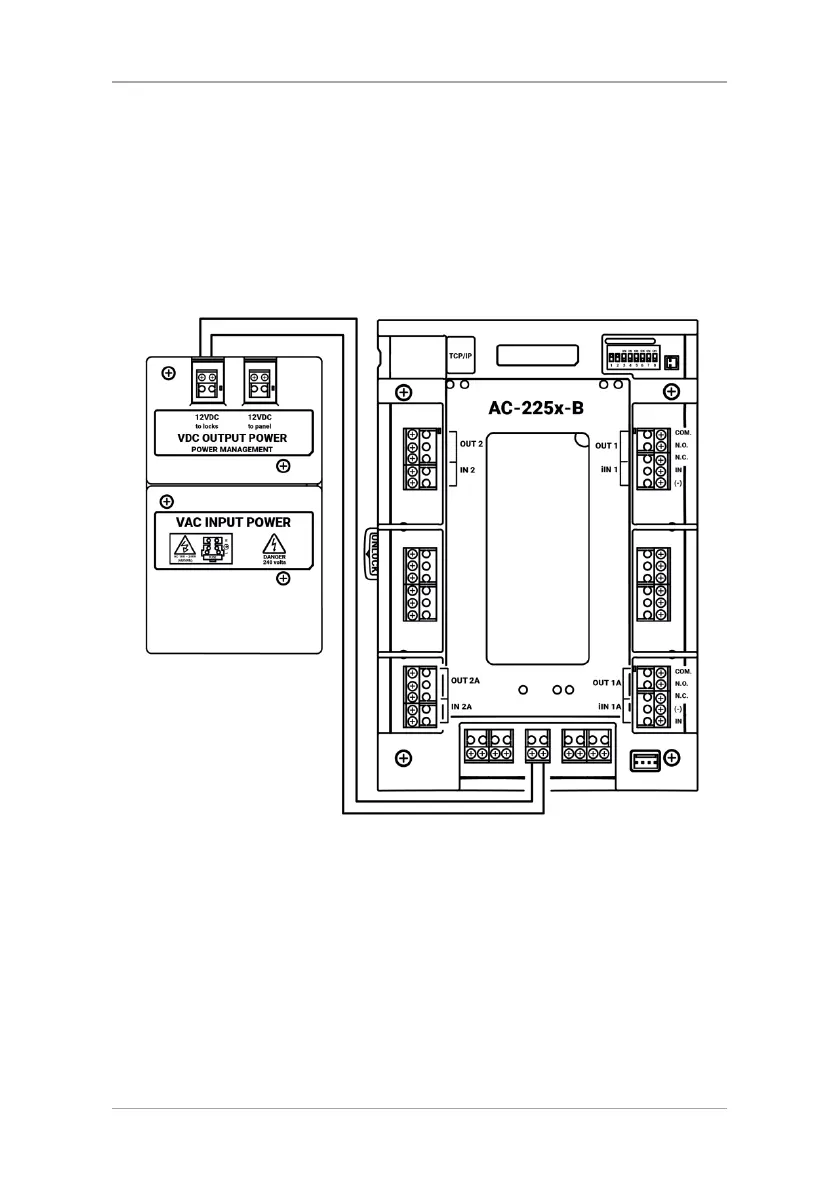

Figure 6: Wiring Between PM-10 and AC-225x-B
