Installation
AYC-Qx4 family manual Page 10
3. Installation
3.1 Mounting the AYC-Qx4
Before starting, select the location to mount the AYC-Qx4. This
location should be at shoulder height. Drill holes into the back of
the unit according to how you want to mount the AYC-Qx4. For US
Gang Box installation, there are two-hole indicators on the back
of the metal cover specifically aligned for the US Gang Box (A, in
diagram below). For a four screw custom installation, there are
four indicators on the back (B in diagram below).

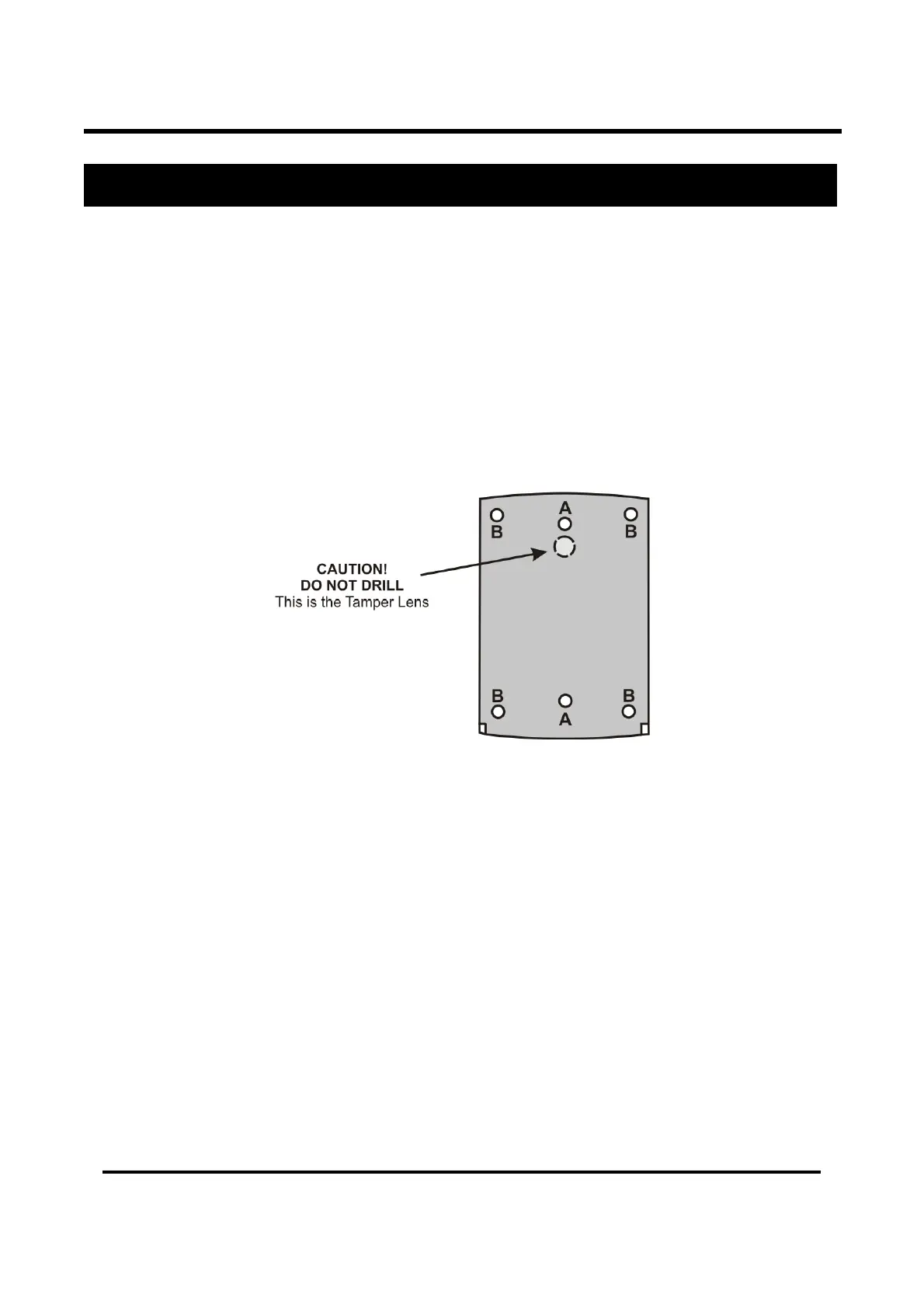

Figure 1 Drilling mounting holes
When the unit is used a reader, route the interface cable from the
AYC-Qx4 to the Controller. When the unit is used as a secured
controller, route the interface cable from the AYC-Qx4 to
Rosslares’ secure application appurtenance.
A linear type power supply is recommended, when using the unit
as a controller.
Screw the AYC-Qx4 back cover to its mounting location.
Return the AYC-Qx4 front cover to the mounted back plate.
Secure the front cover by using the supplied security screw in the
controllers Installation Kit. An L-Shaped tool is provided for use
when tightening the security screw.
