Rotabroach ELEMENT 50 LOW PROFILE 1 - Wiring Diagram

Element 50 Low Profile Manual Original instructions 2019
11

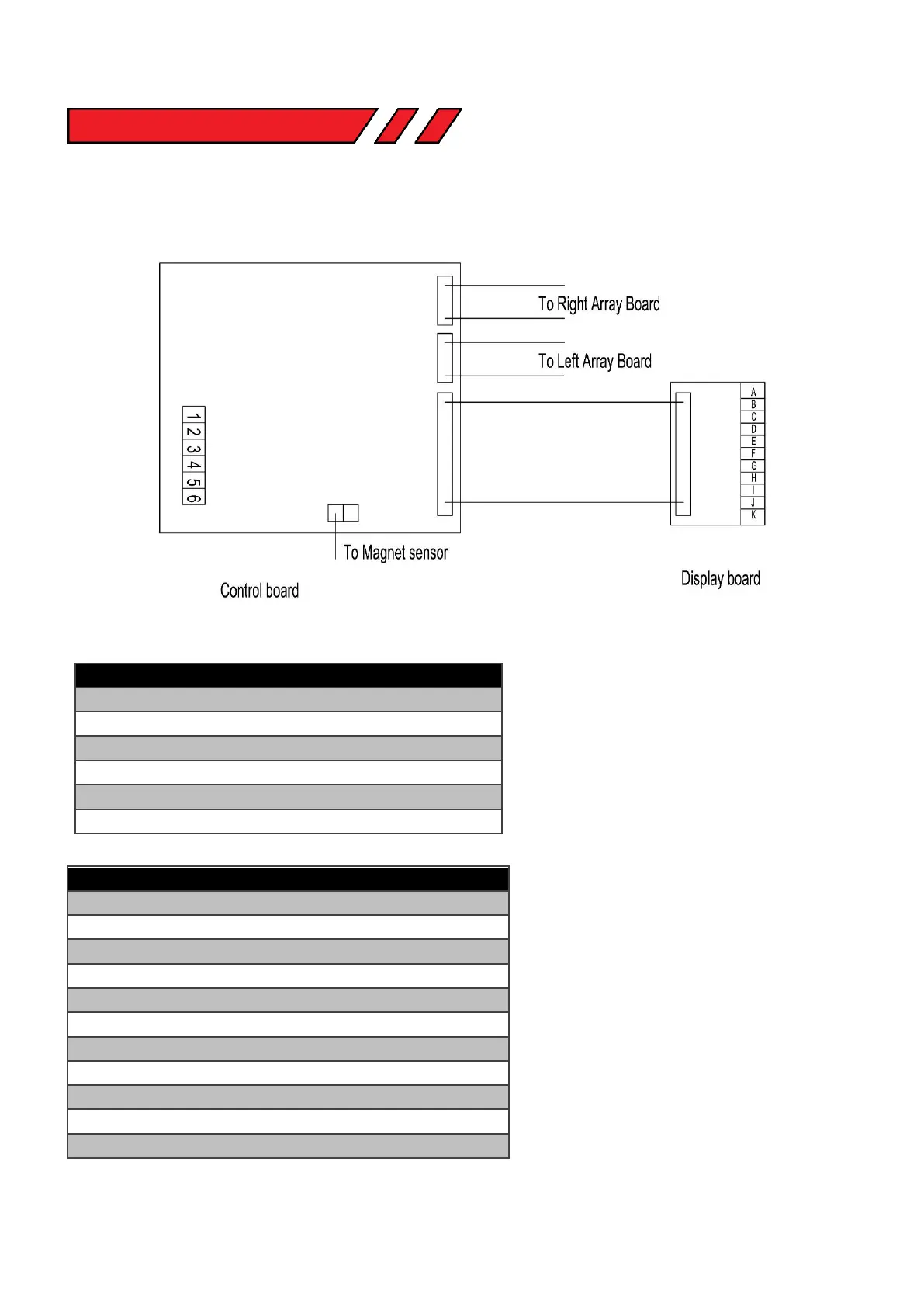

11) WIRING DIAGRAM
No
Function
Wire Colour
A
Motor Switch 0V
White
B
Motor Switch +5V (Green)
White
C
Magnet Switch 0V
White
D
Magnet Switch +5V
White
E
Motor LED +12V
White
F
Motor LED 0V
White
G
Magnet 'ON' LED 0V
White+ Green
H
Magnet 'ON' LED +5 V
White+Brown
I
Magnet 'ON' LED 0V
White+ Red
J
Power 'ON' LED +5V
White+Brown
K
Power 'ON' LED 0V
White+Black
No
Function
Wire Colour
1
Magnet Negative Output
Black
2
Magnet Positive Output
Red
3
Mains Neutral Input
Blue
4
Motor Neutral Output
Red
5
Motor Live Output
Red
6
Mains Live Input
Brown
