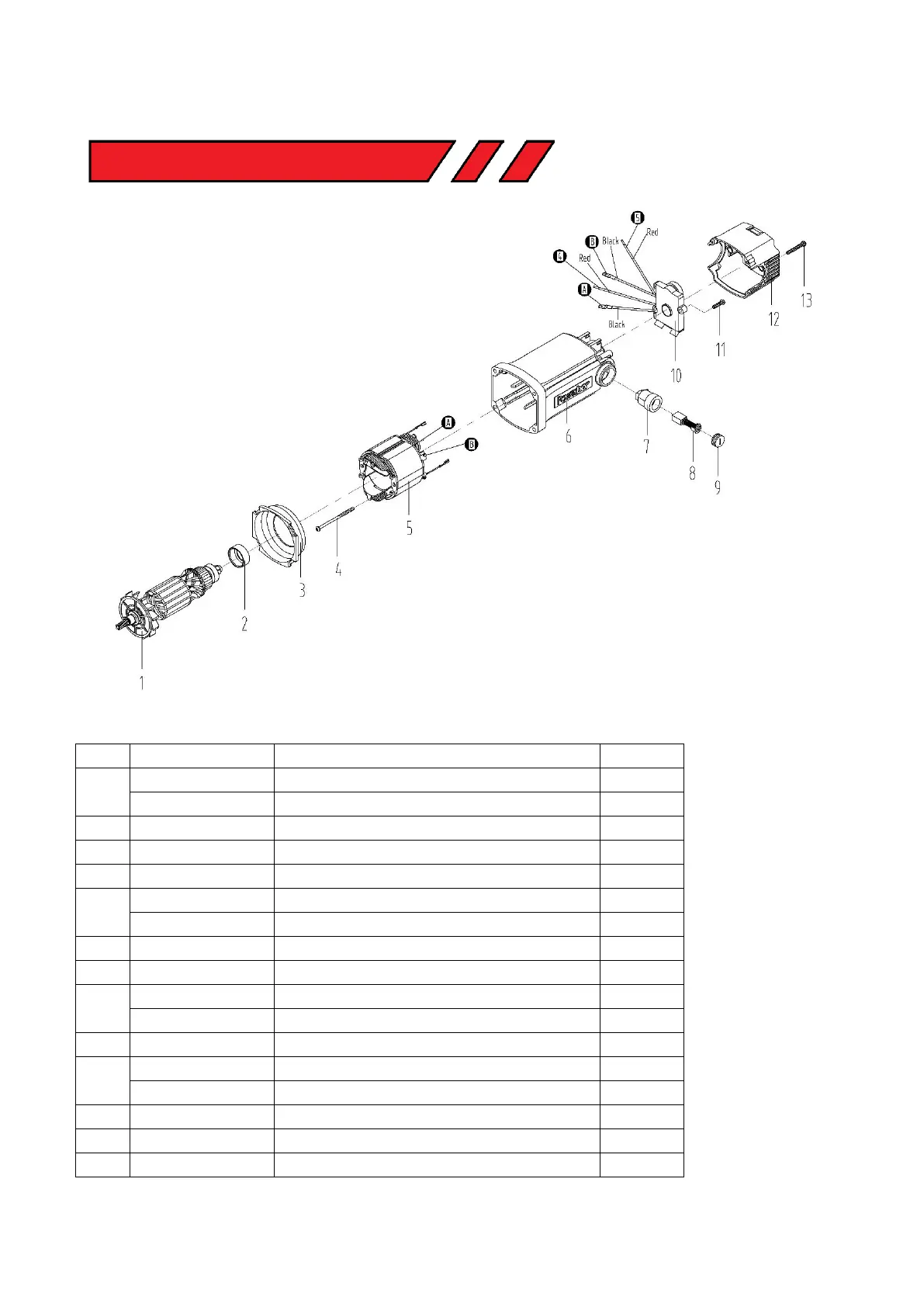

13) MOTOR BREAKDOWN
No.
Part
Description
Qty
1
RDF2021/1
Armature Assembly 110v
1
RDF2021/3
Armature Assembly 230v
1
2
RDF3014
Bearing Sleeve
1
3
RDF3009
Field Coil Baffle
1
4
RDF4038
Field Coil Screws
2
5
RDF2019/1
Field Coil Assembly 110v
1
RDF2019/3
Field Coil Assembly 230v
1
6
RDF3010
Motor Frame
1
7
RDF3011
Brush Holder
2
8
RDF3005/1
Carbon Brush Set 110v
1
RDF3005/3
Carbon Brush Set 230v
1
9
RDF3012
Brush Caps
2
10
RDF2020/1
Speed Controller Assembly 110v
1
RDF2020/3
Speed Controller Assembly 230v
1
11
RDF4040
Speed Controller Screws
2
12
RDF3013
End Cap
1
13
RDF4039
End Cap Screws
2
