Rotary 000 Series User Manual

62

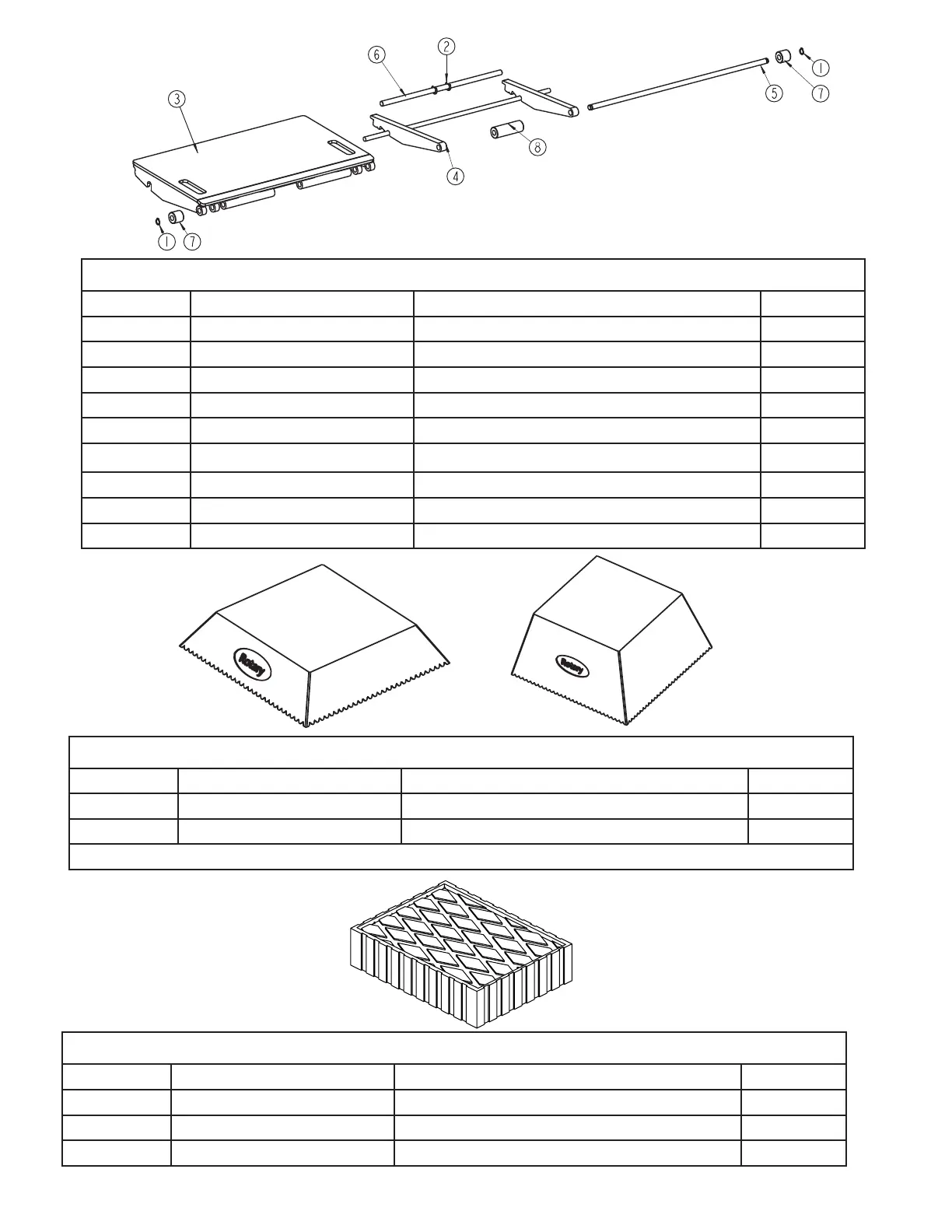

Detail for XX110003 ramp assembly
PartNo. Description Qty
1 B60-14 Circlip Φ14 2
2 B61-12 Circlip Φ12 2
3 XX120007 Ramp weldment 1
4 XX120008 Ramp support weldment 1
5 XX130063 Ramp roller shaft 1
6 XX130064 Ramp roller shaft 1
7 XX130236 Roller 2
8 XX140009 Roller 1
Detail for Rubber pad for DS35EX
PartNo. Description Qty
1 XX140075 30mm rubber pad 4
2 XX140076 70mm rubber pad 4
*For The Middle East and Turkey Market DS35EX use Below rubber pad (FJ2427/2428/SB700071Y)
XX110003
Detail for Rubber pad for DS35
PartNo. Description Qty
1 FJ2427Y 38 mm rubber pad 4
2 FJ2428Y 76 mm rubber pad 4
3 SB700071Y 13 mm rubber pad 4
