4
A. Vehicle frame is strong enough
to support it's weight and has not
been weakened by modification
or corrosion.
B. Vehicle individual axle weight
does not exceed one-half lift
capacity.
C. Adapters are in secure
contact with frame at vehicle
manufacturers recommended lift
points.
D. Vehicle is stable on lift and
neither front nor “tail” heavy.
E. The overhead switch bar will contact
the highest point on the vehicle.

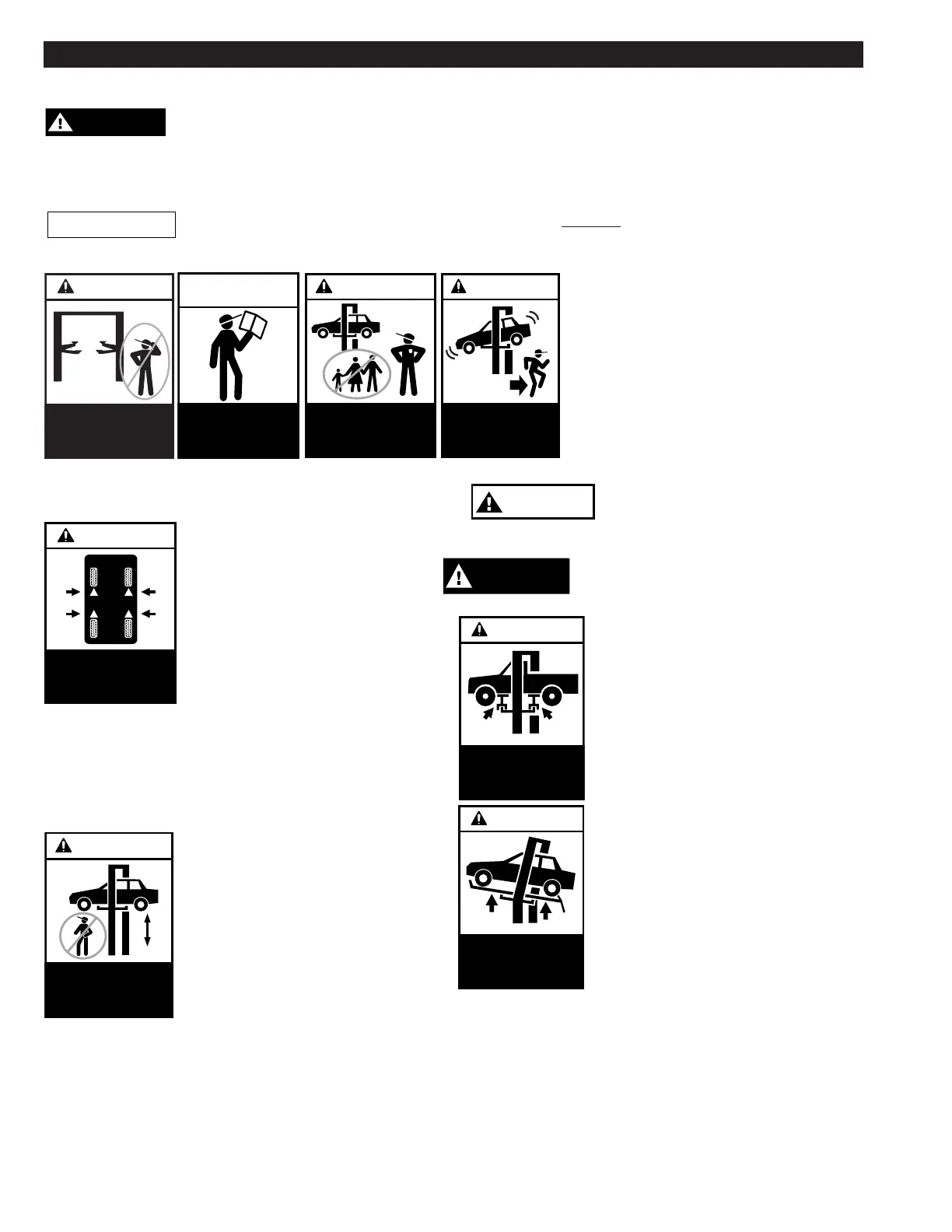

Observe and heed SAFETY, CAUTION, and WARNING labels
on the lift.
1. Lift must be fully lowered and
service bay clear of all personnel
before the vehicle is brought
on lift. Swing arms out to full
drive-thru position.
2. Spot vehicle over lift with left front
wheel in proper spotting dish position,
see "positioning vehicle Fig 1.
3. Loading: Swing arms under vehicle and position
adapters at vehicle manufacturer’s recommended
lift points, Fig. 2. Use optional adapter extensions
for under body clearance when required.
OPERATING INSTRUCTIONS
To avoid personal injury and/or property damage, permit only trained personnel to op-
erate lift. After reviewing these instructions, get familiar
with lift controls by running the lift through a few cycles before loading
vehicle on lift.
Surface Mounted Frame Engaging Lifts
Always lift the vehicle using all four adapters. NEVER raise just one end, one
corner, or one side of vehicle.
Note: Allow 2 seconds between motor
starts. Failure to comply may cause
motor burnout.
4. To Raise Lift:
A. Push RAISE switch on power unit,
Fig. 3.
B. Stop before making contact with
vehicle. Check arm restraint pins
for engagement. If required, slightly
move arm to allow restraint gear and
pawl to mesh. DO NOT hammer
pin down as this will damage the
restraint gear teeth.
C. Raise vehicle until tires clear the
floor.
D. Stop and check adapters for secure
DO NOT go under vehicle if locking
latches are not engaged.
Remain clear of lift
when raising or
lowering vehicle.
IMPORTANT
Before attempting to lift pickup trucks
or other truck frame vehicles, be sure
that:
contact at vehicle manufacturer’s
recommended lift points.
E. Continue to raise to desired height
only if vehicle is secure on lift.
F. DO NOT go under vehicle if all
four adapters are not in secure
contact at vehicle manufacturer’s
recommended lift points.
G. Repeat complete spotting, loading
and raising procedures if required.
H. Lower lift onto locking latches.
Authorized personnel
only in lift area.
©
CAUTION
Read operating
and safety manuals
before using lift.
©
SAFETY
INSTRUCTIONS
CAUTION
Lift to be used
by trained operator
only.
©
?
?
?
WARNING
Clear area if vehicle
is in danger of falling.
©
CAUTION
Use height extenders
when necessary
to ensure
good contact.
©
CAUTION
Use vehicle
manufacturer’s
lift points.
©
CAUTION
Auxiliary adapters
may reduce
load capacity.
©
WARNING
Remain clear of lift
when raising or
lowering vehicle.
©
•Adapter extensions are furnished in 5" & 10" in-
crements. The stack-up height should not exceed
15". Use adapter extension combination to keep
vehicle as level as possible while it is being sup-
ported by the lift.
*Maximum operation pressure is:
2538 psi for SPO15 Sprinter (31A0 Series)
2103 psi for SPO15 Sprinter (3A0 Series)
2465 psi for SPO15 Standard
2538 psi for SPO18 Standard
