Disassembly of the clutch, primary and balance drive

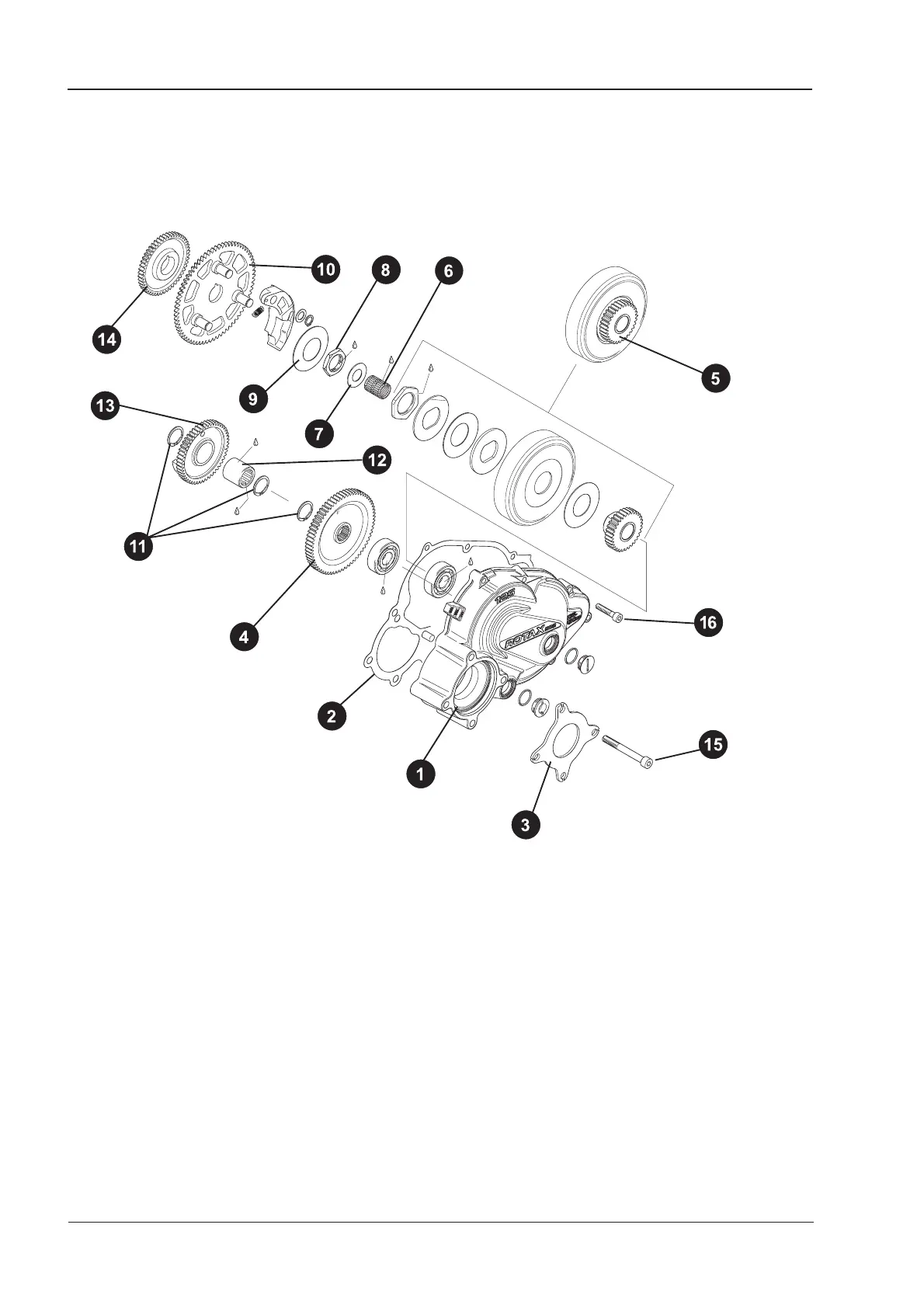

Overview of clutch components
➩ Free the gearbox casing cover (Clutch cover, Item 1) with 6 screws (Item 16), bracket (Item 3)
with 4 screws (Item 15) and remove gasket (Item 2).
➩ Remove the secondary gear wheel (Item 4) from the pinion shaft.
➩ Remove the shaft circlips (Item 11) with a suitable pair of pliers.
➩ Remove the clutch drum with drive gear (Item 5) from the crankshaft.
➩ Remove the needle bearing (Item 6) from the crankshaft.
➩ Remove the thrust washer (Item 7) from the crankshaft.
Fig. 26
