Repair Manual 125 MAX DD2
Page 40 Issue 01/2006
Radiator
The radiator is screwed to 3 rubber mountings (Item 5) and 3 cable clamps (Item 8) on the Kart frame. The
coolant hoses are secured via 4 screw hose clamps (Item 4) on the radiator (Item 1) and secured to the
engine connections.
✔ Check the coolant level: With the engine cold, the level should be 2 cm below the filler opening.
✔ Inspect the coolant hoses (Item 3) for any leaks, porosity and signs of torsional overloading.
✔ Check the radiator cap (Item 2) for correct seating and possible leakage.
✔ Inspect the rubber mountings for porosity.
✔ Check the screw hose clamps for correct fitting and tightness.
✔ Inspect the radiator cooling fins for soiling.
➩ Clean the cooling fins with compressed air.

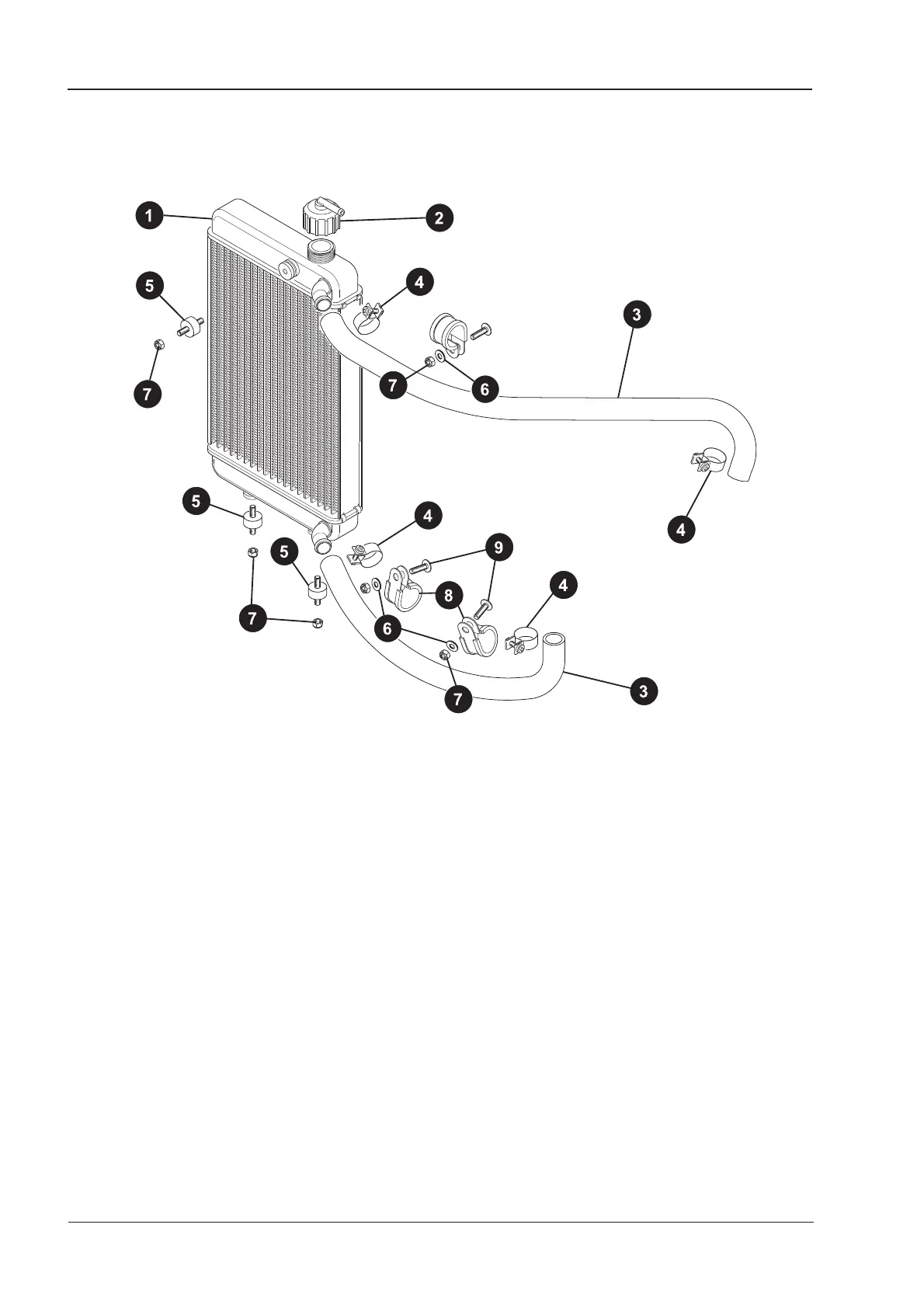

Fig. 65
