Rotax 125 MAX DD2 - Installation of the Clutch, Primary and Balance Drive; Overview of Clutch Components

Repair Manual 125 MAX DD2
Page 46 Issue 01/2006
Installation of the clutch, primary and balance drive
Overview of clutch components

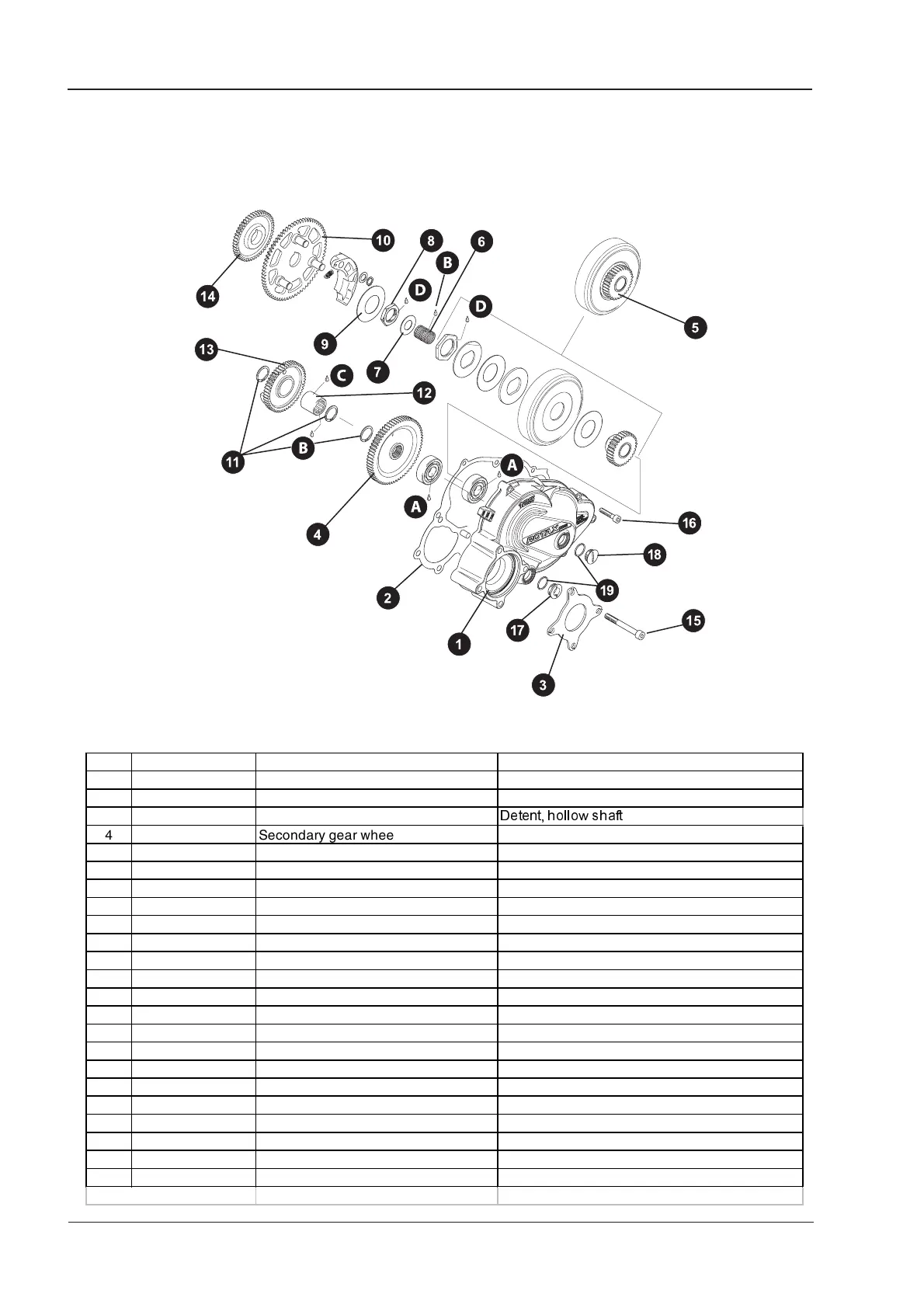

Fig. 76
Item ROTAX Part No.. Descri
p
tion Remarks
1 610 641 Clutch cover
2 630 510 Sealing, housing Sealing, housing
3 251 335 Bracket
'HWHQWKROORZVKDIW
4 Secondary gear wheel Option of various ratios
5 Clutch drum with drive gear Option of various ratios
6 632 410 Needle cage
7 927 057 Thrust washer
8 242 874 Hexagon nut Starter crown wheel attachment
9 239 320 Disc spring Starter crown wheel attachment
10 635 776 starter toothed ring, complete 70 teeth
11 945 660 Retaining ring
12 632 030 Needle sleeve
13 635 741 Balance gear wheel 50 teeth
14 635 730 Balance drive gear wheel 50 teeth
15 841 991 Allen screw M8x70
16 840 880 Allen screw M6x30
17 240 820 Oil level screw
18 241 800 Plug screw
19 250 890 O-ring
A 297 434 Loctite AntiSeize 15378
B 897 330 Lithium-base grease
C 899 788 Loctite 648 green Screw locking
D 899 785 Loctite 221 violet Screw locking
Table 6
