Effectivity: 447 UL SCDI, 503 UL DCDI, 582 UL DCDI /mod. 99
INSTALLATION MANUAL
AIRCRAFT ENGINES
page 17 - 3
Initial issue, May 01/99
d00327

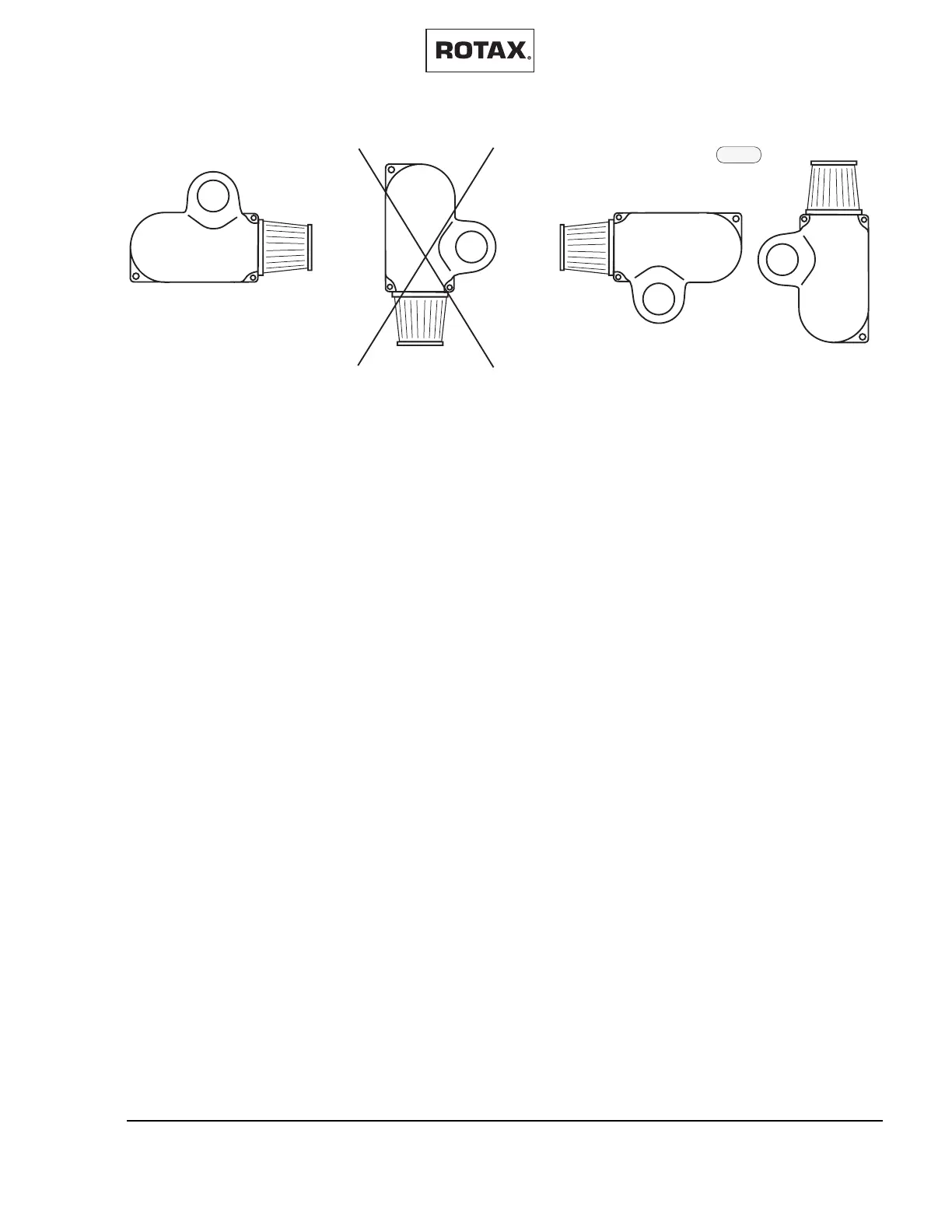

Fitting position 1 Fitting position 2 Fitting position 3 Fitting position 4
Position 1 would be best. Positions 3 and 4 are also acceptable, but avoid unfavour-
able position 2.
▲ WARNING: Screw-on filter and silencer must be wire-secured against slacken-
ing and loss on the assigned lug (3).
All parts liable to become loose have to be secured.
fig. 36
02953
