Rotax 582 UL DCDI 90 - 2) Wiring Diagram for Rectifier Regulator 264 870

Effectivity: 447 UL SCDI, 503 UL DCDI, 582 UL DCDI /mod. 99
INSTALLATION MANUAL
AIRCRAFT ENGINES
page 18 - 5
Initial issue, May 01/99
d00328
fig. 44
02826
fig. 43
02827
fig. 42
02828

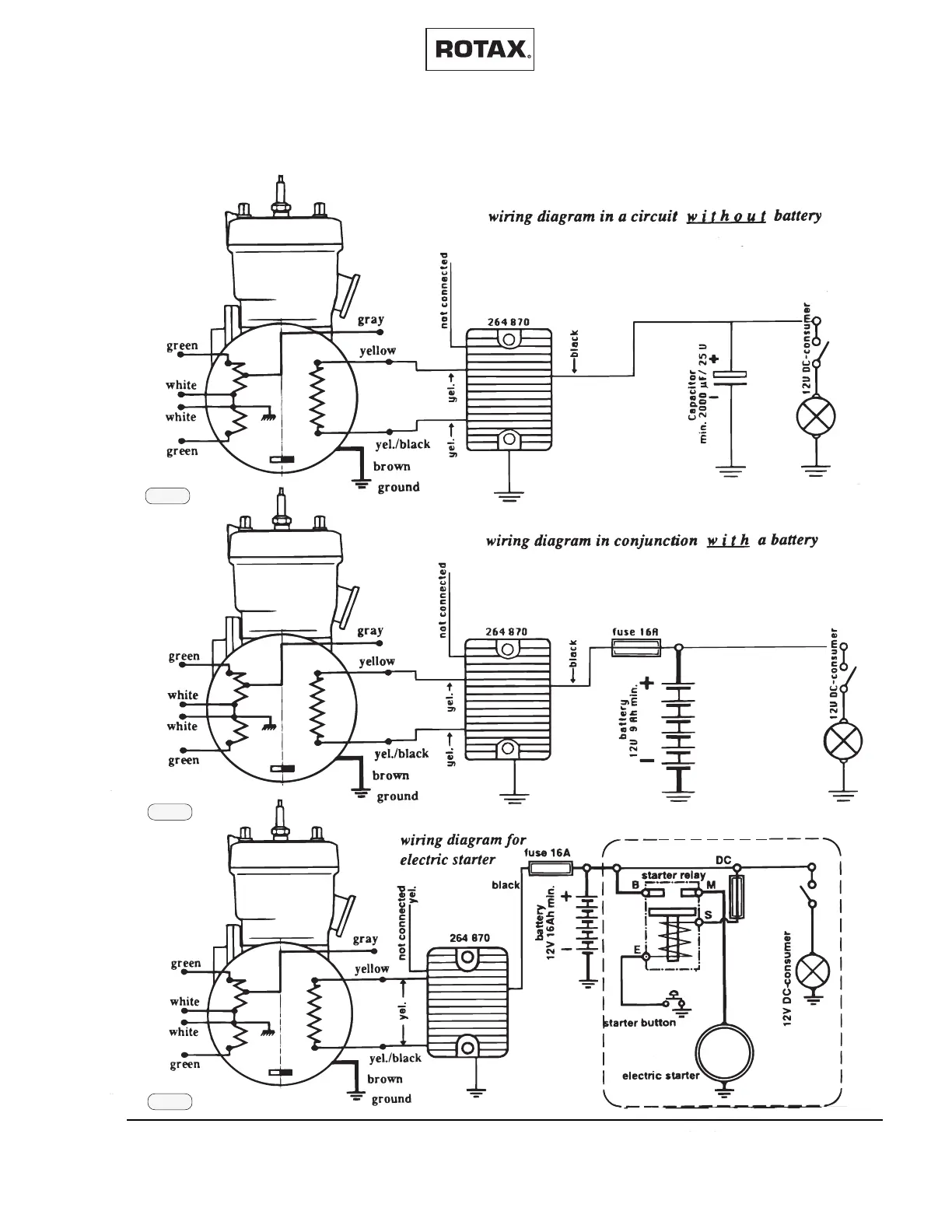

18.5.2) Wiring diagram for rectifier regulator 264 870
(not limited to minimum of 1 Ampere consumption)
