INSTALLATION MANUAL
AIRCRAFT ENGINES
page 12 - 2
Initial issue, May 01/99
Effectivity: 447 UL SCDI, 503 UL DCDI, 582 UL DCDI /mod. 99
d00322
6) Adjustment of oil injection pump alignment marks: At throttle lever idle
position the 2 marks must align (see fig. no. 19).
7) Vent the suction hose before engine start by opening the vent plug
(see fig. no. 19, pos. 9) until all air is vented from that line. Close vent
plug carefully.
8) It is recommended to fill the first tank of fuel with a gasoline oil mixture
at a mixing ratio of 100: 1. This is for safety until the complete system
is properly filled with oil.
◆ NOTE: This oil injection will not affect or replace the rotary
valve gear lubrication nor the reduction gearbox
lubrication.

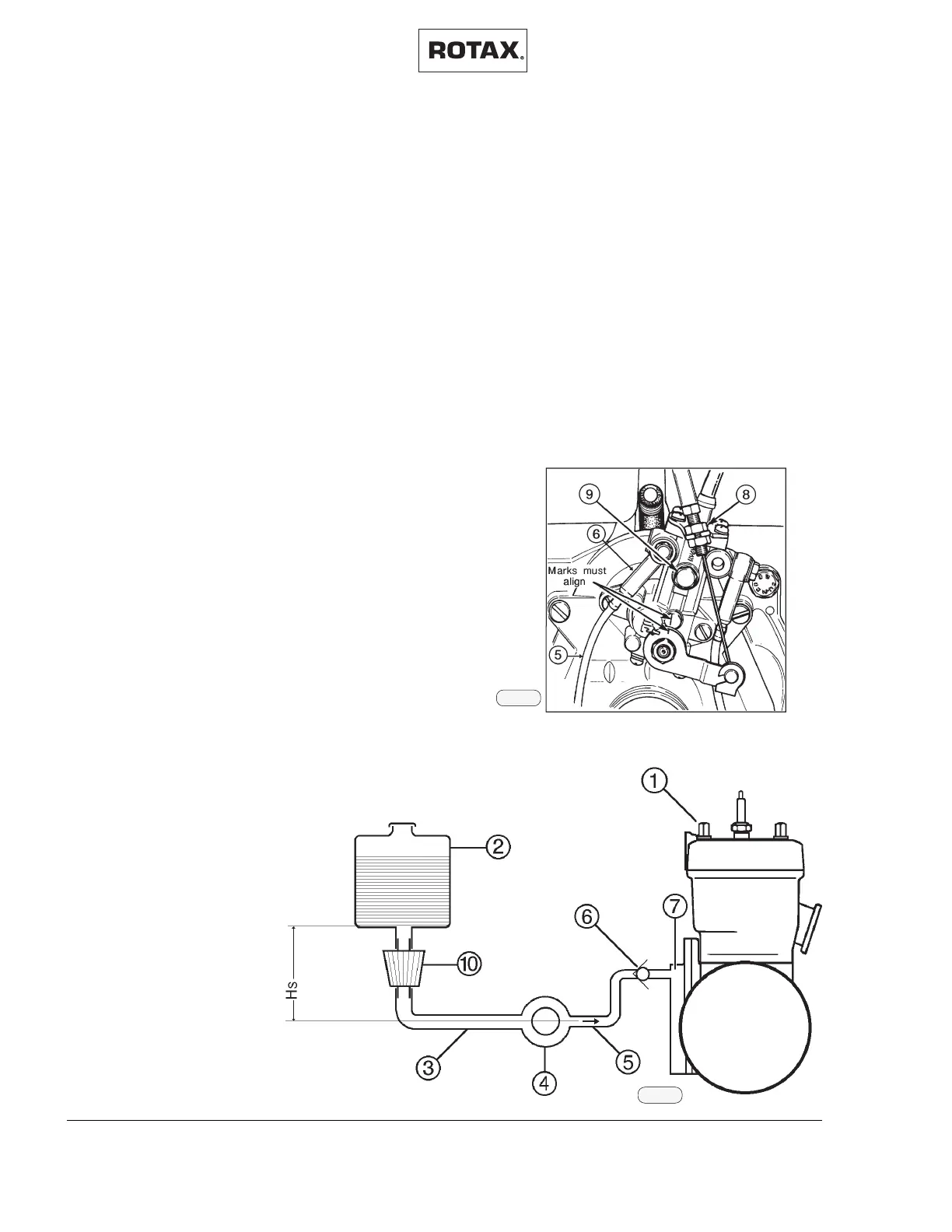

Installation at ROTAX 582 UL DCDI and 582 UL DCDI mod. 99
(1) Engine
(2) Oiltank
(3) Suction hose
(4) Oil pump
(5) Discharge line
(6) Checkvalve
(7) Oil intake port
(8) Adjuster nuts
(9) Venting
(10) Oil filter
fig. 19
fig. 20
02805
02806
◆ NOTE: Oil pump aligning marks for the 503 and 582 are identical.
