Rotax 912 i series Service Instructions

d06703.fm
03 July 2019 76-10-00
Initial Issue Page 6 of 18
Copyright - BRP-Rotax GmbH & Co KG. All rights reserved.
SI-912 i-024
SI-915 i-006
SERVICE INSTRUCTION
3.3.1) Replacement of male connector (regulator side)
In order to preserve maximum wire length, remove the wires with crimped male pins from regula-
tor B connector housing (gray).

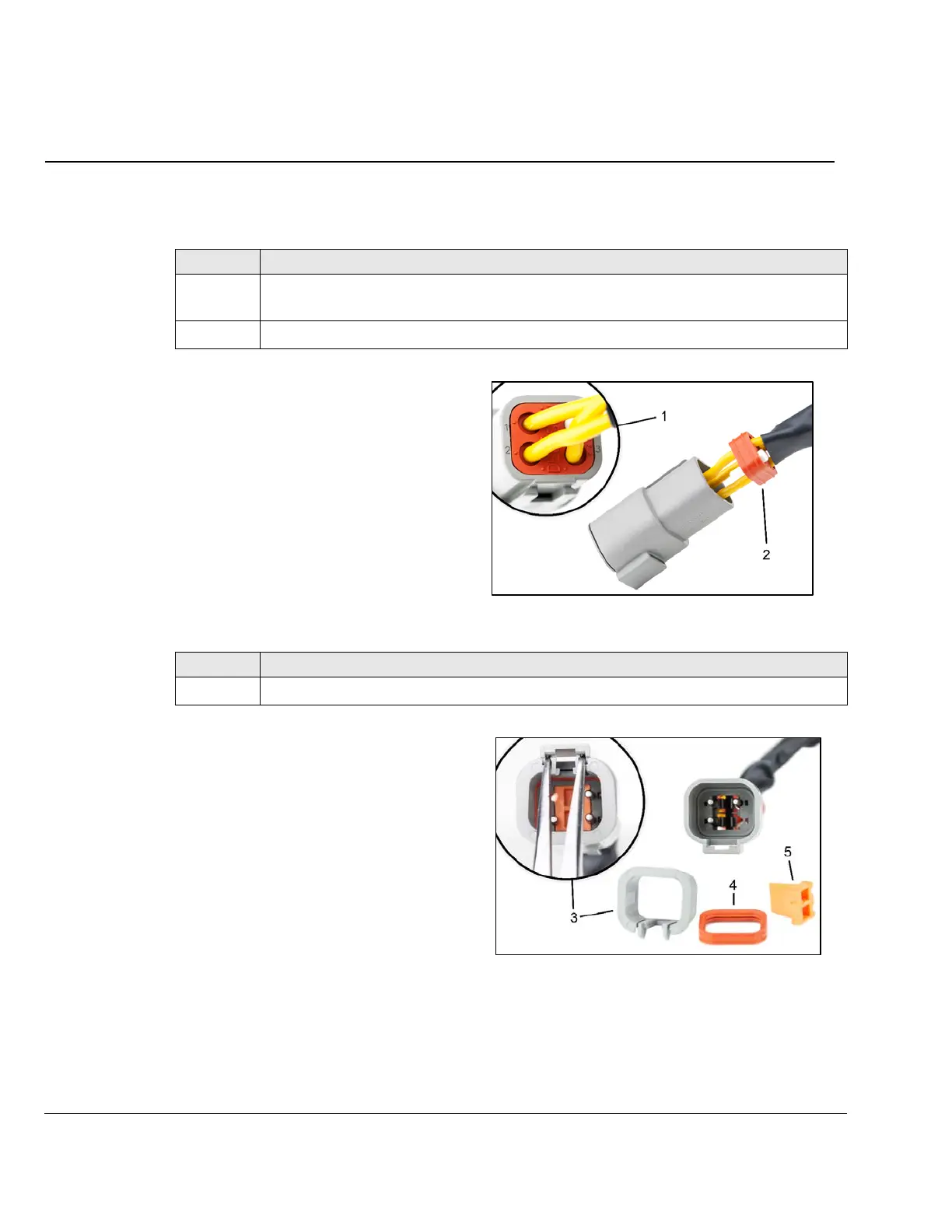

Fig. 1
Fig. 2
Step Procedure
1
Label each of the 3 yellow wires with its location within the connector. The rear of the
connector housing (1) is marked with numbers.
2 Gently pry the rectangular rubber seal (2) from the rear of the connector.
Step Procedure
3 Using fine-nosed pliers, pull the retaining wedge (5) from the connector housing.
1 Connector housing
2 Rubber seal
3 Retaining sleeve
4 Sealing ring
5 Retaining wedge

Rotax 912 i series Specifications

General

Number of Cylinders	4
Max Power	100 hp (73.5 kW)
Max Power Output RPM	5800 rpm
Ignition System	Dual electronic ignition
Oil System	Dry sump, forced lubrication with separate oil tank
Reduction Gear Ratio	2.43:1
TBO	2000 hours
Engine Type	4-stroke, horizontally opposed
Displacement	1352 cm³
Bore x Stroke	84 mm x 61 mm
Max Torque	128 Nm
Fuel Type	Avgas 100LL or unleaded automotive gasoline
Fuel System	Electronic fuel injection
Cooling System	Liquid/air-cooled
