5
4
1
8
7
9
3
2
6
Effectivity: 914 Series BRP-Powertrain page 7-7
OM Edition 2 / Rev. 0 April 01/2009
d04479.fm

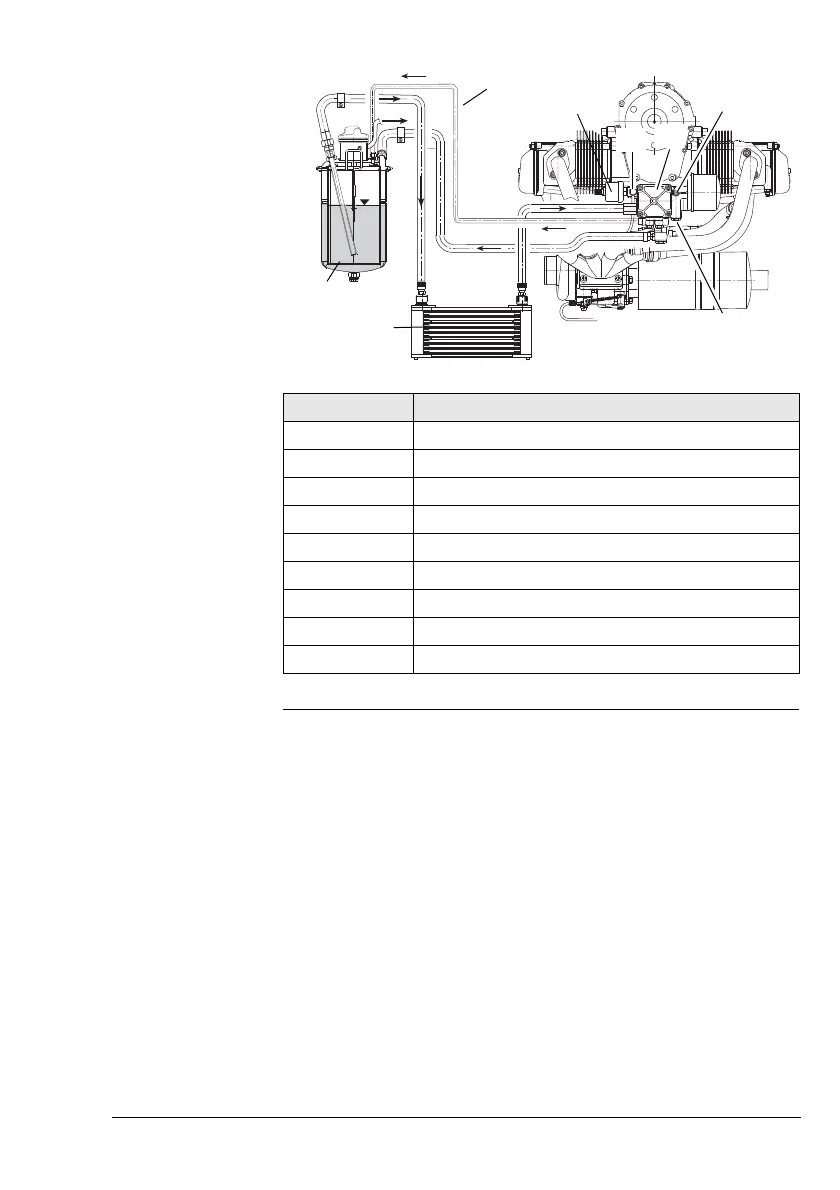

Oil system
Fig. 3 08580
Part Function
1 pressure regulator
2 oil pump
3 oil tank
4 oil cooler
5 venting bore
6 oil pressure sensor
7 oil line (main oil pump)
8 oil line (secondary oil pump to oil tank)
9 oil temperature sensor
