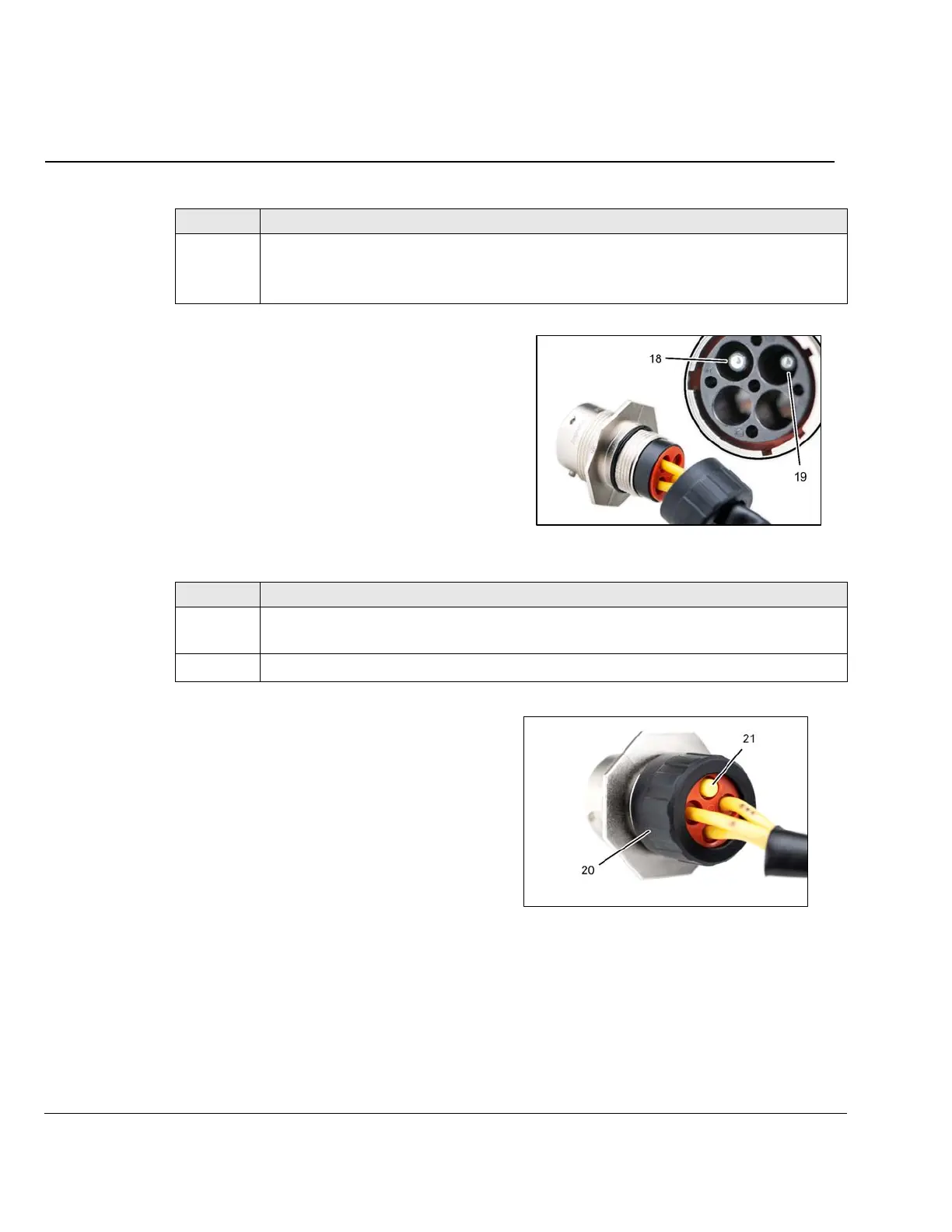

Fig. 8
Fig. 9
Step Procedure
4
Push each wire into connector until its pin snaps securely in place.
NOTE: Correctly secured pin (18) will travel further into connector and lock in
place. Removal requires using extractor tool.
Step Procedure
5
With all connector pins secured, push the rubber seal into the plastic ring and screw
on connector cap (20).
6 Place plastic sealing plug into empty position in rear seal (21).
18 Secured pin
19 Un-secured pin
20 Connector cap
21 Sealing plug
