Flue gas routing
[ 14 ]

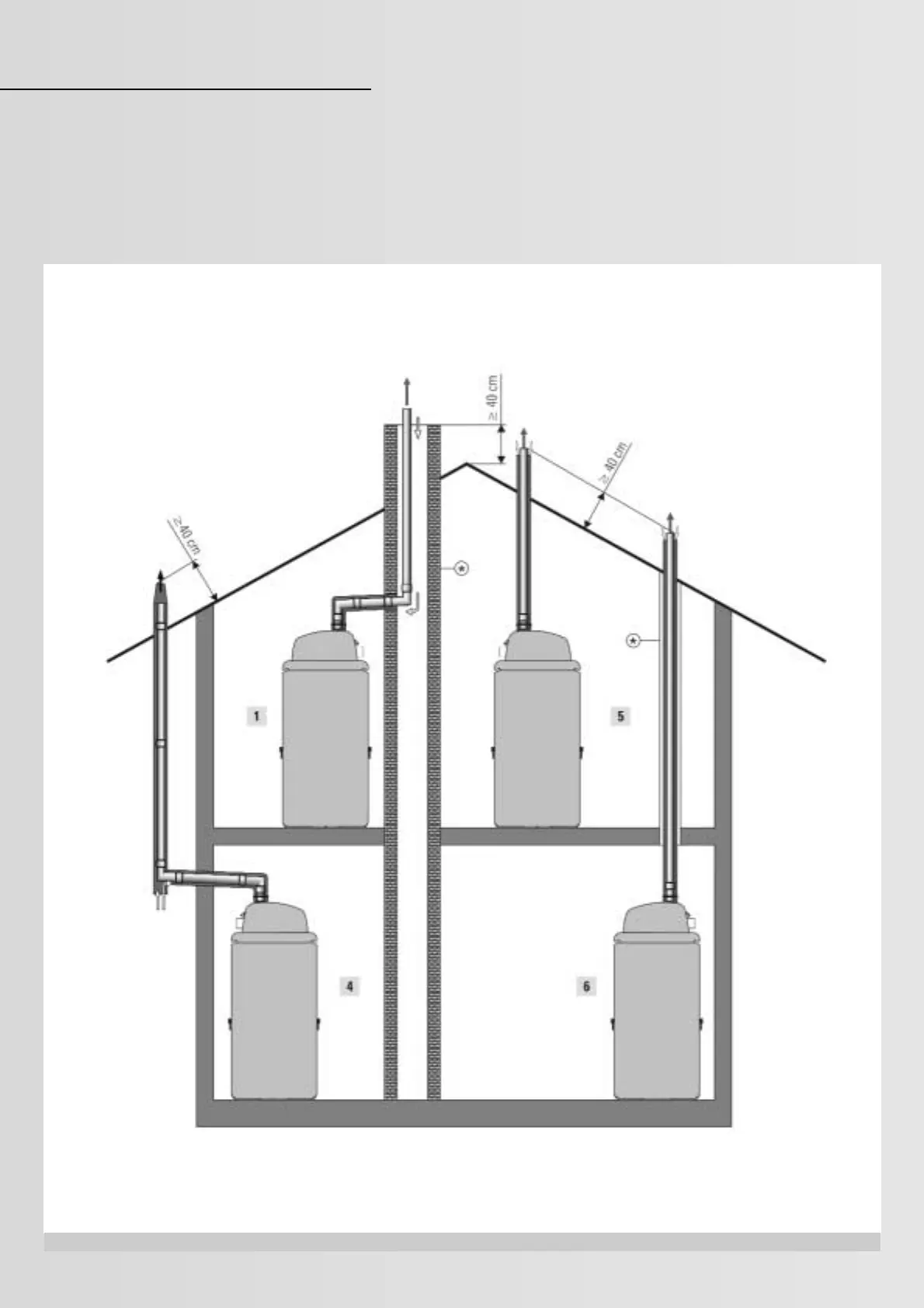

Fig. 3.2.2: Installation versions for the ROTEX GasSolarUnit/GasCompactUnit
* linear ventilated duct with a 90 min fire resistance, for low domestic buildings 30 min fire resistance
➔ Air
❷ Flue gas
