Footnotes regarding Table 8.1 Specification
1) at rated output, 80 °C flow temp., 65 °C cylinder temp., 45 °C DHW temp. and 10 °C cold water temp.
2) Explanation: The specific water flow rate to EN 625 is the cold water flow rate when raising the average temperature by 30 K, that can be delivered by the GasSolarUnit/GasCompactUnit in the course of two
consecutive drawings of 10 minutes duration respectively, starting from a primary temperature of 65 °C. This is based on the standard delay of 20 minutes between drawings. The GasSolarUnit/GasCompactUnit
achieves this value even at substantially shorter delays.
[ 56 ]
Chapter 8: Specification
Standard details
Total cylinder capacity litres 500 500 500 500
Weight (empty) kg 124 125 121 128
Total weight (wet) kg 624 625 621 628
Dimensions (L x W x H) cm 79 x 79 x 181 79 x 79 x 181 79 x 79 x 181 79 x 79 x 181
Max. permissible DHW cylinder temperature °C 85 85 85 85
Standby heat loss kWh/24 h 1.8 1.8 1.8 1.8
Maximum operating pressure bar 10 10 10 10
DHW heat exchanger material Stainless steel Stainless steel Stainless steel Stainless steel
DHW heating
DHW capacity litres 24.5 24.5 24.5 24.5
DHW heat exchanger surface area m
2
5,5 5.5 5.5 5.5
Average specific output W/K 2470 2470 2470 2470
Cylinder primary heat exchanger (stainless steel)
Heat exchanger water content litres 10.4 10.4 10.4 19.5
Primary heat exchanger surface area m
2
2,3 2.3 2.3 4.3
Average specific output W/K 1040 1040 1040 1950
Solar central heating backup (stainless steel)
Heat exchanger surface area m
2
0,43 0.43 – –
Average specific output W/K 200 200 – –
Thermo-technical performance data (stainless steel)
Performance factor N
L
to DIN 4708
1)
2.1 2.3 4.0 4.4
D value (spec. water flow rate) to EN 625
2)
l/min 27 29 33 39
Continuous output to DIN 4708 Q
n
kW 25 29 25 35
Max. draw-off rate for 10 min (at
(T
KW
= 10 °C/T
cyl
= 60 °C/T
WW
= 40 °C) l/min 22 23 29 31
DHW volume without re-heating at 15 l/min
draw-off rate (T
KW
= 10 °C/T
WW
= 40 °C/T
cyl
= 60 °C) litres 220 220 412 412
DHW volume with re-heating
at rated output and 15 l/min draw-off rate
(T
KW
= 10 °C/T
WW
= 40 °C/T
cyl
= 60 °C) litres 590 1400 1180 unlimited
Peak water volume in 10 min litres 220 230 290 310
Boiler parameters
Rated output kW 5.4-25.0 8.0-35.0 5.4-25.0 8.0-35.0
Rated thermal load kW 5.5-25.5 8.5-36.1 5.5-25.5 8.5-36.1
Boiler type B
23
/ C
43x
/ C
63x
/ C
43
/ C
63
Product ID CE-0085 BM 0065
NOx class 5 5 5 5
Electrical specification V/Hz 230/50 230/50 230/50 230/50
Power consumption
(incl. heating circuit pump) W max. 127 max. 159 max. 127 max. 159
Protection IP 20 20 20 20
Water content litres 5.5 5.5 5.5 5.5
Maximum permissible operating pressure bar 3.0 3.0 3.0 3.0
Maximum permissible operating temperature °C 85 85 85 85
Maximum boiler efficiency % 110 110 110 110
Balanced flue connection diameter mm 80/125 80/125 80/125 80/125
Pipe connections
Cold and hot water inches 1” male 1” male 1” male 1” male
Heating flow and return inches 1” female 1” female 1” female 1” female
Part no. 15 70 10 15 70 21 15 70 30 15 70 40
Specification GasSolarUnit and GasCompactUnit GSU 25 GSU 35 GCU 25 GCU 35

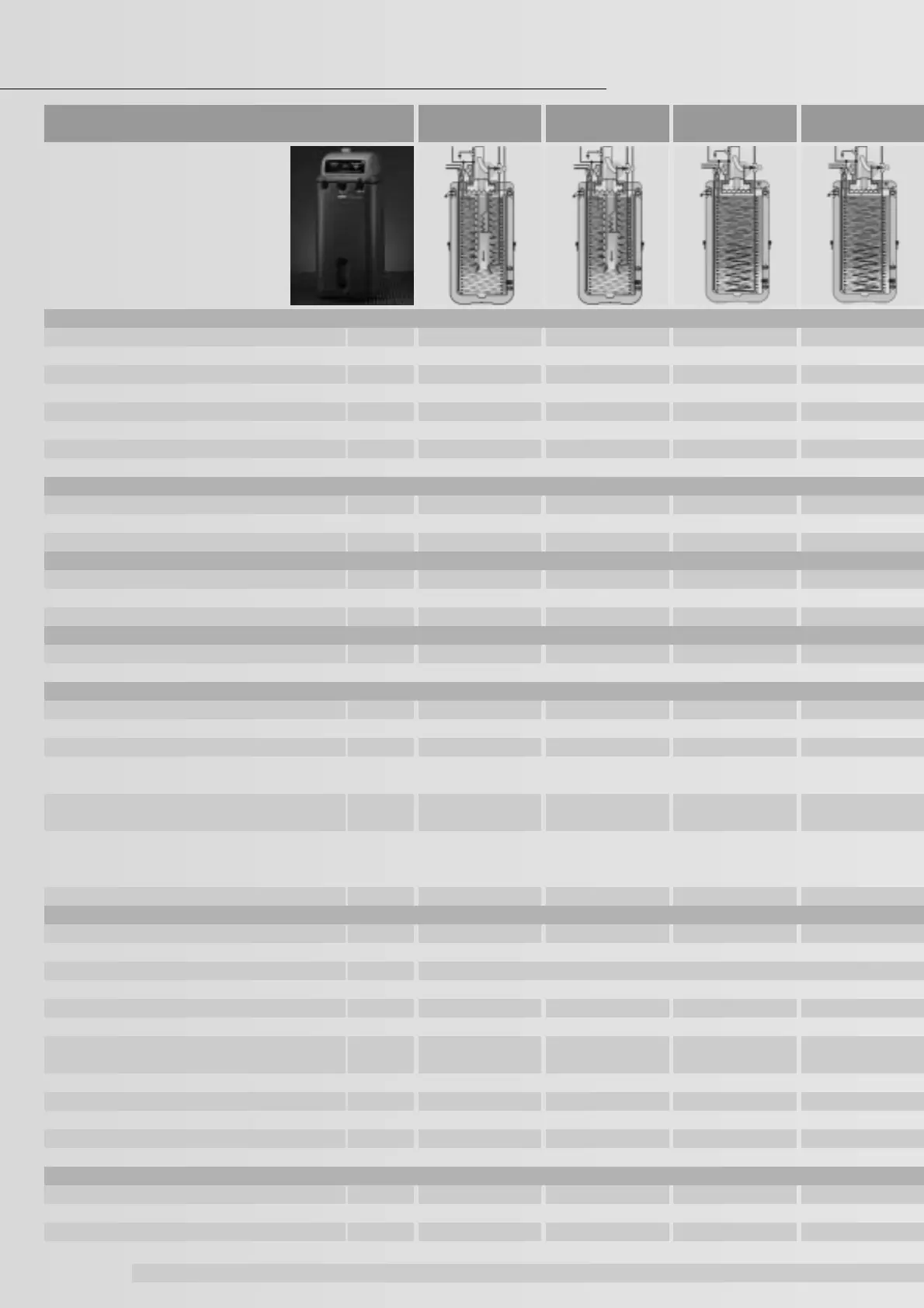

Table 8.1: Specification
