GSU 25/ GCU 25 GSU 35/ GCU 35
Gas type Settings for Output CO
2
content O
2
content Output sett- CO
2
O
2
content
Test setting
1)
Load in % ing
1)
in % speed Load in % in %
measurement
1)
speed in % in kW (+/- 0.2 %) (+/- 0.1 %) in % in kW (+/- 0.2 %) (+/- 0.1 %)
FULL LOAD 100 25.5 9.4 4.2 100 36.1 9.8 3.5
80 20.2 9.3 4.3 80 28.6 9.6 3.8
STANDARD LOAD 33 7.9 9.2 4.5 33 11.1 9.3 4.4
24 5.5 9.2 4.5 26 8.5 9.2 4.5
FULL LOAD 100 25.5 9.3 4.0 100 36.1 9.6 3.5
80 20.2 9.2 4.1 80 28.6 9.4 3.9
STANDARD LOAD 33 7.9 9.1 4.4 33 11.1 8.9 4.8
24 5.5 9.1 4.4 26 8.5 8.8 4.9
FULL LOAD 100 25.5 11.3 3.8 100 36.1 11.5 3.5
80 20.2 11.1 4.1 80 28.6 11.2 3.9
STANDARD LOAD 33 7.9 10.6 4.9 33 11.1 10.6 4.9
24 5.5 10.5 5.0 26 8.5 10.5 5.0
FULL LOAD 100 25.5 11.5 3.8 100 36.1 11.7 3.5
80 20.2 11.3 4.1 80 28.6 11.4 3.9
STANDARD LOAD 33 7.9 10.8 4.9 33 11.1 10.8 4.9
24 5.5 10.7 5.0 26 8.5 10.7 5.0
1)
Observe warning information! The details in the plain fields correspond to the ROTEX factory settings
Table 5.1.2: Set flue gas values for different gas types

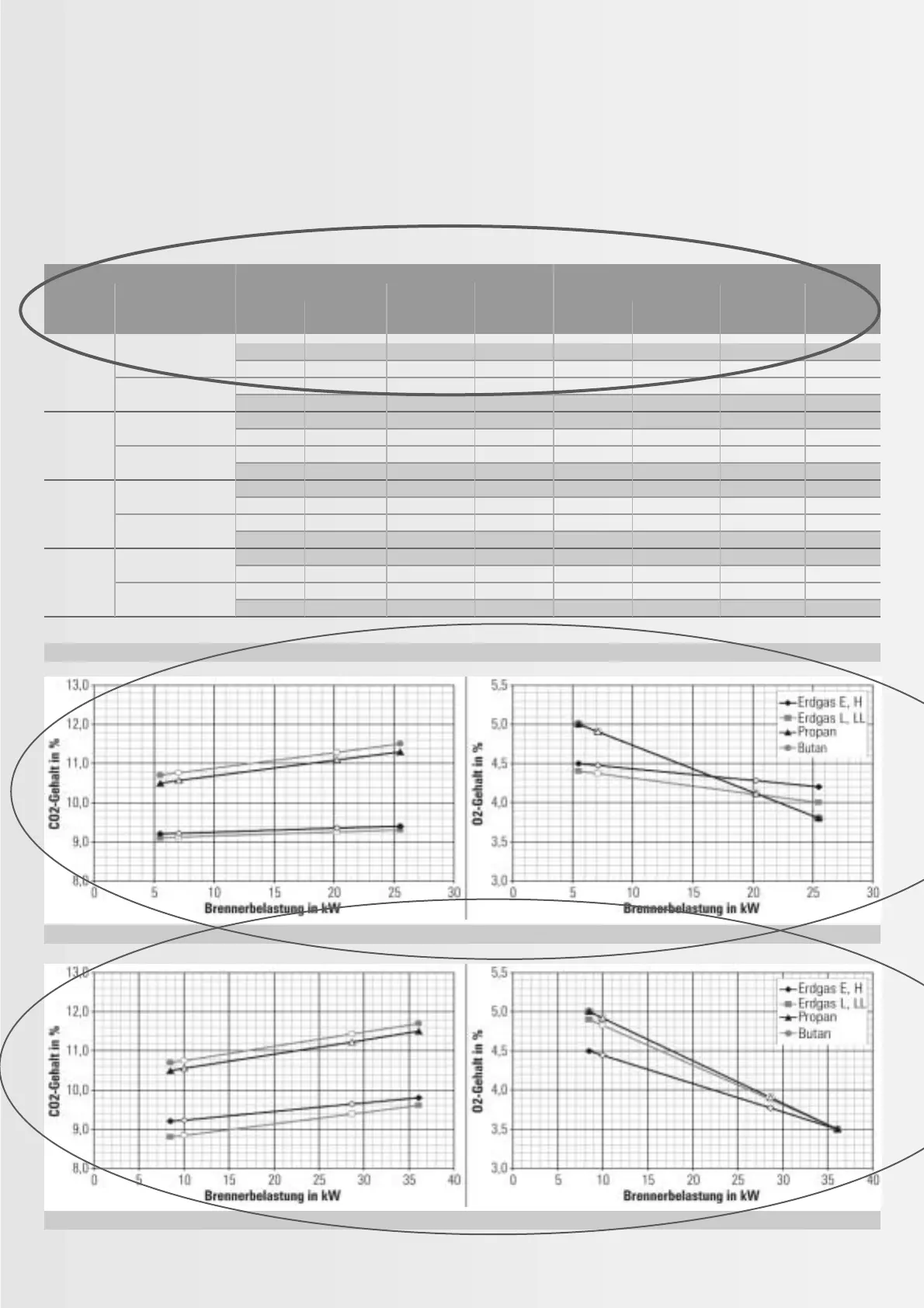

Fig. 5.1.8: Set flue gas values for burner adjustment for GSU 35/GCU 35
2)
Fig. 5.1.7: Set flue gas values for burner adjustment for GSU 25/GCU 25
2)
The data items filled in white represent the ROTEX factory settings
Natural
gas E, H
Natural
gas LL,L
Propane
Butane
