Rotex HPSU 6-8X - Piping Diagrams

10 x Technical data
125
FA ROTEX HeatPumpSolarUnit - Part 2 - 05/2009
10.3 Piping diagrams

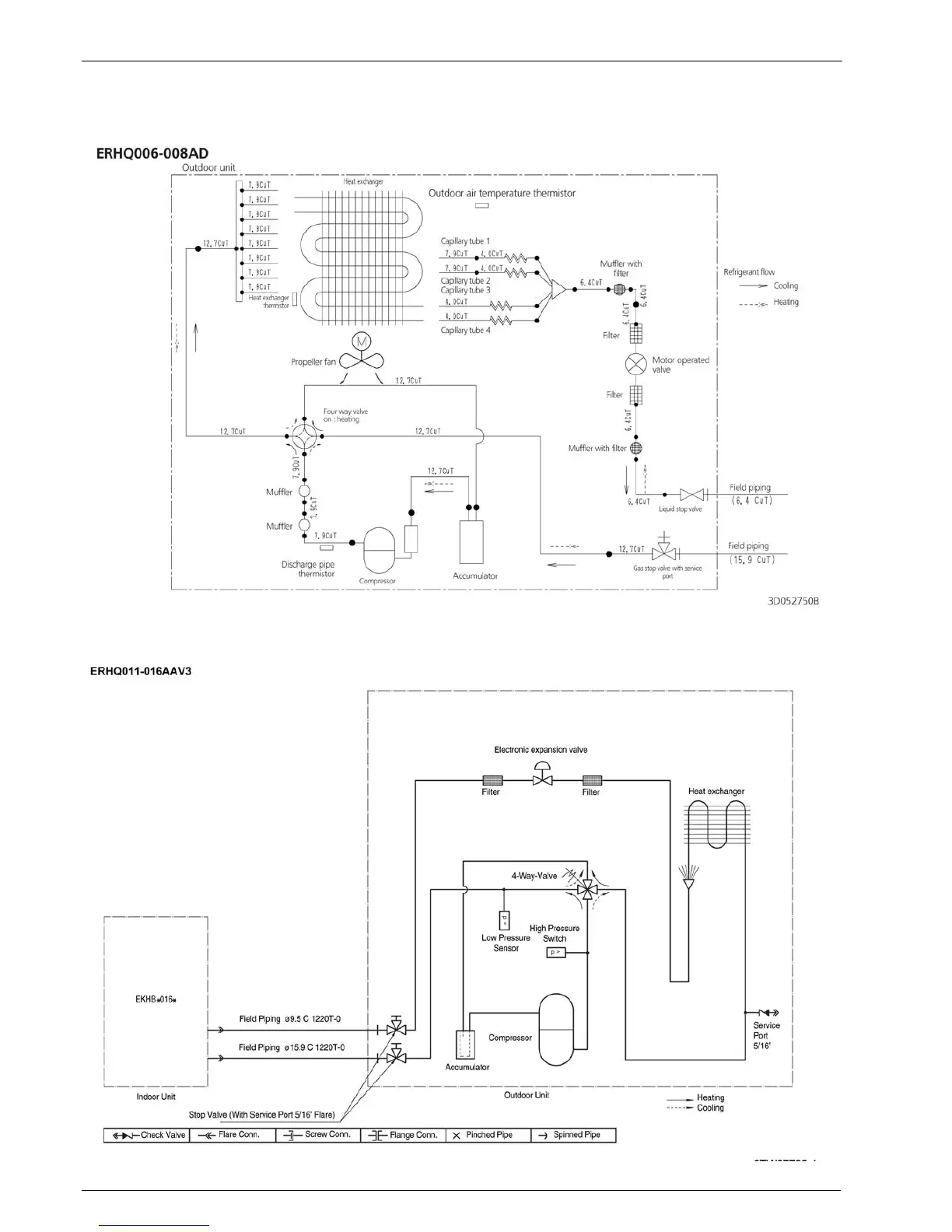

Fig.10-13 Piping diagram Outdoor Module (RRHQ) 6-8 kW
Fig.10-14 Piping diagram Outdoor Module (RRHQ) 11-16 kW
