10 x Technical data
133
FA ROTEX HeatPumpSolarUnit - Part 2 - 05/2009

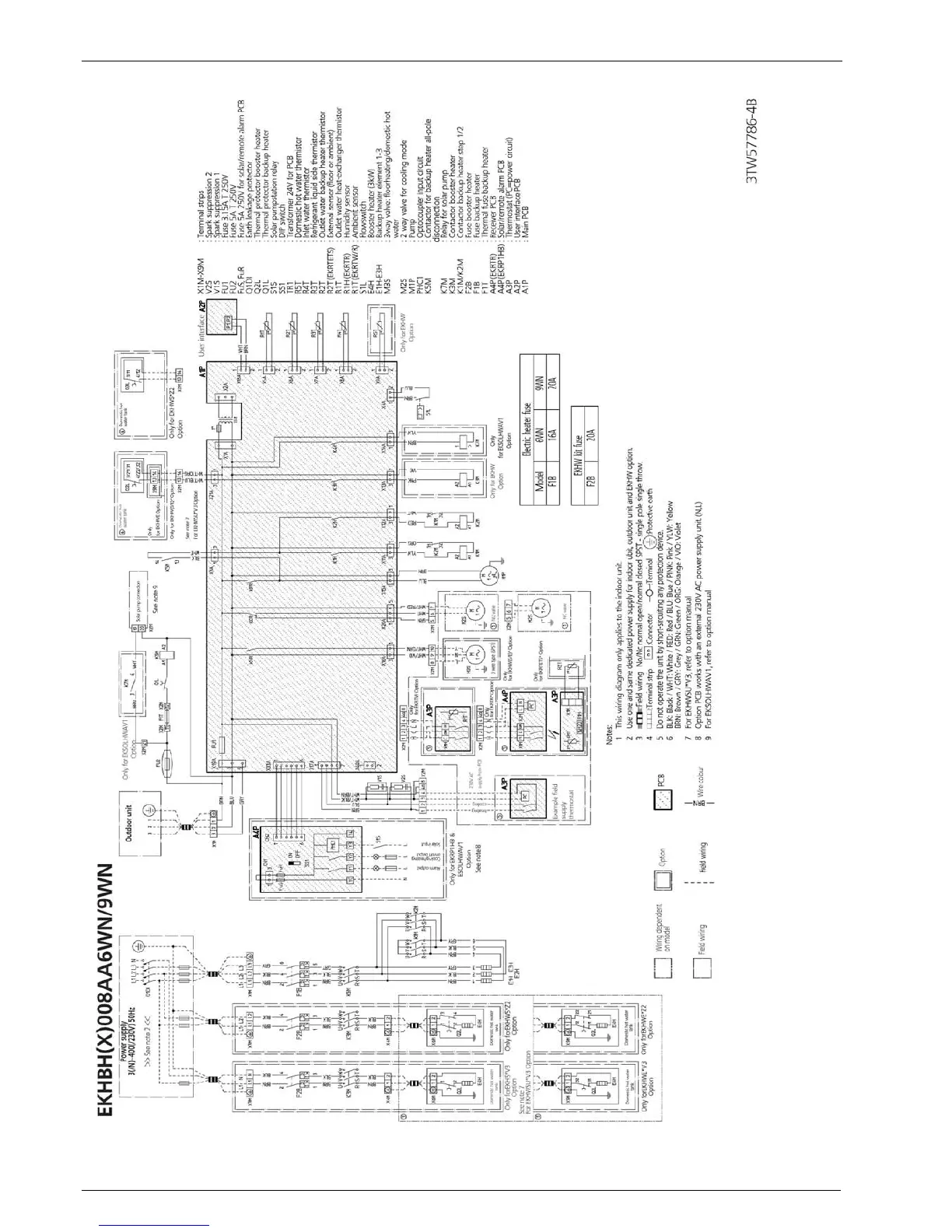

Fig.10-24 Electric circuit diagram Indoor Module (RKHB) 6-8 kW with Backup Heater (BH) 6WN / 9WN
