Roundup VCT-250 - MAINTENANCE (continued); Monthly: Bun Temperature Test; Monthly: Replace Release Sheet; Every Three Months: Maintenance Tasks

RAPID TOASTER VCT-250
12
P/N 1010776 Rev. H 03/04
McDonald’s
RAPID TOASTER VCT-250
13
P/N 1010776 Rev. H 03/04
McDonald’s

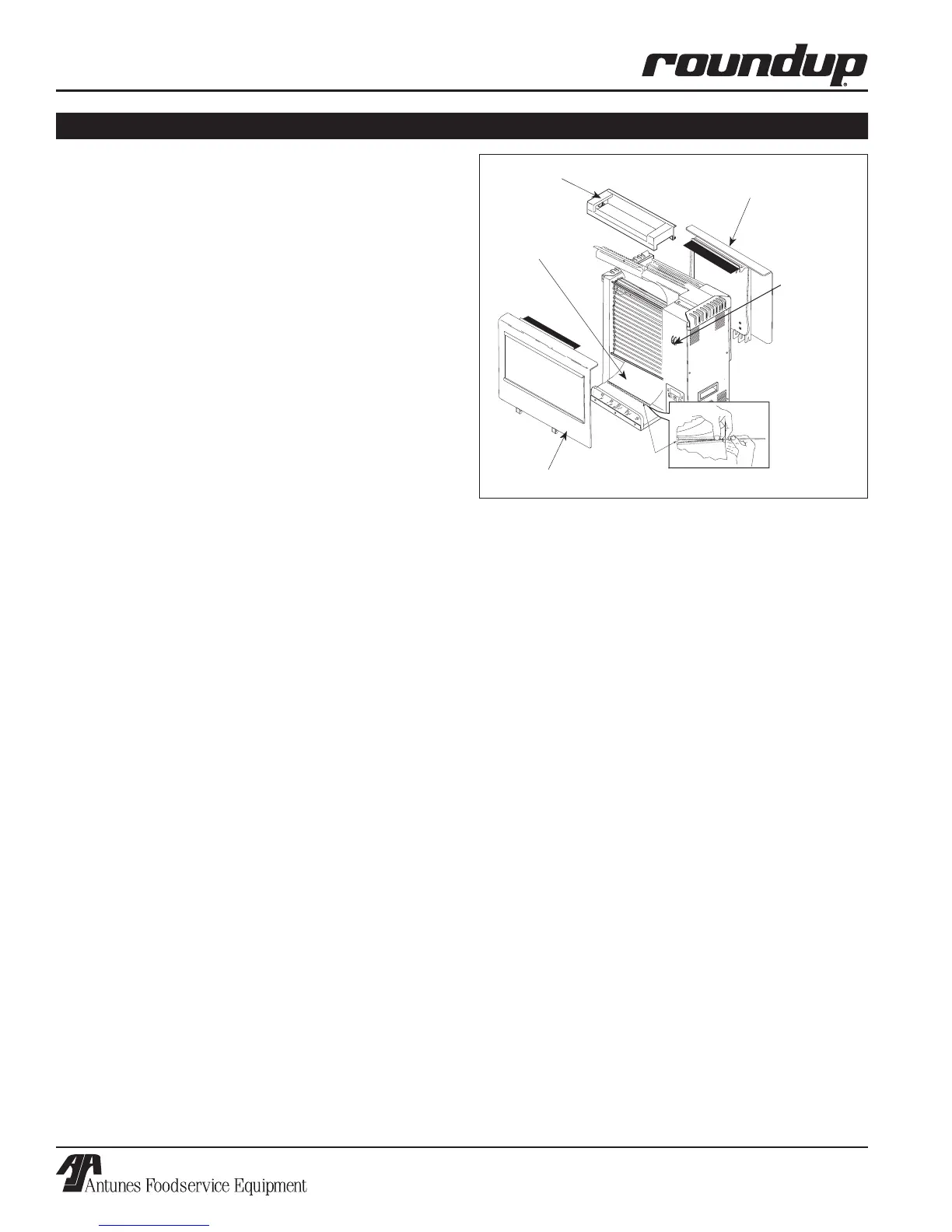

Figure 11. Replacing Groovy Belt
CAUTION
POW
ER
T
E
M
P
D
O
W
N
T
E
M
P
U
P
T
E
M
P
S
C
A
L
E
˚
C
˚F
Bun Feeder
Front (Heel) Conveyor Cover
Rear (Crown)
Conveyor Cover
Bun Chute
Safety
Interlock
Switch
(1 each side)
MAINTENANCE (
continued)
Monthly: Bun Temperature Test
NOTE: The minimum temperature allowed is 150°
F (65.6º C). If this temperature is not achieved con
-
tact your Authorized Service Agency.
Tools Required:
Pyrometer/Needle probe attachment,
four 8 oz. coffee cups stacked together, plus one lid
or four 12 oz coffee cups plus one lid.
1.
Turn the ON and preheat for 30 minutes.
2.
Toast 3 regular buns to be used with the 8 oz.
cup stack or 4 regular buns to be used with the
12 oz. cup stack.
3.
Immediately stuff the buns into the stacked cups
and tightly apply the lid. Wait 10 minutes
4.
Insert the needle probe attachment of the
pyrometer through the lid several times.
Note the maximum temperature.
Monthly: Replace Release Sheet.
Every Three Months: Replace Groovy Belt
Wraps, Clean and Measure Conveyor Belt
Chains, Check Roller Tensioners, and
Check Temperature of Bun Landing Area.
Remove the Groovy Belt Wraps & Release Sheet
1.
Turn the unit OFF, unplug the toaster and allow it
to cool down.
2.
Remove the Bun Feeder, Bun Chute, and change
the Bun Thickness Compression Controls to
“F & 6” (Figure 2A/2B).
3.
Remove and discard the black Release Sheet.
4.
Open the Front (Heel/Club) Conveyor Cover
and rotate the Groovy Belt Wrap so its flap is in
the middle (top to bottom) of the conveyor. Pull
the hinge pin out of the Groovy Belt Wrap and
then remove and discard this Groovy Belt Wrap.
Repeat this process on the Rear (Crown) side.
Clean the Conveyor Belt Chains
1.
Spray
McD© All-Purpose Super Concentrate
(HCS)
on a clean, dry, towel and wipe the sur
-
face of the Rear (Crown) Conveyor Belt Chain
links firmly from side to side and top to bottom.
Immediately repeat this procedure with a clean,
dry, towel dampened with
KAYQUAT™ Sanitizer
(HCS)
solution and repeat this procedure on the
Front (Heel/Club) Conveyor Belt chain.
2.
Close the Conveyor Cover(s), plug in the power
cord, turn on the unit, count to seventeen (17)
seconds for Mfg# 9210600 to 9210604 and
9210618 to 9210622 or ten (10) seconds for Mfg#
9210609 to 9210612. Next, turn the unit OFF
and unplug the power cord.
NOTE: Refer to Figures 2A and 2B, in the Operation
section of this Manual.
3.
Open the Conveyor Cover(s) and repeat Step 1
to clean the other half of both the Front (Heel/
Club) and Rear (Crown) Conveyor Belt Chains.
