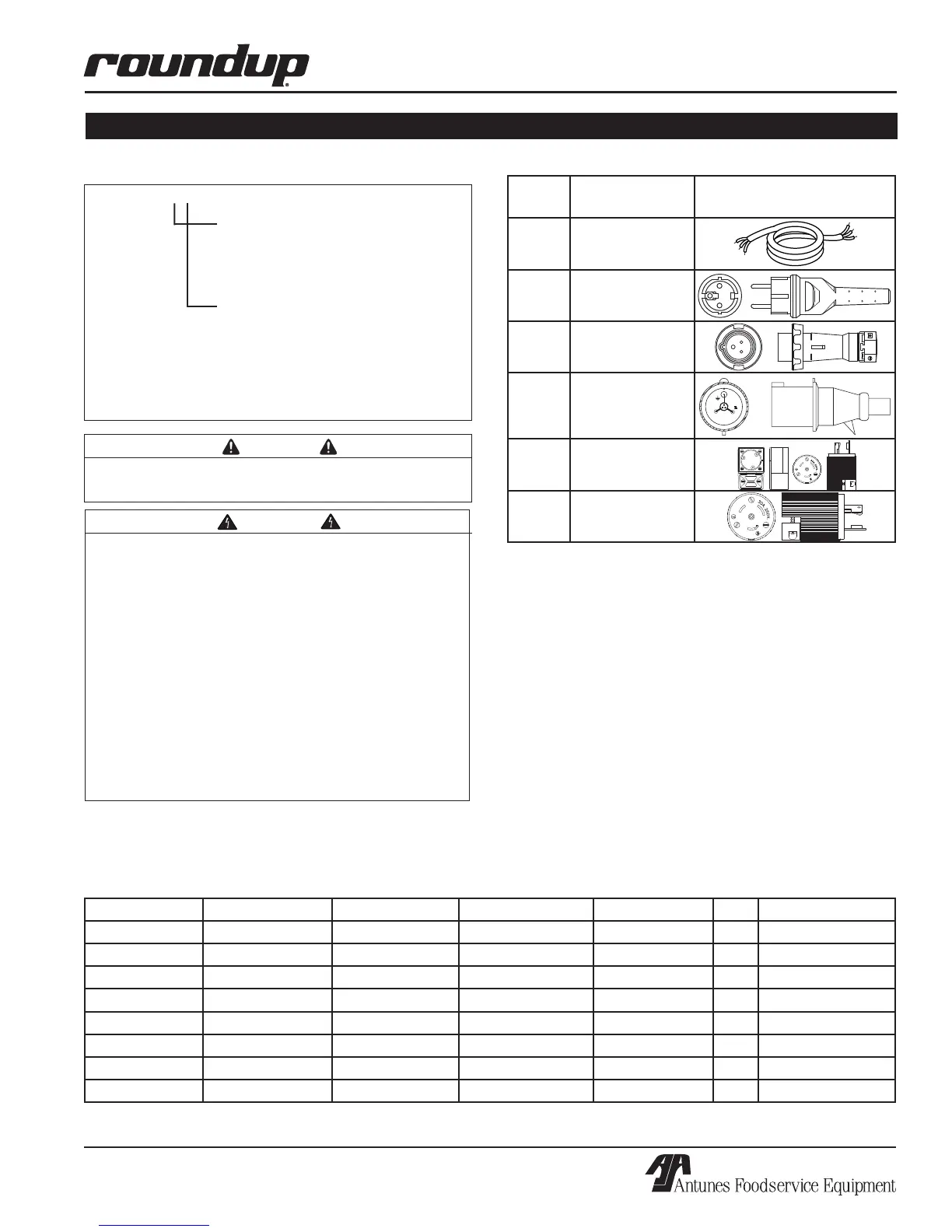

SPECIFICATIONS
Model Specifications
Electrical Cord & Plug Configurations
CAUTION
All electrical connections must be in accordance with
local electrical codes and any other applicable codes.
WARNING
ELECTRICAL SHOCK HAZARD. FAILURE TO
FOLLOW THE INSTRUCTIONS IN THIS MANUAL
COULD RESULT IN SERIOUS INJURY OR DEATH.
• Electrical ground is required on this appliance.
• Do not modify the power supply cord plug. If
it does not fit the outlet, have a proper outlet
installed by a qualified electrician.
• Do not use an extension cord with this appliance.
• Check with a qualified electrician if you are in
doubt as to whether the appliance is properly
grounded.
* Used in Model Designation
** Indicates that the plug comes supplied with a Harmonized Cord.
Model Designation
TYPE OF POWER CORD
H = HARMONIZED
C = COMMERCIAL
R = ROCKBESTOS
TYPE OF PLUG
C = CEE 7/7
D = Domestic Pin and Sleeve
I = International Pin and Sleeve
R = Right Angle Twist-Lock
S = Straight Twist-Lock
VCT-250XX
Letter
Code*
Description Configuration
C
H
R
Commercial Cord
Harmonized Cord
Rockbestos Cord
(H)C** CEE 7/7, 16 Amp.,
250 VAC
(Assembly Only).
D #330P6W, 30
Amp., 250
VAC.,Pin & Sleeve
(H)I** IEC-309, 16 Amp.,
250 VAC., Pin &
Sleeve (Assembly
Only).
R L6-30P, 30 Amp.,
250 VAC.,Right
Angle Twist Lock.
S L6-30P, 30 Amp.,
250 VAC.,Straight
Twist Lock.
Model Number Mfg. Number Voltage Wattage Amperage HZ Toasting Time
VCT-250RD 9210600 208, 220-240 3326, 3700-4390 13.9, 16.8-18.3 60 17 secs
VCT-250RR 9210602 208, 220-240 3326, 3700-4390 13.9, 16.8-18.3 60 17 secs
VCT-250RS 9210604 208, 220-240 3326, 3700-4390 13.9, 16.8-18.3 60 17 secs
VCT-250HI 9210609 220-240 3058-3640 13.9-15.1 50 Approx 10 secs
VCT-250RS 9210612 208, 220-240 3326, 3700-4390 13.9, 16.8-18.3 60 Approx 10 secs
VCT-250RD *9210618 208, 202-240 3326, 3700-4390 13.9, 16.8-18.3 60 Approx 17 secs
VCT-250RR *9210620 208, 202-240 3326, 3700-4390 13.9, 16.8-18.3 60 Approx 17 secs
VCT-250RS *9210622 208, 202-240 3326, 3700-4390 13.9, 16.8-18.3 60 Approx 17 secs
* United States and Canada only
Toasting Time Change
In Early 2003, there was a change in the toasting time
and Bun Thickness settings. The toasting time was
changed from 10 seconds to 17 seconds and the Bun
Thickness settings were changed from “B & 3” to “D
& 5.” This field “Toaster Quality Kit” was installed on
models VCT-250RD (Mfg #9210600), VCT-250RR (Mfg
#9210602), and VCT-250RS (Mfg #9210604). Not all
toasters were changed to the 17 second toasting time.
To determine if your toaster is a 10 or 17 second toast-
er, look at the label located on the left end panel. If the
background color is YELLOW, the toasting time is 17
seconds. If the background color is GRAY, the toasting
time is 10 seconds. If your toaster has been changed
to 17 seconds, follow all instructions/information per-
taining to Mfg #9210618 to 9210622.
