Battery
201
4
Battery disconnection and removal
Before disconnecting or removing the battery, disarm the alarm,
and ensure that the starter switch and all electrical equipment is
turned off.
Disconnect the negative (‘-’) cable first and then the positive (‘+’)
cable (when reconnecting, connect the positive cable first and then
the negative cable).
Do not allow the battery terminals or cables to make contact
with tools or metal parts of the car.

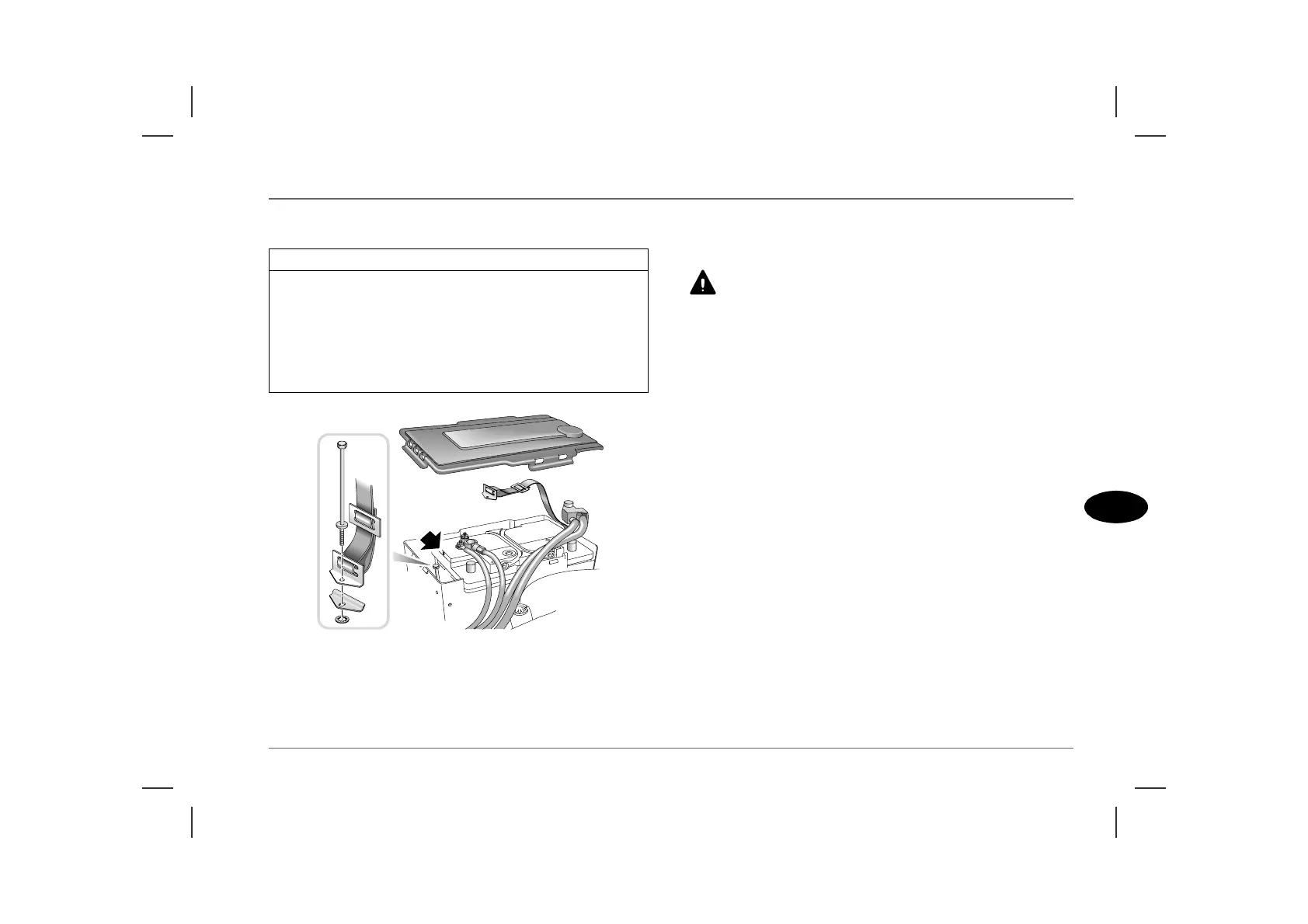

Remove the battery clamping plate retaining bolt; this will release
the battery retaining strap and enable the clamping plate to be
removed (see inset in illustration).
Use the attached carrying handles (if fitted) to lift the battery from
the car.
Quick-release battery clamp
*
In some countries, the positive battery terminal is fitted with a
quick-release clamp. Unscrew to release the clamp.
Battery replacement
Only fit a replacement battery of the same type and specification
as the original - other batteries may differ in size and shape or have
different terminal positions, which could cause damage to the
battery, leaking acid, or fire.
When replacing, ensure the battery is fitted the right way round,
with the terminal posts facing towards the left side of the car.
Make sure both the battery clamping plate and retaining strap are
fitted securely; this will prevent the battery from moving in the
event of an accident or sudden stop.
Finally, ensure the retaining strap does NOT cover the gas vent
holes at each end of the battery (the front facing vent hole is
identified with an arrow in the previous illustration).
IMPORTANT
• DO NOT reverse the polarity of the battery - the electrical
system may be damaged if the battery leads are connected to the
wrong terminals.
• Keep the battery upright at all times - damage will be caused if
the battery is tilted more than 45°.
• NEVER run the engine with the battery disconnected, or
disconnect the battery while the engine is running.
H2787
