Bulb Replacement
247
5
REAR LIGHTS (Saloon)

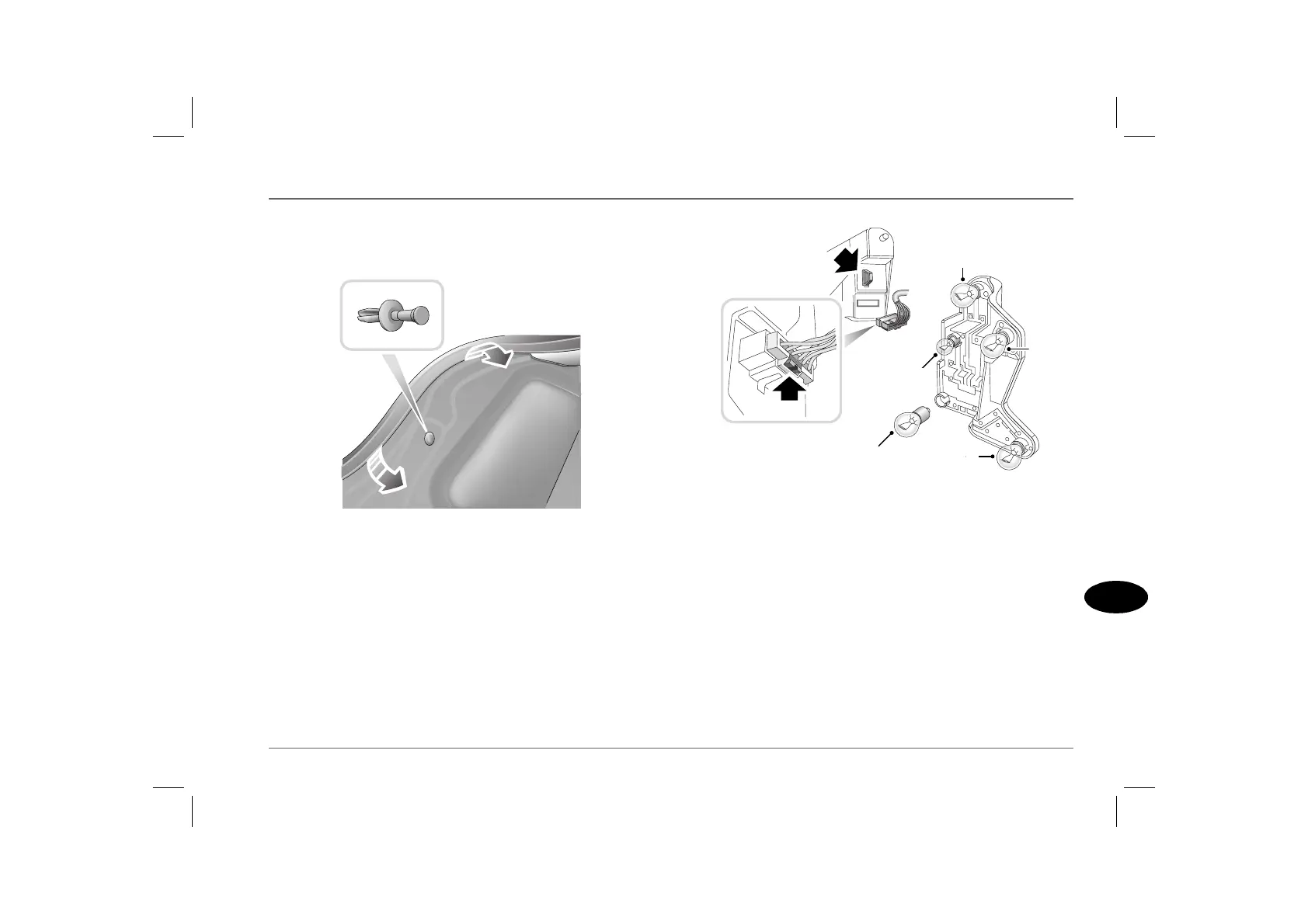

To access the bulbs, it is necessary to detach one of the scrivet
fixings and fold back the boot lining.
To remove the fixing: Use pliers or the flat blade of a screwdriver to
lever the head of the fixing away from the boot lining. The fixing
can then be pulled from its mounting position.
To replace the fixing: Fully open the fixing by pulling the head away
from the body (see inset). Align the fixing with the holes in the
boot lining and bodywork, then push the head fully in.
Detach the electrical connector from the rear of the light unit by
depressing the release catch on the underside (see inset in following
illustration), at the same time pulling the connector free.
Replacement bulbs:
1. Brake light 21 watts
2. Tail light 5 watts
3. Fog guard light 21 watts
4. Reversing light 21 watts
5. Direction indicator light 21 watts (amber)
Press the lever (arrowed in main illustration) towards the side of
the car to release the light unit. Remove light unit from the car.
Push and twist the bulbs anti-clockwise to remove.
NOTE: When replacing the light unit, locate the upper part of the light
unit first then ease the lower half into position. Make sure the release catch
‘clicks’ into position to securely retain the light unit.
HB0496
HB0497
1
2
4
3
5
