HEATING

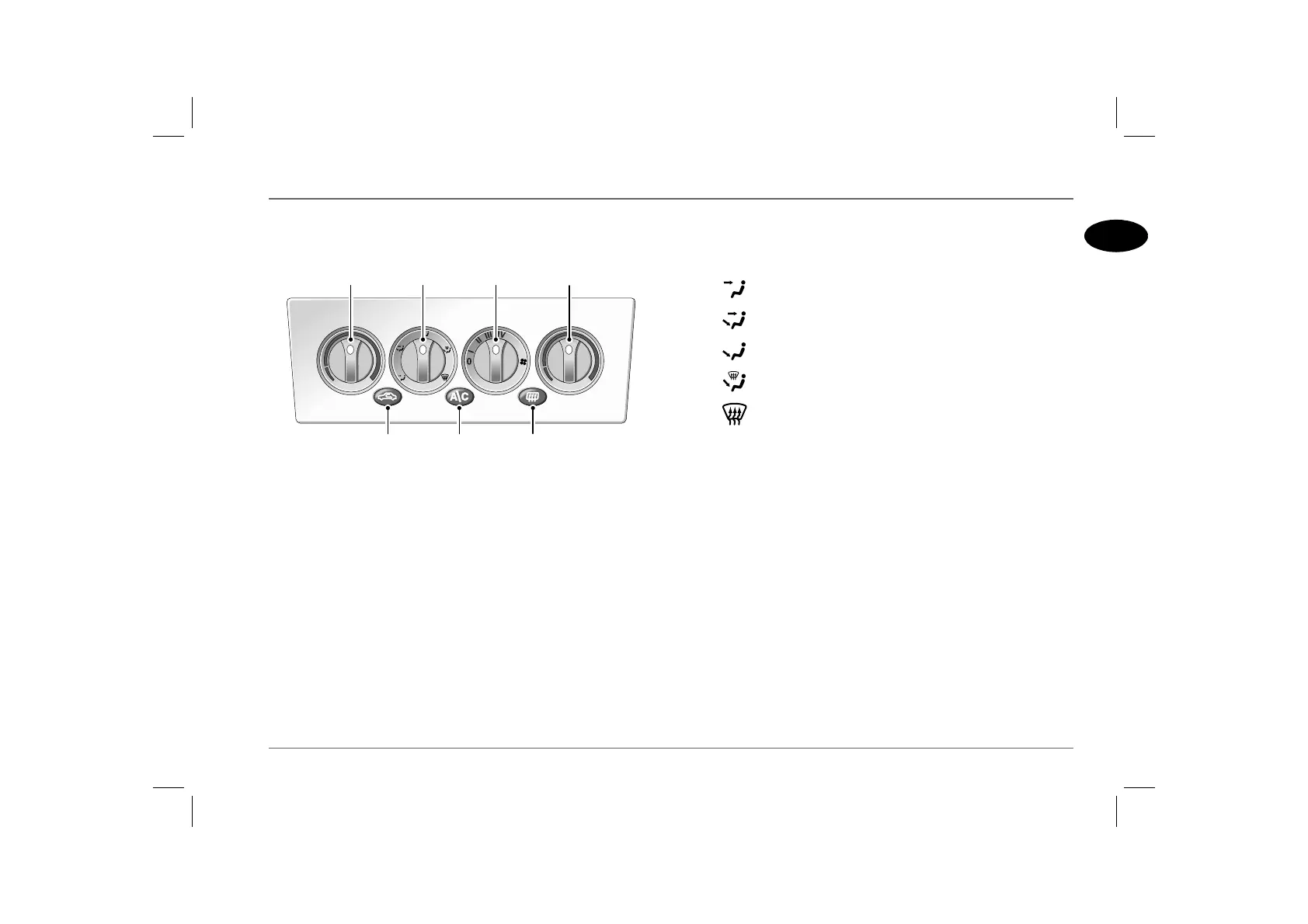

Control panel
1. Air temperature controls
• BLUE: Unheated air
• RED: Heated air
Where dual temperature controls are fitted (as illustration),
the left hand dial controls air temperature from the vents on
the left side of the car and the right hand dial controls air
temperature from the vents on the right side of the car.
Where a single control is fitted, the dial controls air
temperature from the vents on both sides of the car.
2. Air distribution control
NOTE: When distributing air to the face level vents, they must be
FULLY open to ensure best performance.
Face level vents only.
Foot and face level vents.
Foot level vents.
Foot level, windscreen and side window vents.
Windscreen and side window vents.
3. Blower switch
Turn the switch clockwise to increase the blower speed.
NOTE: With the blower switched off, the volume of air entering the
car is dependent on driving speed alone.
4. Recirculated air supply button
Press to operate (the indicator light in the switch illuminates).
With this button pressed, the heater recirculates the air
already inside the car, preventing the entry of traffic fumes.
Press again to switch off.
If the air conditioning is switched on, air recirculation will
remain active until fresh air is selected, or until the air
conditioning is switched off.
With air conditioning switched off (and on cars not equipped
with air conditioning), air recirculation will automatically
switch off after 4 minutes operation. This reduces the risk of
misting windows. To override this timed feature, press and
