33

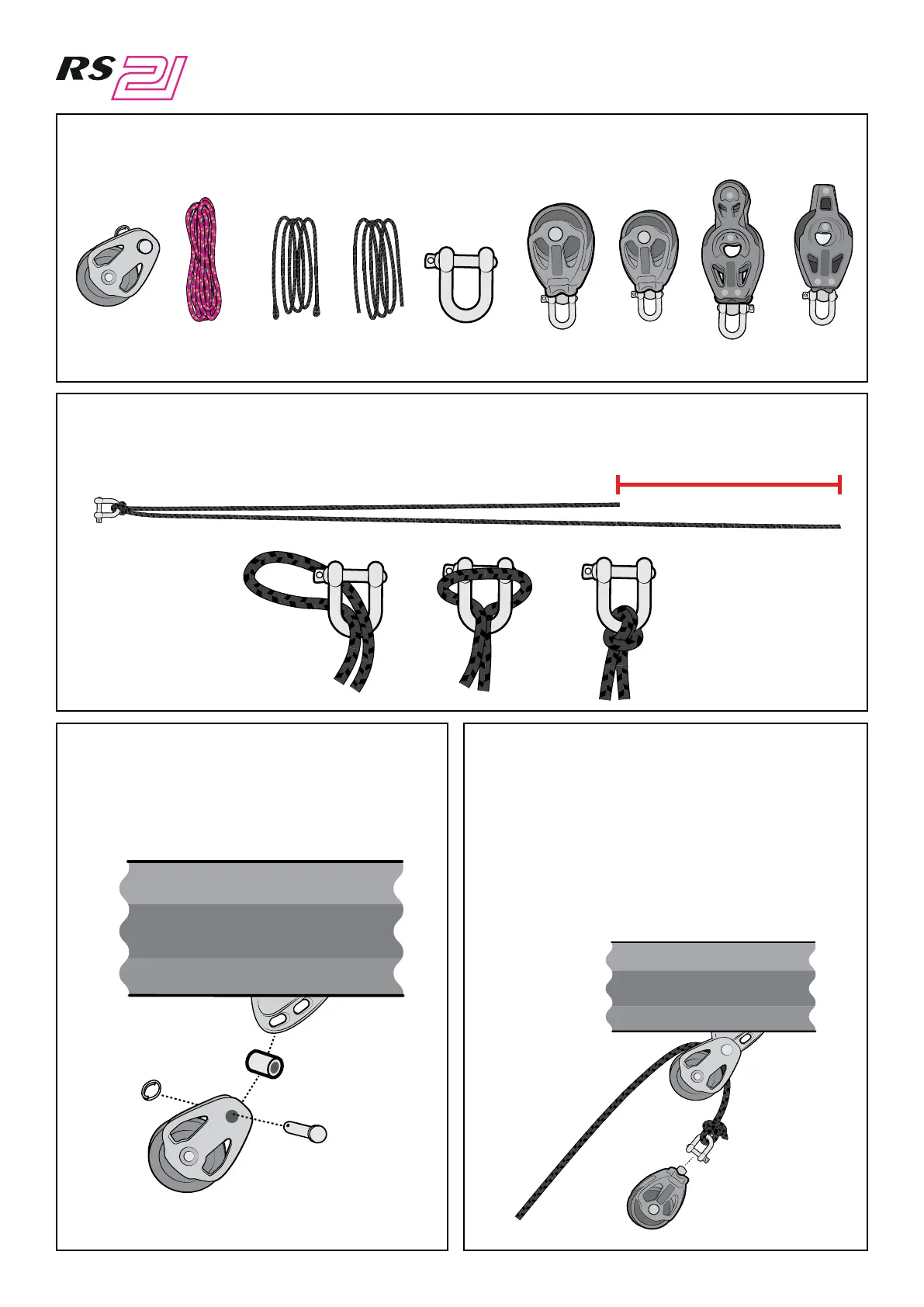

4.10 - Vang
a)
c) d)
b)
Locate the following items in the rigging pack:
Add the 45mm block to the
boom.
Locate the black vang purchase line and attach it to one of the shackle from one of the
40mm blocks using knot #6, leaving one end 140mm longer than the other.
Pass the longer end of the black rope
through the block on the boom and attach it
to the shackle with knot #1, or by passing
the shackle through the spliced loop (race
version).
Attach the shackle onto the 40mm block.
45mm block
race version
(spliced ends)
regular
version
Vang control
Vang
purchase
Shackle
40mm block
30mm block
Double block
140mm
Single block
with becket
To Next Page
