37
4.13 - Cunningham
b)
a)
c)

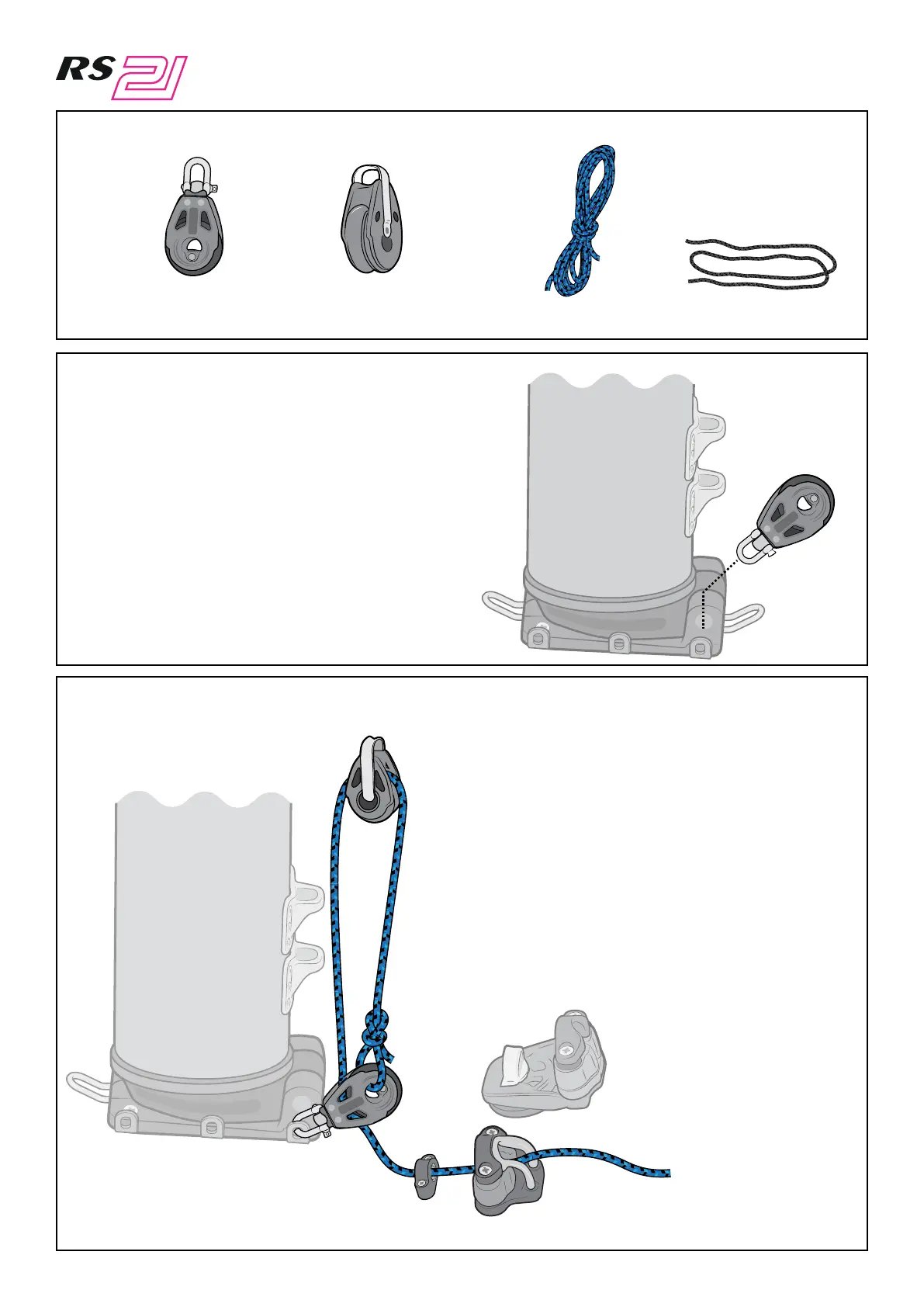

Locate the following items in the customer packs.
Shackle the bottom block onto the middle metal
eye on the port side of the mast step.
Tie one end of the cunningham control line to the
block on the mast step with knot #2 then it through
the blocks, fairlead and cleat as shown.
Tie knot #3 in the tail.
30mm block
(bottom)
Cunningham Cunningham tail
30mm strap block
(top)
To Next Page
