7

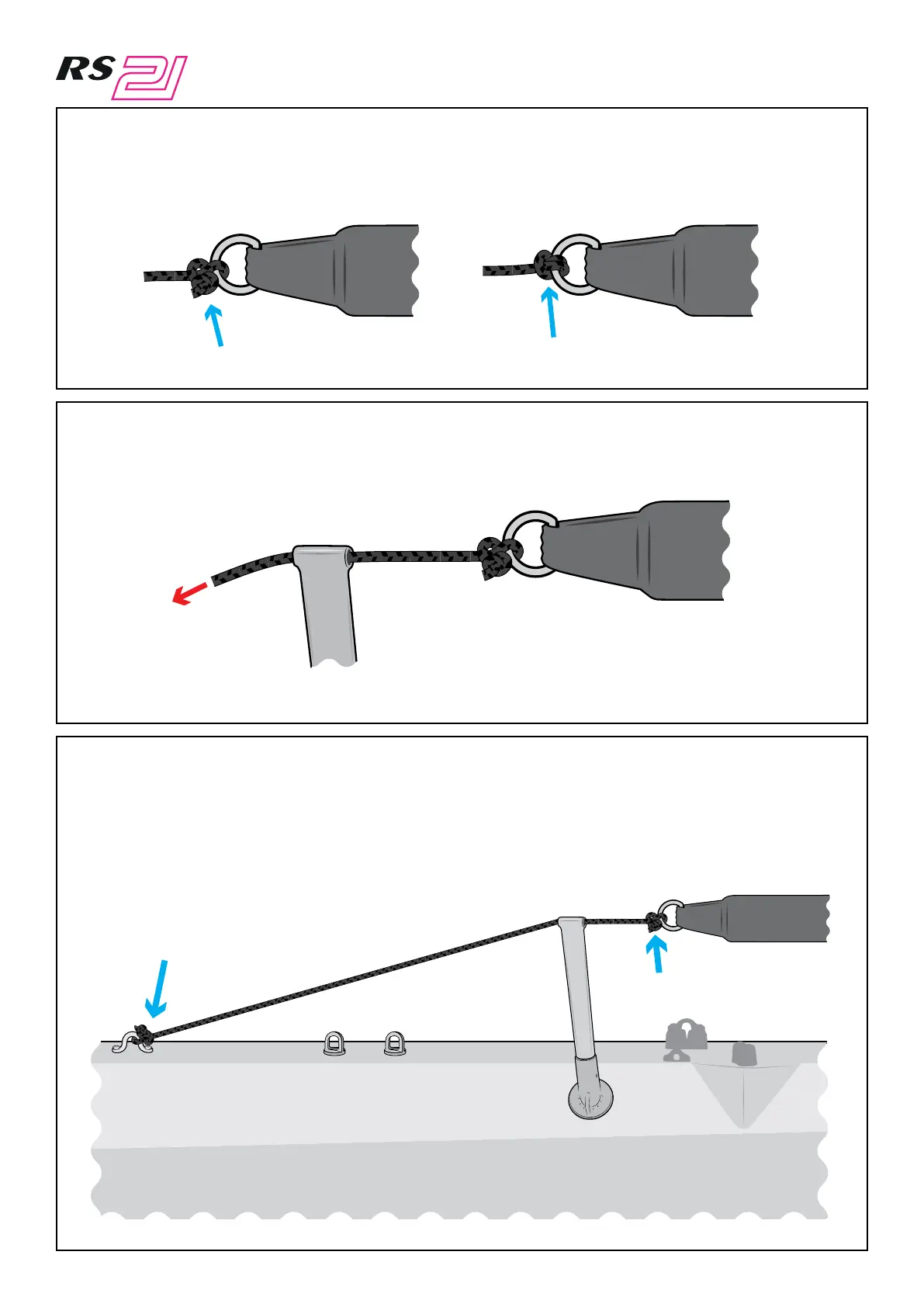

Attach the loose ends of the guard rail ties to the eyes on the gunwhale.
For the standard spec use knot #1.
4.1 - Stanchions and Guard Rails
e)
f)
g)
Pass the other ends of the guard rail ties through the hole in the top of the stanchions
(in a forward direction for the front stanchions and an aft direction for the aft
stanchions).
Attach the guard rail tie onto the D-ring at each end of the guard rail.
Standard spec.
Knot #1
Knot #1
Standard spec. Race spec.
Knot #1
Knot #6
