range.
c．Manual range: 0.000mA 6.6mA range
00.00mA 66.00mA range
000.0mA 660.0mA range
00.00A 10.00A range（use 10A socket）
d. Select the range to enter current measurement
NOTE:
When only the figure "OL" is displayed, it indicates over range situation and the higher range has to
be selected.
When the value scale to be measured is unknown beforehand, set the range selector at the highest
position.
The maximum current of mA socket is 660mA, over-current will destroy the fuse, and will damage
the meter.
The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage
the operator.
D. AC Current Measuring (Only Manual range)

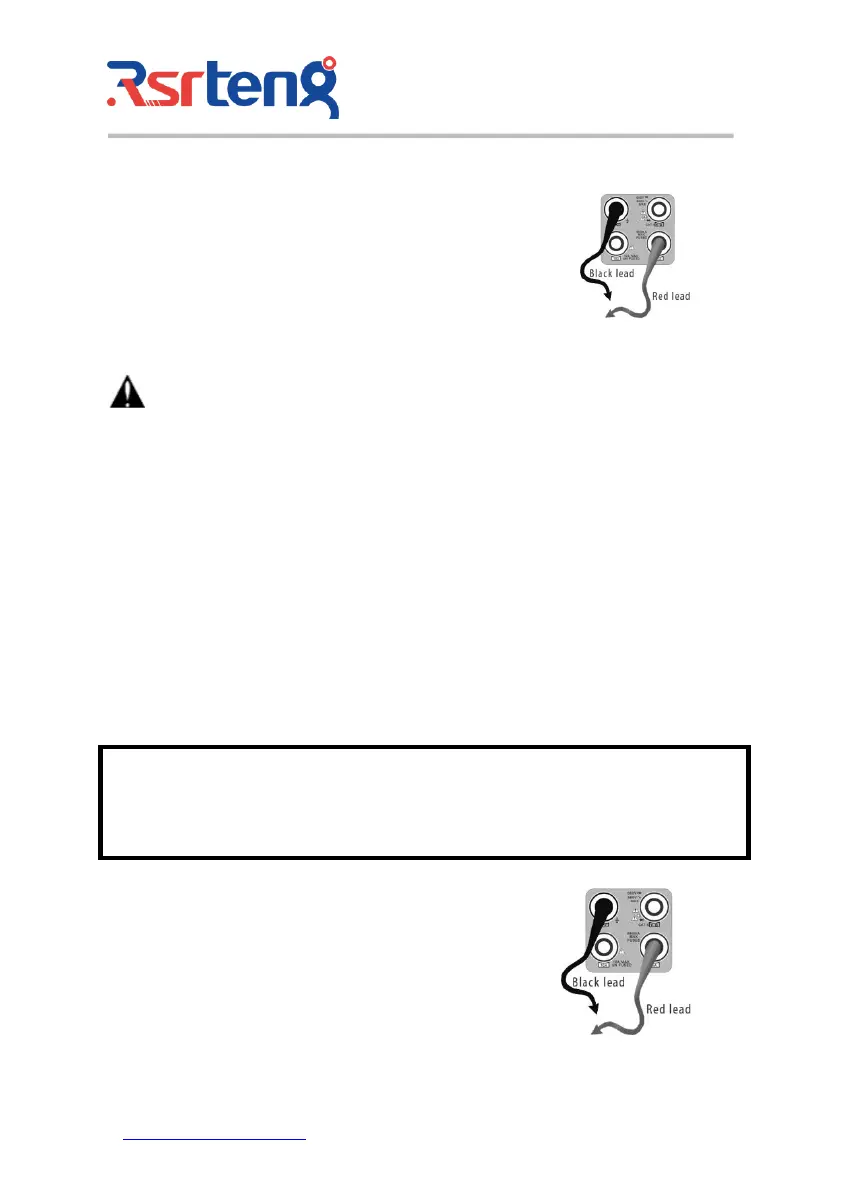

a. Connect the black test lead to the "COM" jack and the red test
lead to the"mA" jack for a maximum of 660mA current. For a
maximum of 10A, move the red lead to the 10A jack.
WARNING!
Shut down the power of the tested circuit, and then connect the meter with the circuit for
measurement.
