b. Select A
~
, enter the AC current measurement, manually select the range.
c. Manual range: 0.000mA 6.600mA range
00.00mA 66.00mA range
000.0mA 660.0mA range
00.00A 10.00A range（use 10A socket）
Note:
When only the figure "OL" is displayed, it indicates over range situation and the higher range has to
be selected.
When the value scale to be measured is unknown beforehand, set the range selector at the highest
position.
The maximum current of mA socket is 660mA; over-current will destroy the fuse, and will damage
the meter.
The maximum current of 10A socket is 10A, over-current will destroy the meter, and will damage
the operator.
In" AC " mode, only can input "AC ", if not, will damage the meter.
E. Resistance Measuring

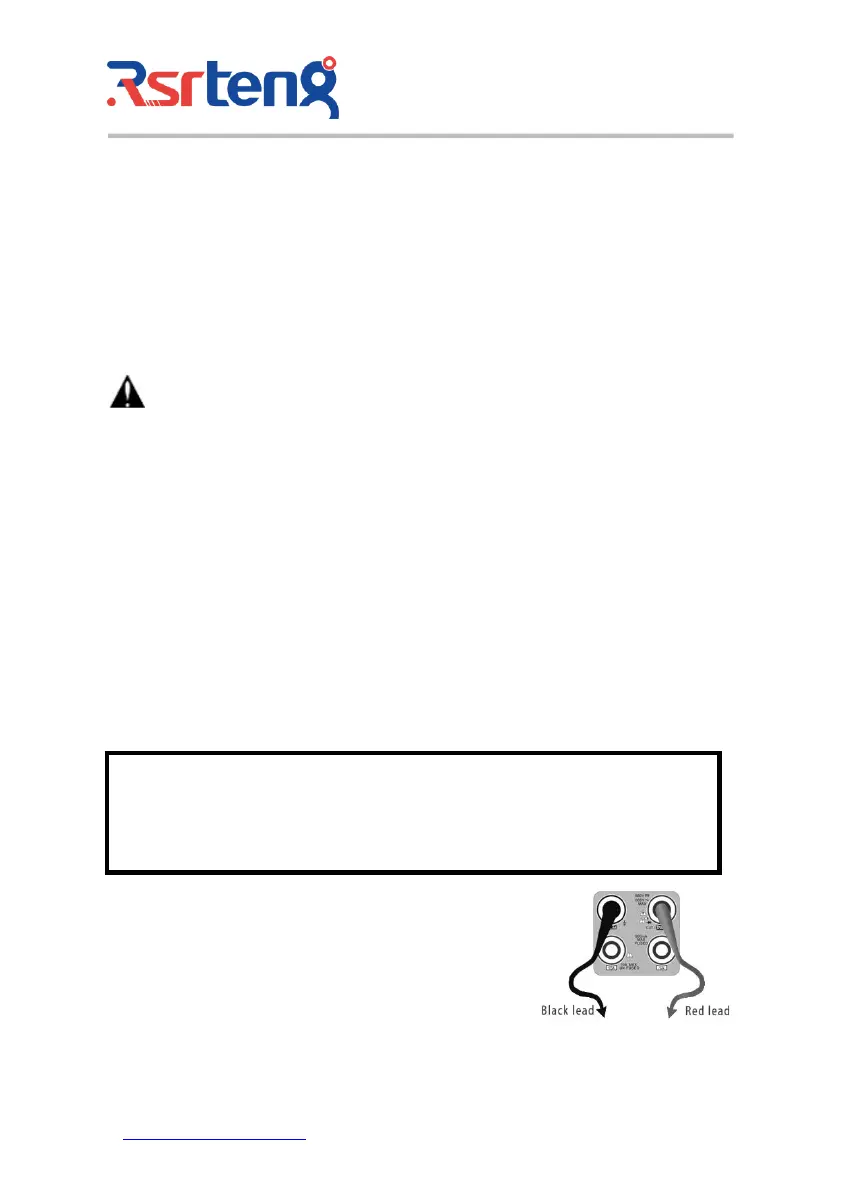

a. Connect the black test lead to the "COM " jack and the red test
lead to the "V/Ω" jack.
b. Select Ω, enter the Ω measurement
the tester default Auto range status, Press the key manually select
range, press "NEAR" to restore "Auto range"
WARNING!
When measuring in-circuit resistance, be sure the circuit under test has all power removed and
that all capacitors have discharged fully.
