Default IP Address – 192.168.0.100
460 Gateway User Manual Page 15
3. Click on the Enabled? checkbox.

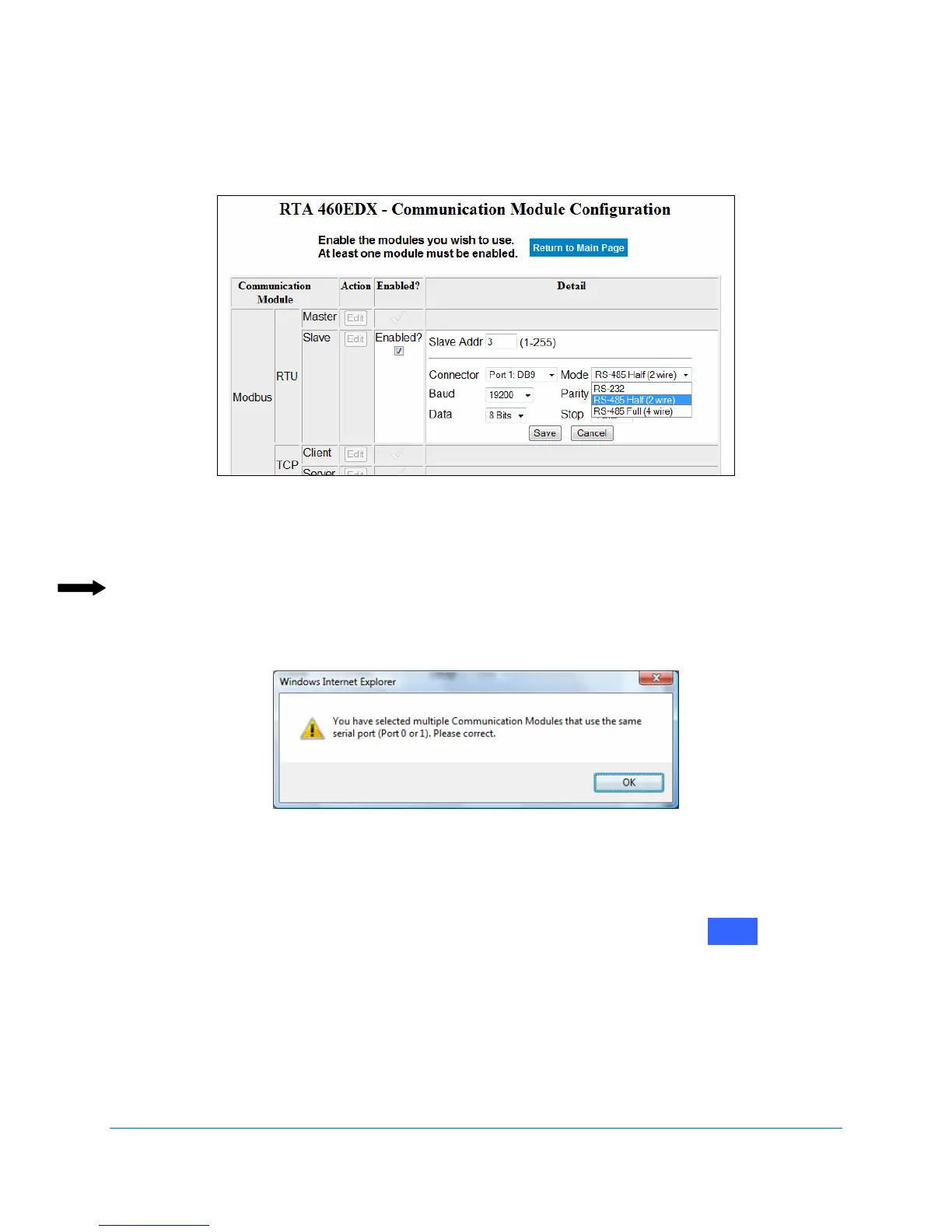

The Module’s Detail options expand when enabled. See Figure 2-14.
Figure 2-14 Modbus RTU Slave configuration details
4. Select the appropriate options from the drop-down menus.
Note: Only one RS232, RS485, or CAN port setting can be active per unit. For example, a
unit cannot have two ports set for RS232 or two ports set for CAN. If the same mode
is selected for two communication modules, a message similar to Figure 2-15
displays.
Figure 2-15 Serial port incompatibility error
5. Click on Save.
The selections stay visible on the
Communication Module Configuration screen, although
they are grayed out. See Figure 2-16. To change these settings, click on next to
Modbus RTU Slave again to make any necessary changes.
Edit
