T60-IO User Manual -5-
szruitech.com

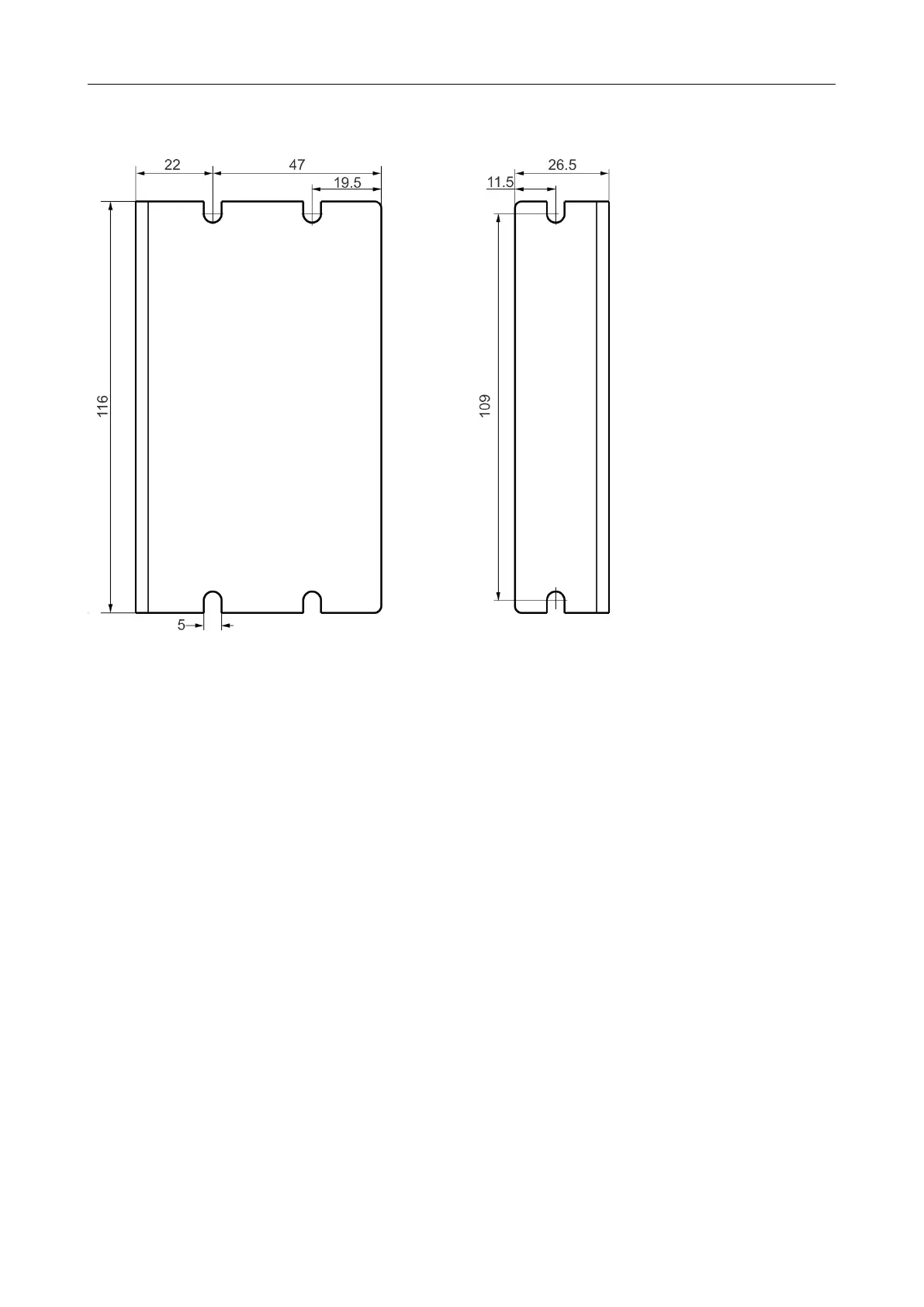

2.2 Driver installation dimensions
2.3 Driver installation requirements
Please install the driver vertically or horizontally, with its front facing forward, top facing upward to
facilitate cooling.
During assembly, avoid drillings and other foreign matters falling inside the driver.
During assembly, please use M3 screw to fix.
When there is vibration source (such as a driller) close to the installation position, please use a
vibrating absorber or a vibration resistant rubber gasket.
When multiple drivers are installed in the control cabinet, please pay attention to reserve enough
space for sufficient heat dissipation. If necessary, you can configure cooling fans to ensure good
heat dissipation conditions in the control cabinet.
