12V Trigger

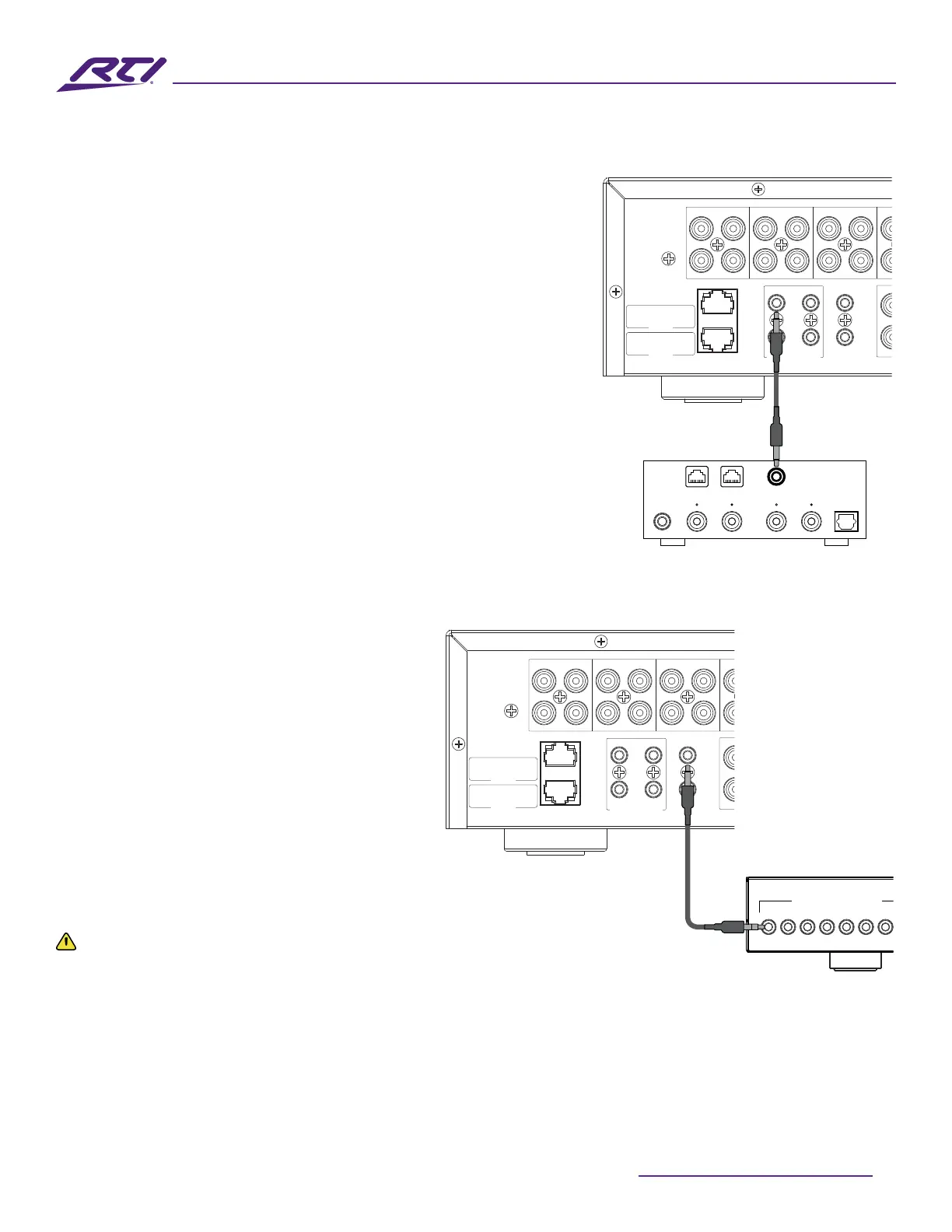

The AD-1616 matrix can trigger the power state of downstream
devices using the supplied dual 12V trigger ports. These ports
will apply 12V DC (12V DC via tip, ground via sleeve). via a 3.5mm
mono mini-jack when the matrix is powered on. Conversely, when
the matrix is in the o or standby state, 12V DC will no longer be
provided.
1. Connect the male connector on one end of a 3.5mm mono
mini-jack cable to one of the ports labeled “Trigger” on the
matrix. All 4 ports function simultaneously and can be used to
trigger control of up to 4 downstream devices that support 12V
DC triggering.
2. Connect the male connector on the opposite end of the 3.5mm
mono mini-jack cable to a downstream device that is capable
of supporting 12V triggering (12V DC via tip, ground via sleeve).
IR In & Out
The AD-1616 matrix can receive IR input
directly from an RTI processor or other 3rd
party IR control device. Additionally, any
received IR signals are relayed to the port
labeled “IR Out” for use with an additional
downstream matrix for concurrent control.
Direct connection to an RTI processor requires
the use of a specialized cable (not included)
that has a 3.5mm stereo mini-jack on one
end (connects to the processor) and a 3.5mm
mono mini-jack on the opposite end (Connects
to the matrix).
Please note that the RTI platform and
products utilize 12V IR signaling levels for
operation.
1. Connect the male mono connector (tip and sleeve) of the 3.5mm mono/stereo mini-jack cable to the
port labeled “IR In” on the matrix.
2. Connect the male stereo connector (tip, ring , and sleeve) on the opposite end of the 3.5mm mono/stereo
mini-jack cable to the IR out port on a compatible RTI processor or other compatible 3rd party IR device.
