2. Connect the RJ-45 connector (male) on the opposite end of the CAT-5e
or better patch cable to the RJ-45 (female) connector port on either an
active network switch/hub/router or a computer.

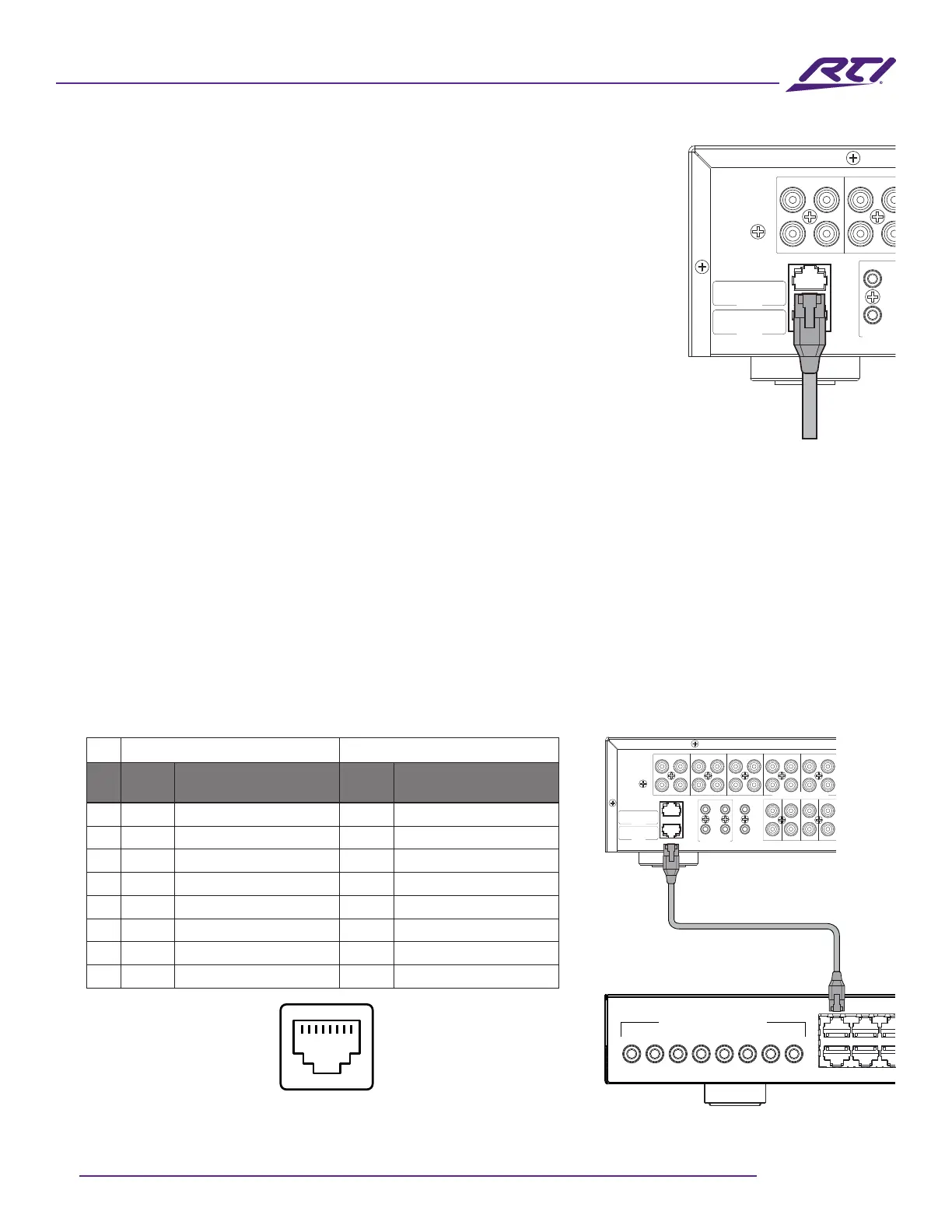

Serial Control
The AD-1616 matrix uses a proprietary RJ-45 port and wiring schema that is intended to be directly
connected/used with an appropriate companion port on an RTI processor. If using a 3rd party serial
device for control, please use the pin-out below for constructing a compatible cable for use in the desired
application to control this matrix using RS-232 serial communication.
1. Connect the RJ-45 connector (male) from one side of a CAT-5e or better patch cable to the RJ-45
(female) connector port labeled “RS232” on the matrix. Please ensure that the cable connector is fully
seated. RTI recommends the TIA-568B termination schema, however TIA-568A is also acceptable.
2. Connect the RJ-45 connector (male) on the opposite end of the CAT-5e or better patch cable to the
RJ-45 (female) connector port on a compatible RTI processor.
AD-1616 Pinout RTI XP Control Processor Pinout
Pin
Signal
Name
Signal Description
Signal
Name
Signal Description
1
2
3
4 GND Signal Ground/Common GND Signal Ground/Common
5 TXD Transmit Data RXD Receive Data
6 RXD Receive Data TXD Transmit Data
7
8
RJ-45 RS-232 Port
