Source Audio Inputs
The AD-1616 matrix can accept both analog and digital audio sources for matrixing to analog audio pre-
outs. The analog inputs have been designed for use with line-level audio sources. Digital inputs accept
mono or stereo LPCM signals with a resolution up to 24-bit 192kHz.
Analog Audio Inputs
The AD-1616 analog inputs feature connectivity via standard RCA style connectors. This matrix can
support both stereo and mono sources. Additionally, all analog audio inputs feature audio outputs that
mirror the input source signals for use with additional downstream matrix or other external equipment.

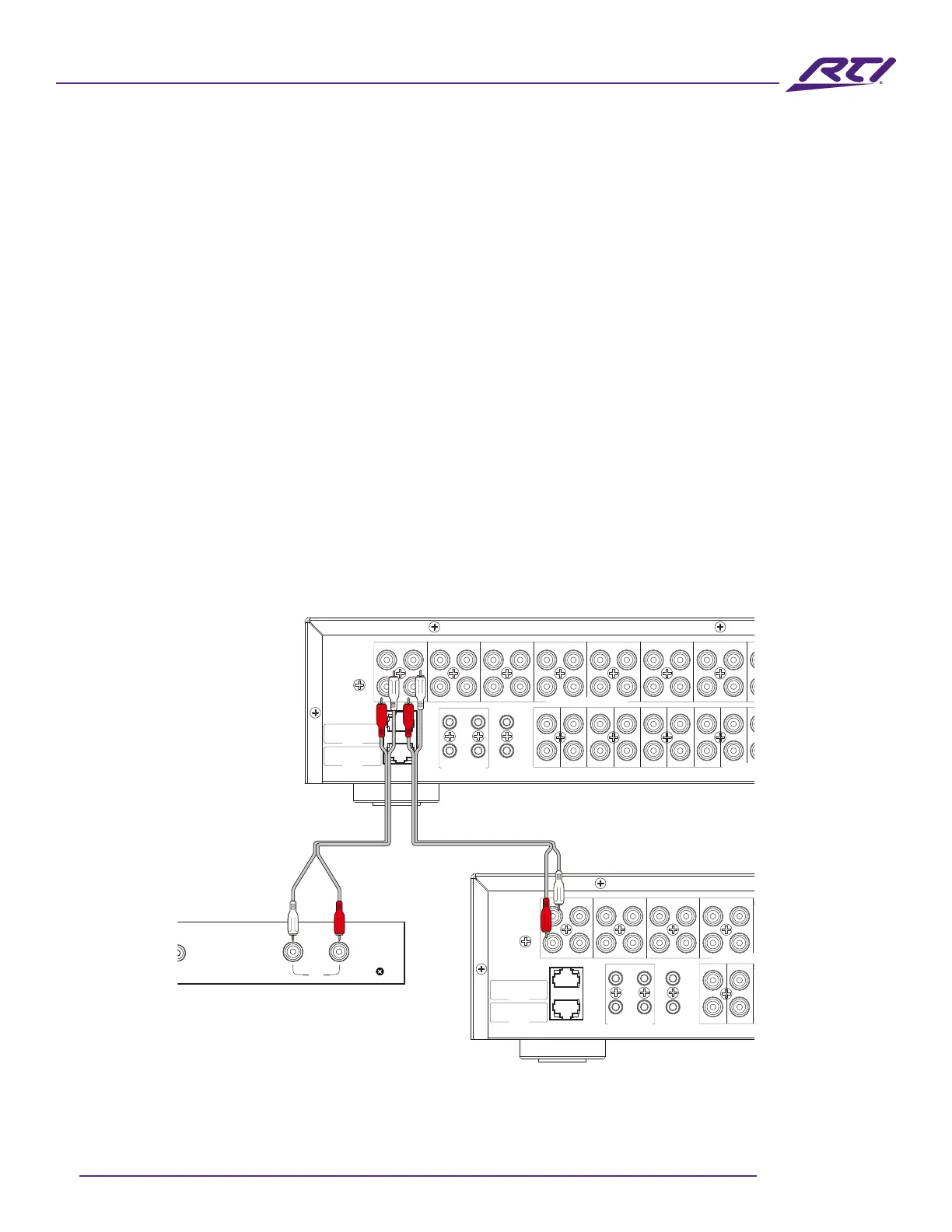

1. Connect either one (mono) or both (stereo) RCA male connectors from one end of an RCA mono/
stereo cable to the RCA input connectors (1-8) on the matrix.
2. Connect the audio connectors (e.g. RCA, stereo mini-jack, etc.) on the opposite end of the RCA cable to
an appropriate line-level audio source.
3. Optionally, connect either one (mono) or both (stereo) RCA male connectors from one end of an RCA
mono/stereo cable to the RCA output connectors (1-16) on the matrix to the analog audio inputs on a
downstream AD-1616 matrix using steps 1 and 2 above.
