AUDIO DISTRIBUTION
Technical Support: support@rticontrol.com - Customer Service: custserv@rticontrol.com 8
Connections
The AD-1616 is equipped with connectivity that supports both analog and digital audio sources. Outputs
are presented as RCA style stereo connectors. Peripheral data ports for various means of control are also
present, such as RS-232 and RJ-45. Please see below for proper connection instructions.
Please note that all connections, sources, outputs, or data cables, should be made when the matrix
is not powered as doing so may cause damage/harm to either the matrix, outputs, or the installer.
Please ensure that power is not on, or power is not connected to the matrix before proceeding to add
or remove any connections to the matrix.

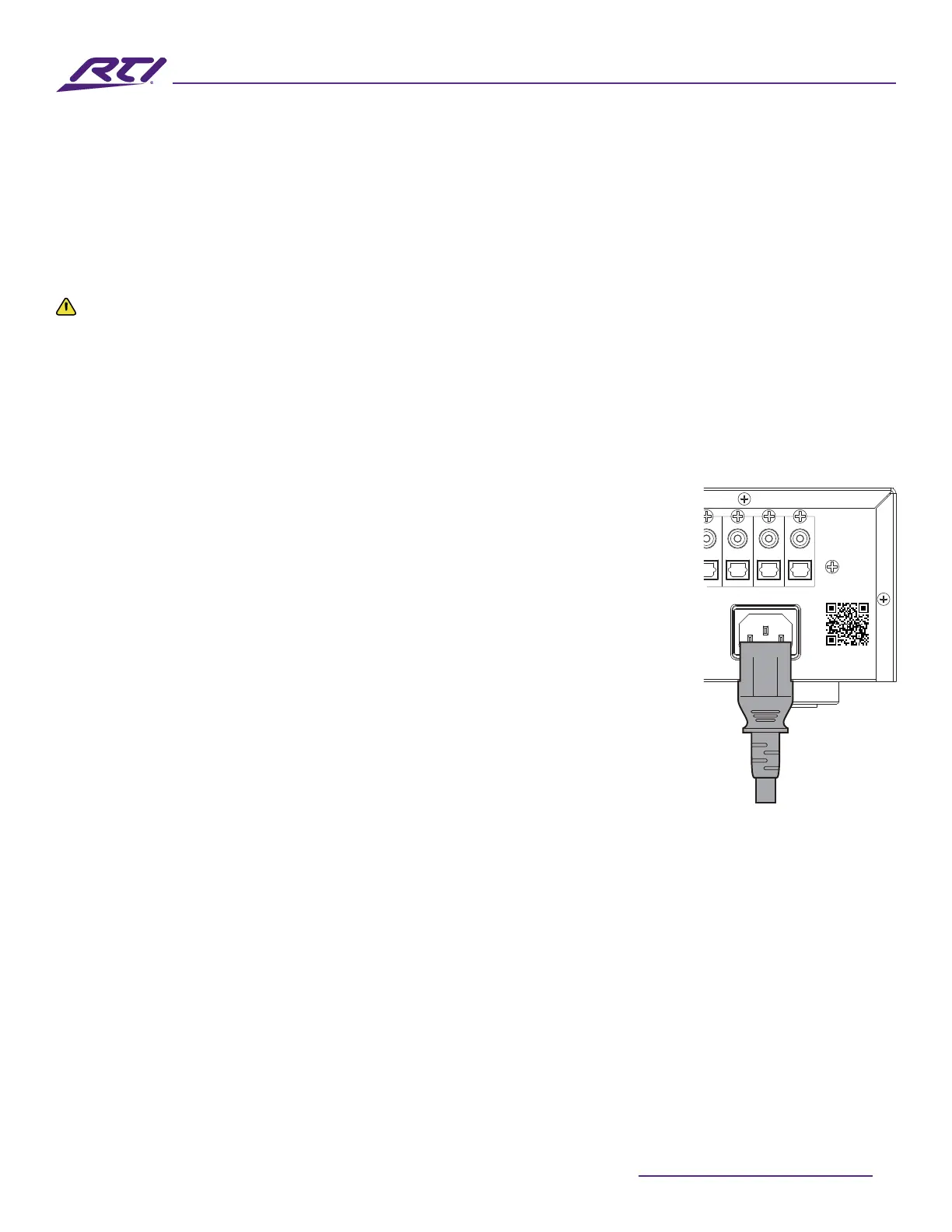

Power
Power is supplied to the AD-1616 (Type C14 male) directly via an AC power
mains outlet using the included IEC power cable. An appropriate region-
specic IEC power cable (Type C13 female to US/UK/EU/AU) is included with
each matrix. This product is capable of operating between 100-240V in both
50/60Hz regions.
1. Connect the included IEC power cable (Type C13 female) to the matrix’s
power input (Type C14 male).
2. Connect the region-specic power plug to a main’s AC power outlet.
Please ensure that this matrix is connected to an AC outlet that can
supply the rated power draw (20W).
Control Interfaces
The AD-1616 is equipped with various control interfaces that allow external control of the matrix. The
connections include IR, RS-232, and 12V trigger ports. Cables for these connections are not supplied and
will need to be sourced by the installer.
Ethernet Control
The AD-1616 can be controlled via TCP/IP using built-in API commands. Please see the API appendix for a
list of commands that are applicable to these products.
1. Connect the RJ-45 connector (male) from one side of a CAT-5e or better patch cable to the RJ-45
(female) connector port labeled “Ethernet” on the matrix. Please ensure that the cable connector is
fully seated. RTI recommends the TIA-568B termination schema, however TIA-568A is also acceptable.
Power
Cable
AC INPUT:100-240V~,50/60Hz 20W
PRODUCT
INFO
IN IN IN
14
1615
