It’s Under Control
®
CHAPTER 4 | CONNECTION OPTIONS
ETHERNET
This RJ-45 port allows connection to a 10/100 Base-T Ethernet network
(LAN). Network settings such as the IP address are congurable within
Integration Designer™. Ethernet can be used to download system les to
the XP-8.
USB PORTS (REAR)
These are host ports for external devices and are intended for future use.
RTI COM
This RJ-45 port allows connection to a Zigbee transceiver module. The
connection supports full duplex two-way communication for use with
compatible RTI handheld controllers. Refer to the Zigbee transceiver
module operation guide for installation instructions.
EXPANSION PORT
This RJ-45 port provides a convenient connection for receiving IR signals
from in-wall touchpanels through a CB-4 connecting block. It also enables
two-way serial communication (RS-485) with in-wall touchpanels or
expansion devices such as the RCM-12 (Relay Control Module).

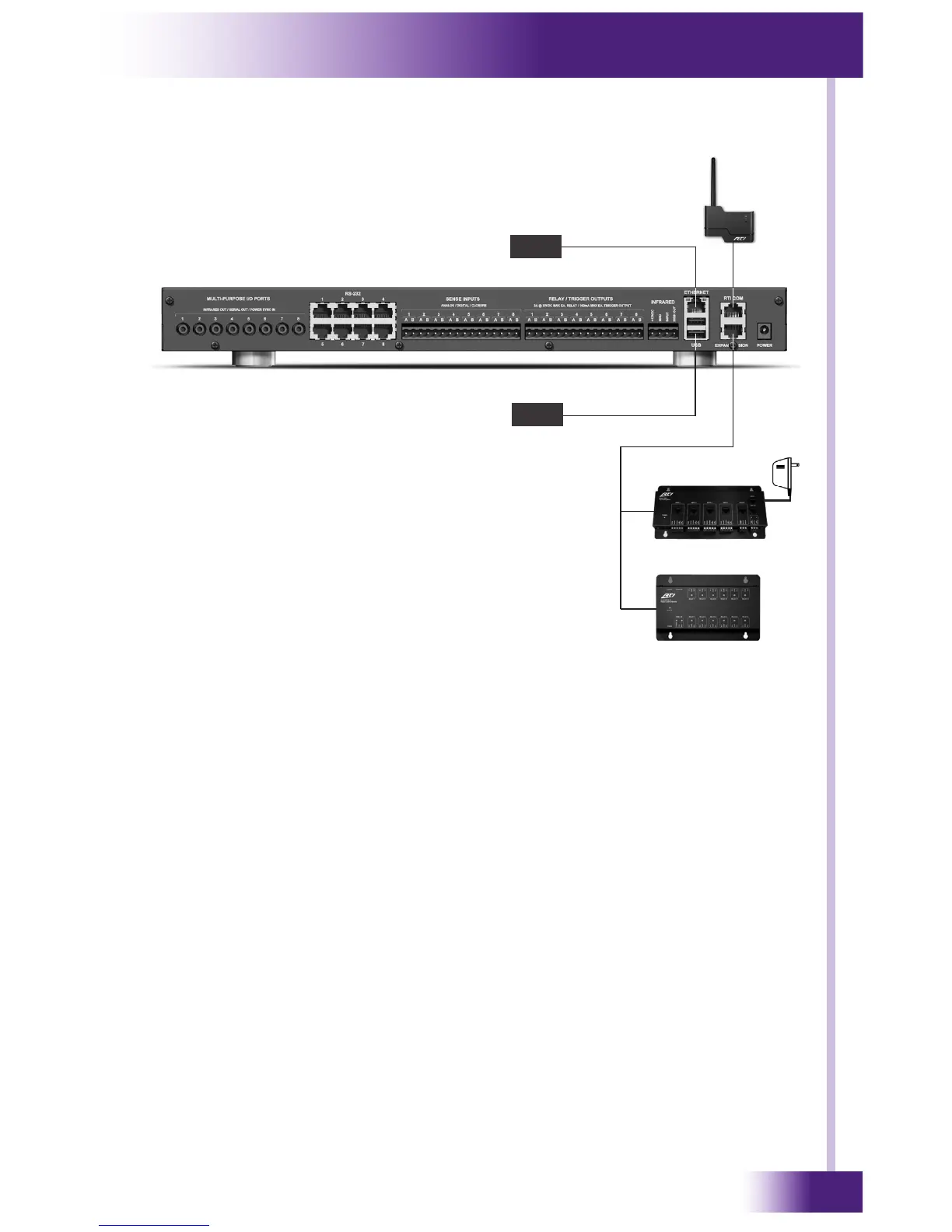

ETHERNET, USB, RTI COM, EXPANSION PORT
Zigbee Module
Examples:
(Future Use)
RCM-12
CB-4
cat5
LAN
USB
Power
Supply
Optional accessories shown
are sold separately.
